Ricoh A229 - Page 333

SCANNER UNIT
A229 5-22 SM

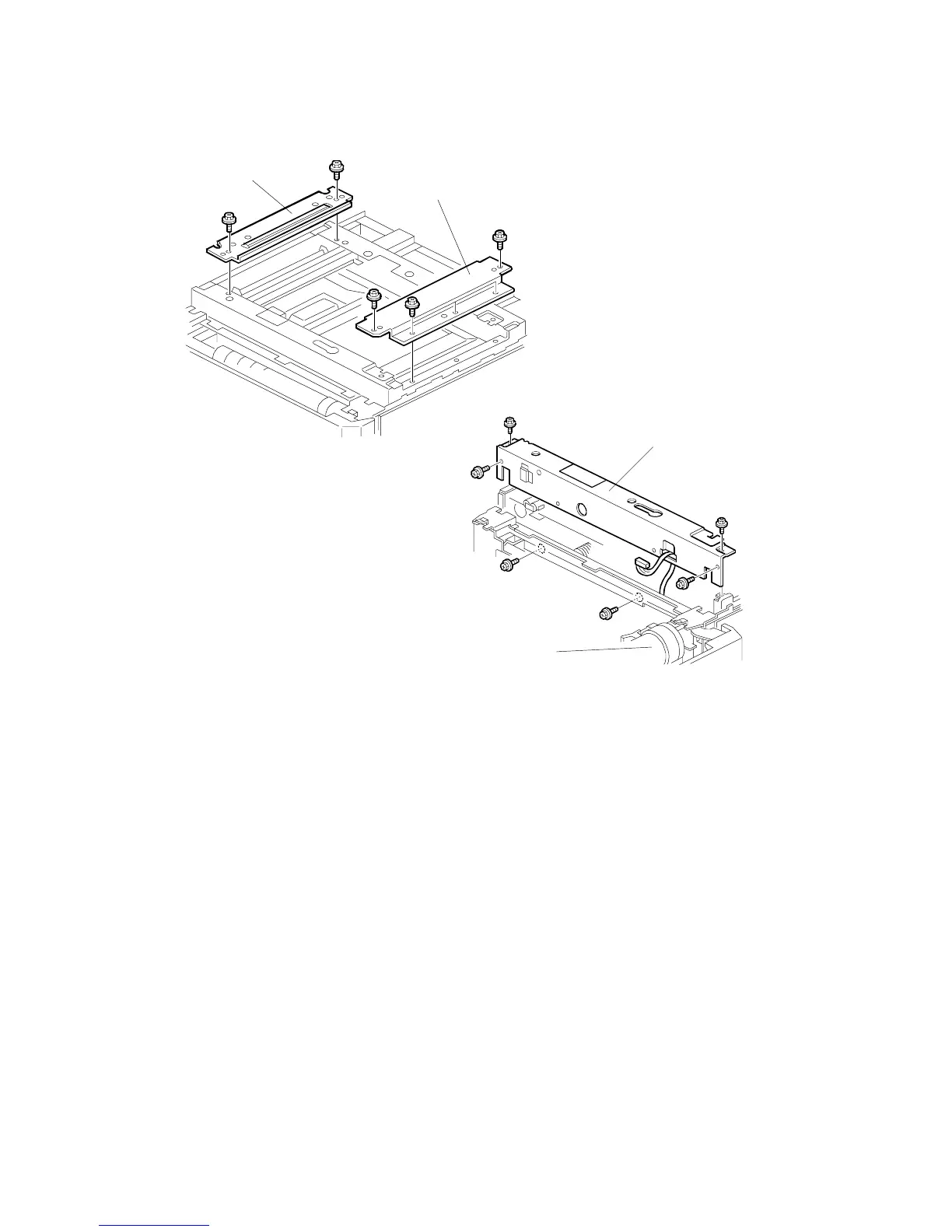

3. Remove the left upper stay [A] (2 screws).
4. Remove the right upper stay [B] (3 screws).
5. Remove the shutter inner cover (see Development Unit) and swing out the
toner bottle holder [C].
6. Remove the front frame [D] (6 screws).
A229R681.WMF
A229R682.WMF
[A]
[B]
[C]
[D]
