SCANNER UNIT
SM 5-23 A229
Replacement
and
Adjustmen
t

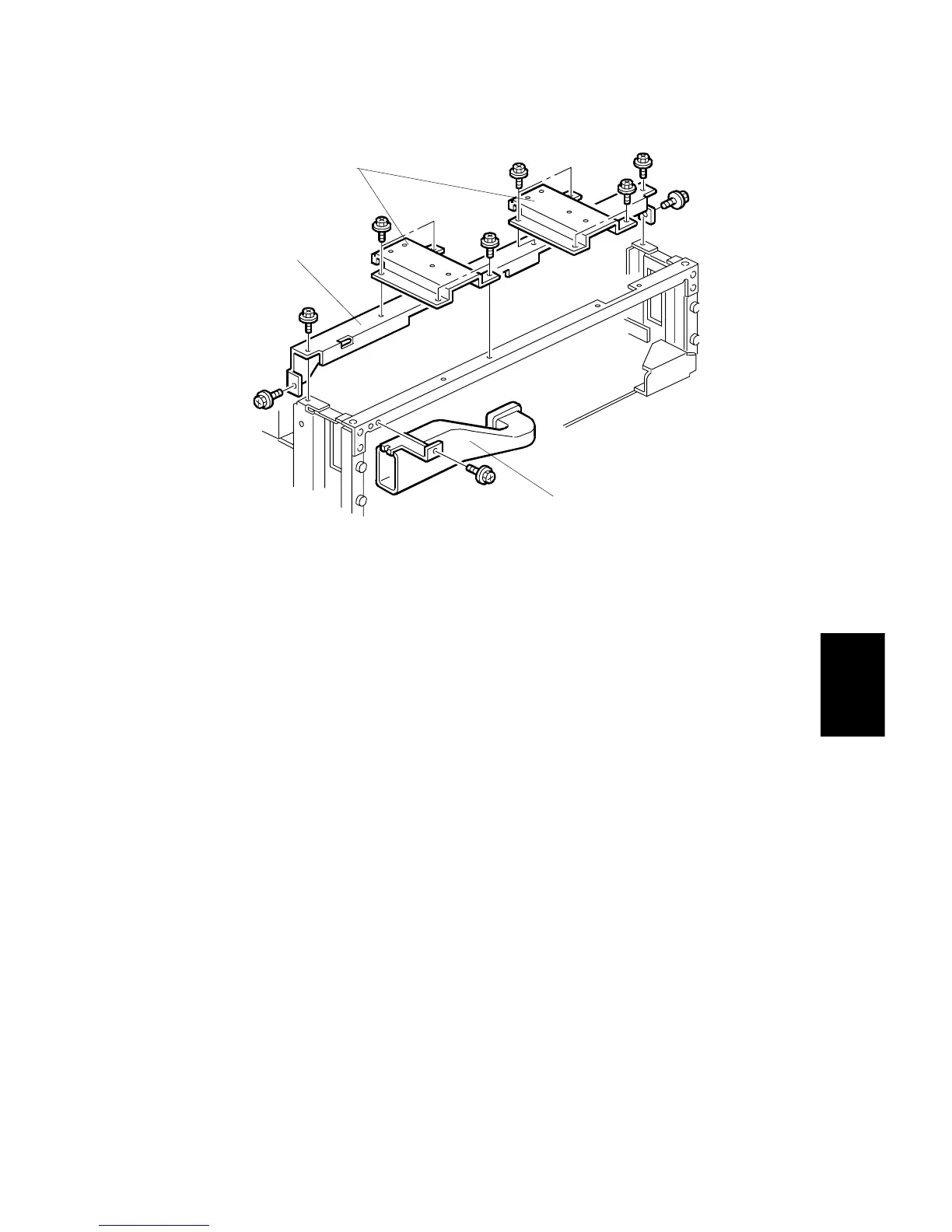

7. Remove the ARDF support brackets [A] (4 screws each).
8. Remove the scanner upper frame [B] (4 screws).
9. Remove the fan duct [C] (1 screw).
A229R683.WMF
[A]
[B]
[C]
