TRAY LIFT MECHANISM
A229 8-8 SM

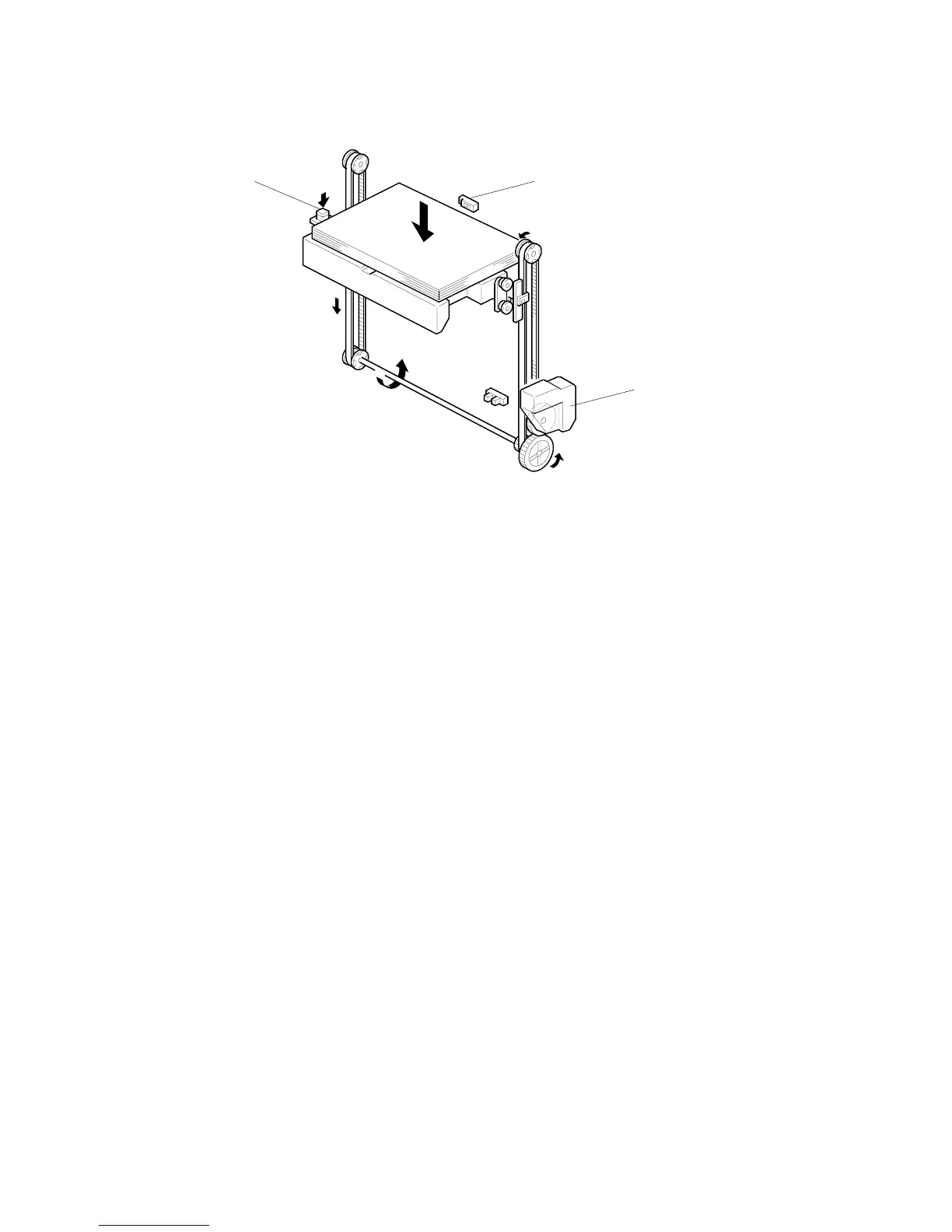

If the down switch [A] is pressed, or paper runs out, or a paper jam occurs in the
LCT, the LCT motor [B] lowers the bottom plate until the paper position sensor [C]
activates. At this point, the bottom plate (or the top sheet of paper) is positioned
about 5 cm below the paper feed height. This gives enough space for the user to
add about 500 sheets of paper.
If the down switch is then pressed again, the bottom plate moves down once again
until the top sheet of paper just passes the paper position sensor. In this way, the
bottom plate lowers 5 cm at each press of the down switch. This allows the
customer to replenish paper in convenient amounts and at the same position.
A698D108.WMF
[A]
[B]
[C]
Rev. 12/15/98
