SERVICE PROGRAM MODE

4-6

A229 SM

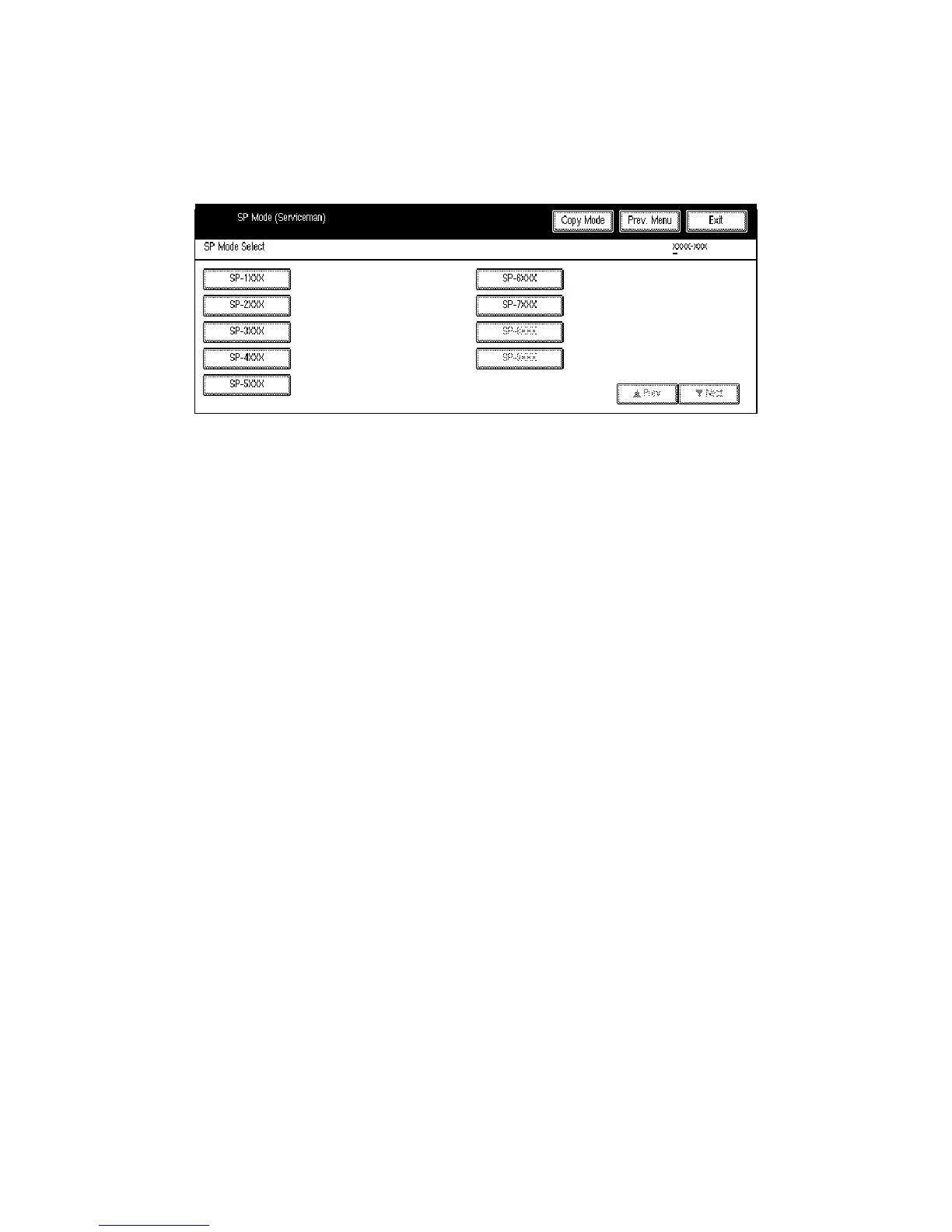

3) Touch the application which you need. Then, the application’s SP mode

display will appear, as shown.

Exiting SP mode

1) Touch the “Exit” keys to return to the standby mode display.

A229M501.TIF
