TRANSFER BELT UNIT
A229 5-56 SM

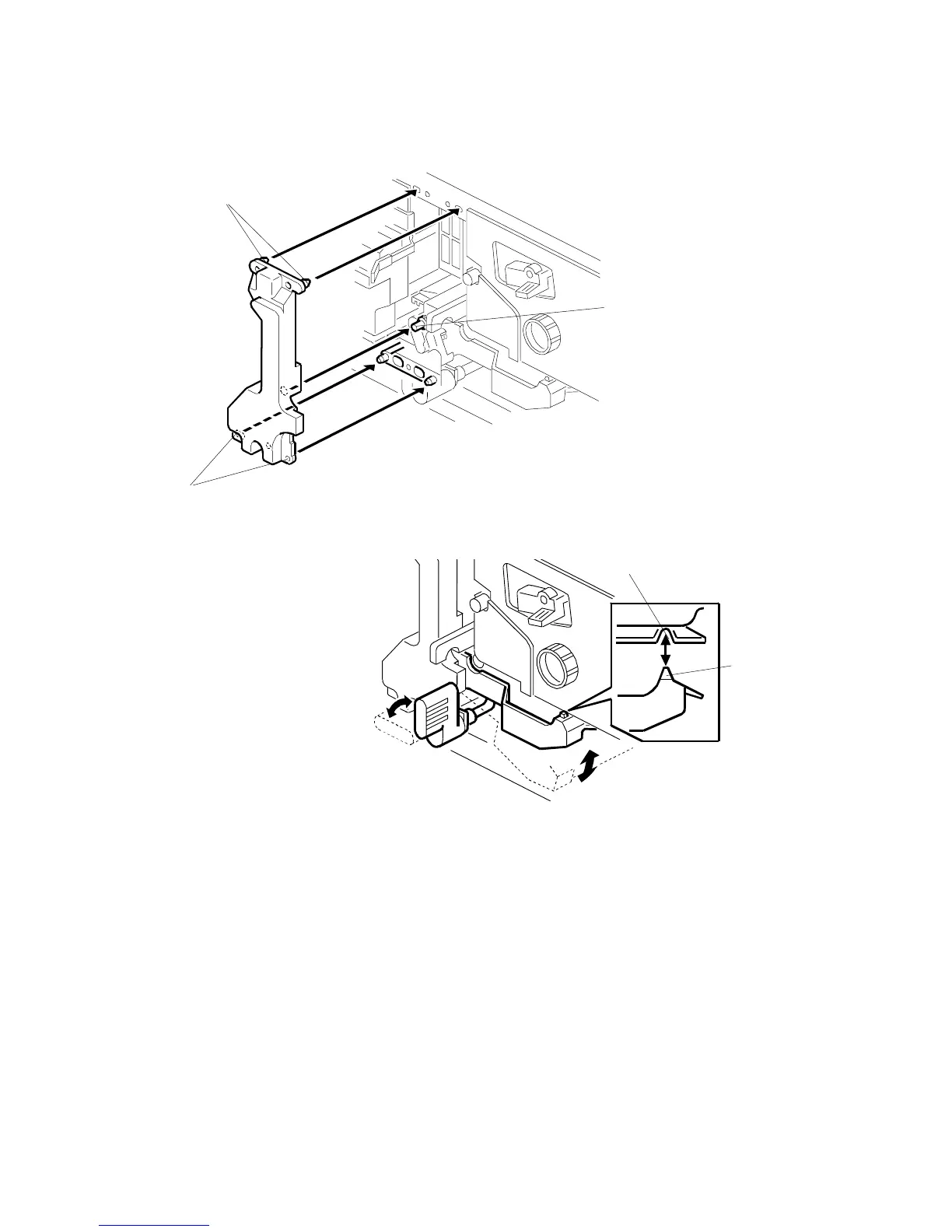

2. Attach the transfer belt unit prop (3 screws).
NOTE:
To attach the transfer belt unit prop easily, set the following in order:
lower pins [A], drive roller shaft [B], upper pins [C].
3. After installation, check the following points:
1) The transfer belt unit must move up and down smoothly
2) Part [D] of the transfer belt unit must be behind the drum stay,
3) Part [D] of the transfer belt unit must be set in the indent [E] in the drum unit
casing.
A229R519.WMF
A229R520.WMF
[D]
[E]
[A]
[C]
[B]
