PAPER FEED
SM 5-65 A229
Replacement
and
Adjustmen
t

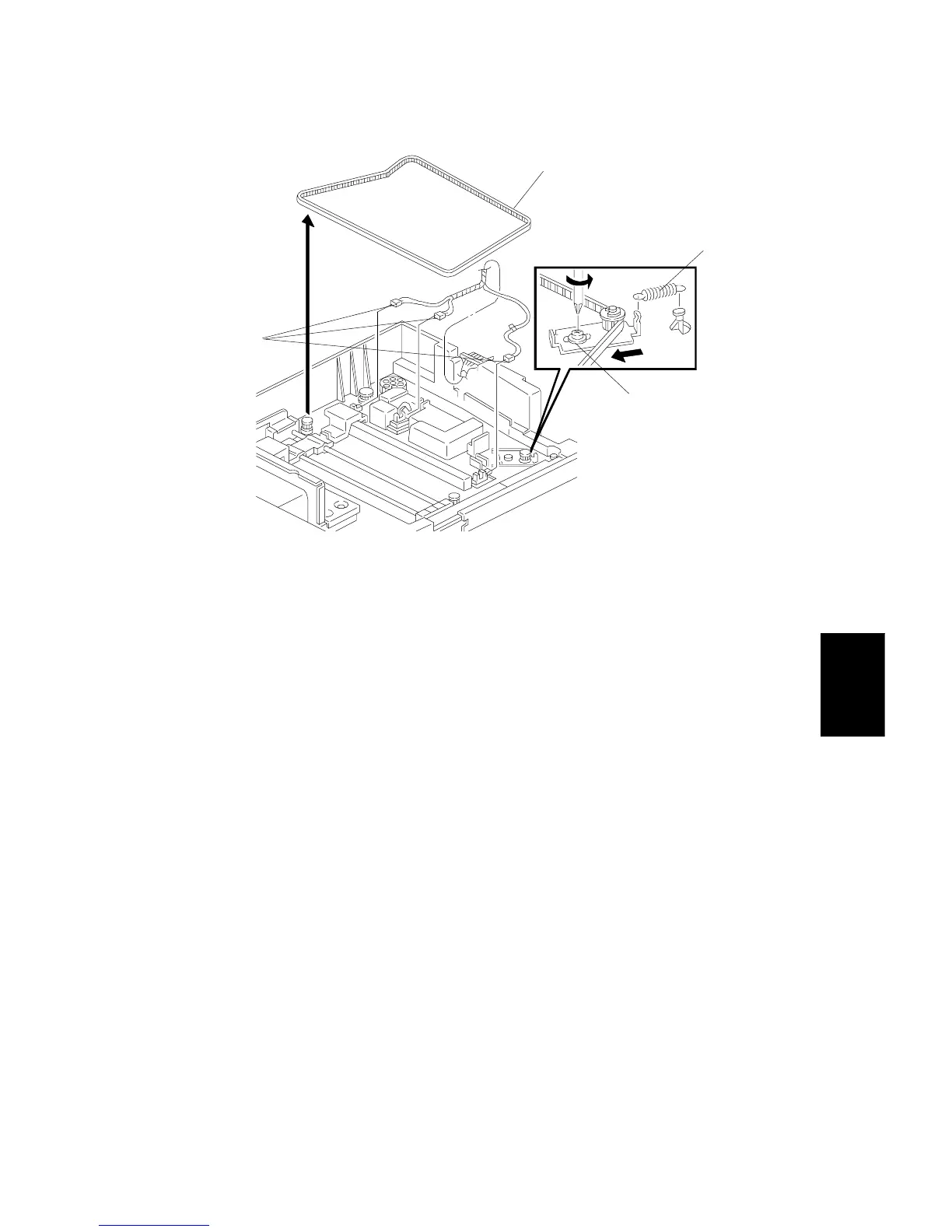

7. Disconnect the three connectors [A].
8. Loosen the screw [B] and unhook the spring [C].
9. Remove the timing belt [D].
NOTE:
When installing the timing belt, hook the spring [C] first, then tighten the
screw [B].
A229R601.WMF
[B]
[C]
[D]
[A]
