PAPER FEED
SM 5-71 A229
Replacement
and
Adjustmen
t

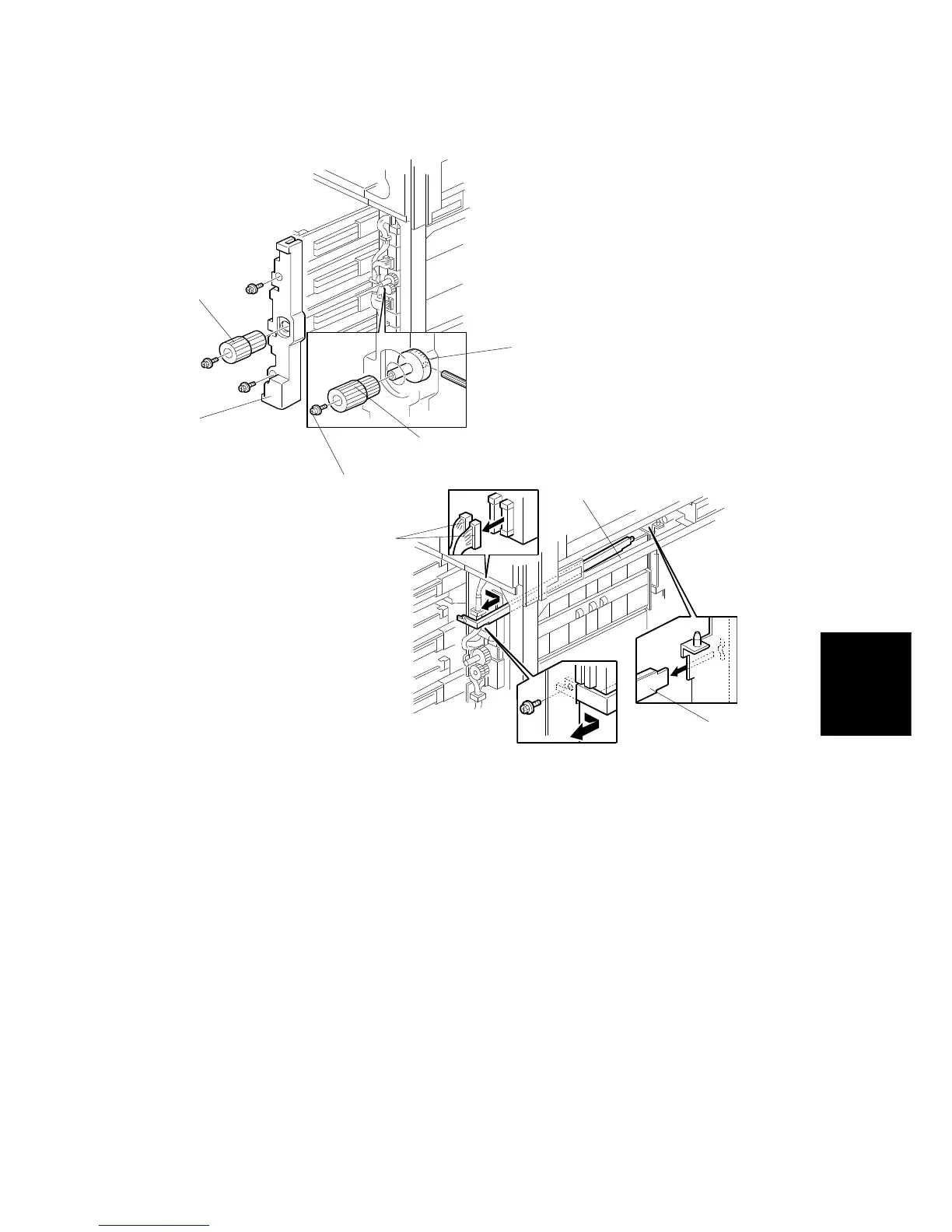

5. Remove the knob [C] (1 Screw).
6. Pull out all paper trays, then remove the paper tray unit inner cover [D] (2
screws).
7. Remove the two connectors [E].
8. Remove the support bracket [F] (1 screw).
NOTE:
The support bracket is used only for the first feed station.
