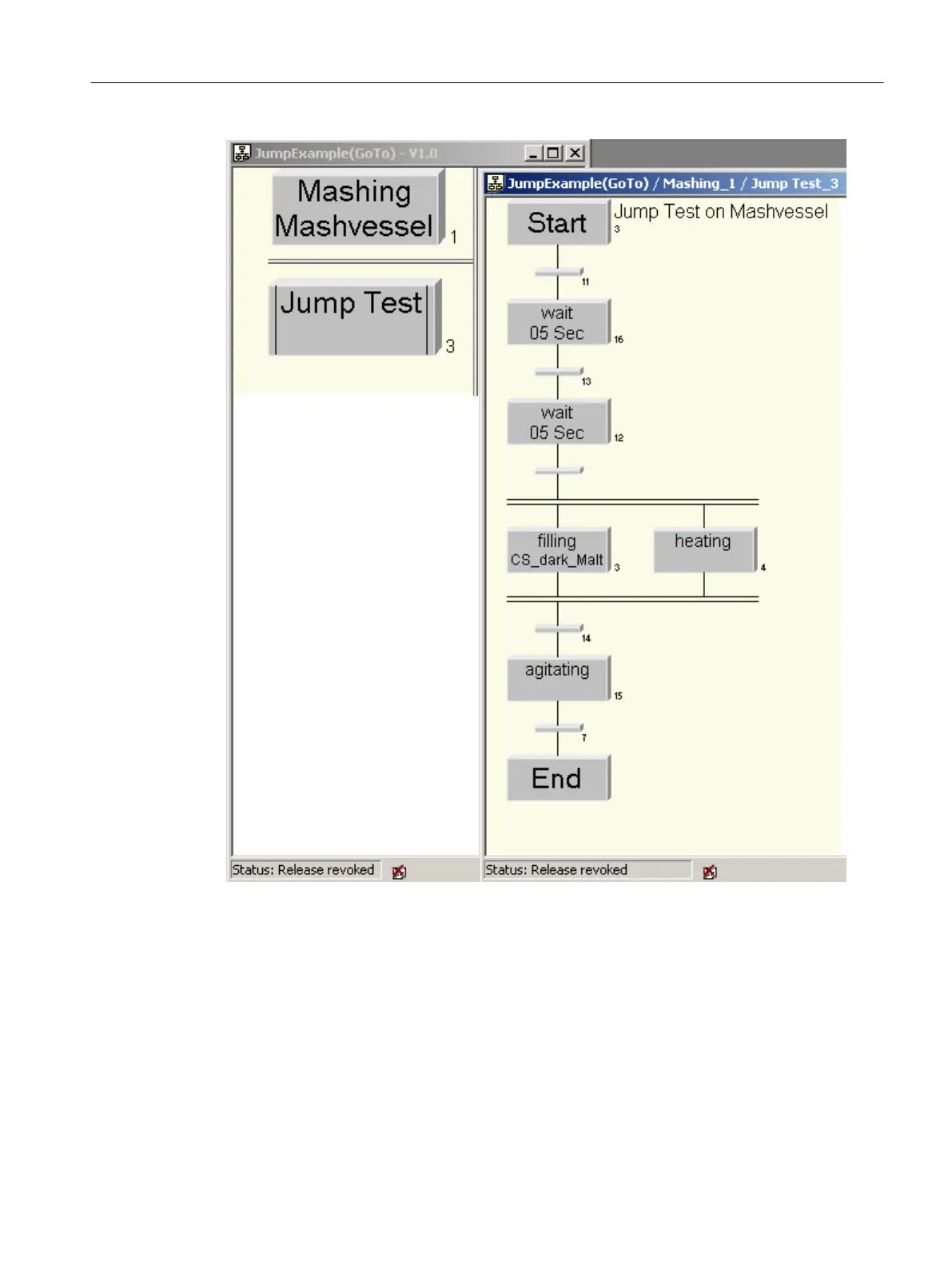

Image 10-10 Initial recipe
Logic implemented by the "Jump" recipe element
The recipe shown above contains no jumps and is executed sequentially or from left to right.
The purpose of inserting jumps in the "Jump Test" ROP is to implement a recipe for heating
the mash vessel based on 4 parameters (JumpTest1 to 4) using the following logic:
1. If the "JumpTest1" parameter is true, then the recipe should continue to run without delay.
2. If the "JumpTest2" parameter is true, then the recipe should skip the subsequent "filling"
and "heating" recipe steps and immediately continue with the "agitating" recipe step.
BATCH Recipe Editor
10.4 Creating recipes
SIMATIC BATCH V8.2
Operating Manual, 02/2016, A5E35958174-AA 551
