G4PB8 MOUNTING RACK
G4 Digital I/O Family Data Book 7
G4PB8 Mounting Rack
Description
The G4PB8 I/O mounting rack accommodates up to
eight G4 digital I/O modules.
Barrier strips with screw terminals provide the field
and mounting rack power connections. A header
connector accepts a standard 50-pin cable for logic
connections. This rack is compatible with the
G4AC5 computer interface. (See page 51.)
Specifications

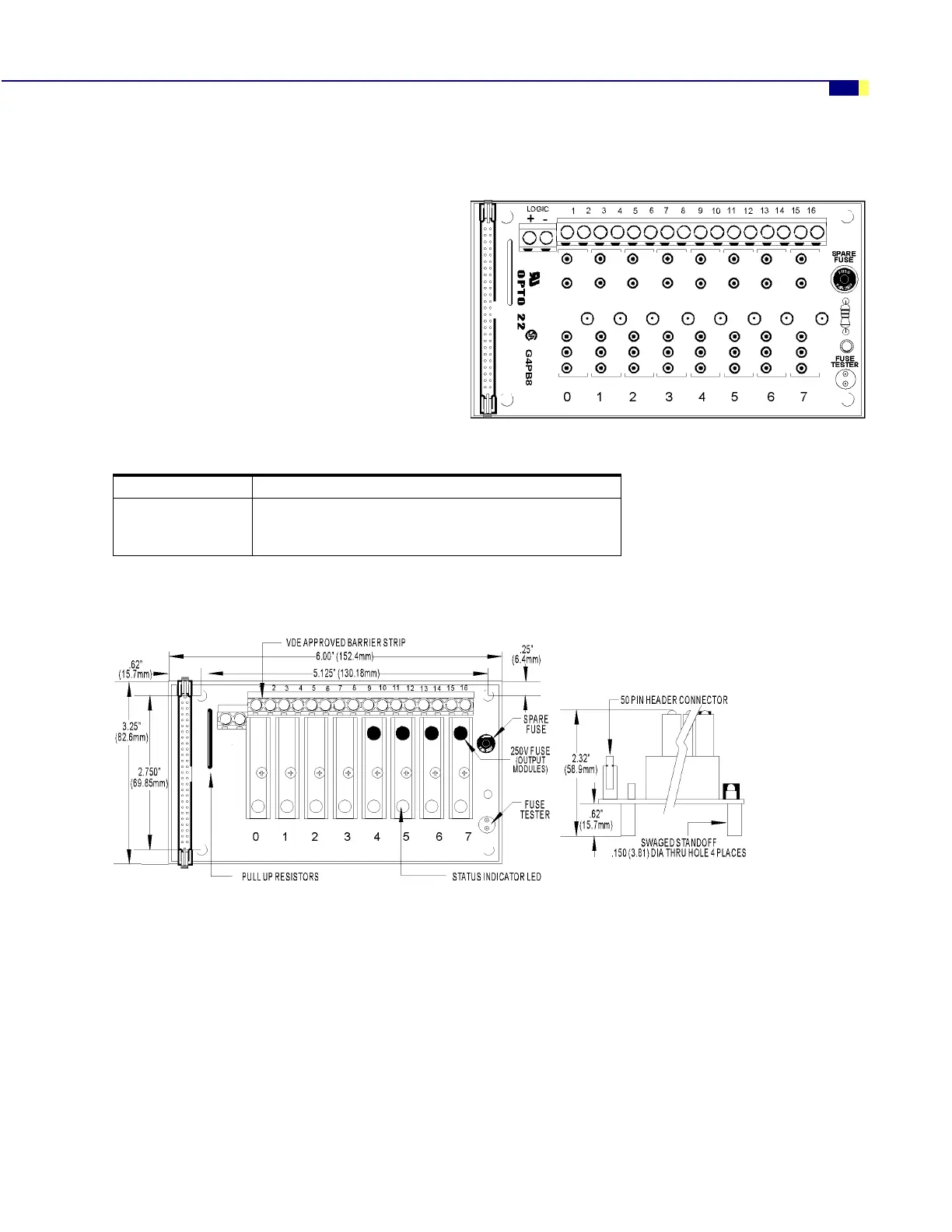

Dimensions
2SHUDWLQJ WHPSHUDWXUH í WR æí
°
&
,QWHUIDFH FRQQHFWRUV
)LHOGã
&RQWUROã
6FUHZðW\SH EDUULHU VWULS DFFRPPRGDWHV XS WR ìí $:* ZLUH
èíðSLQ KHDGHU FRQQHFWRU
