G4 Family Data Book 57
$SSHQGL[ %

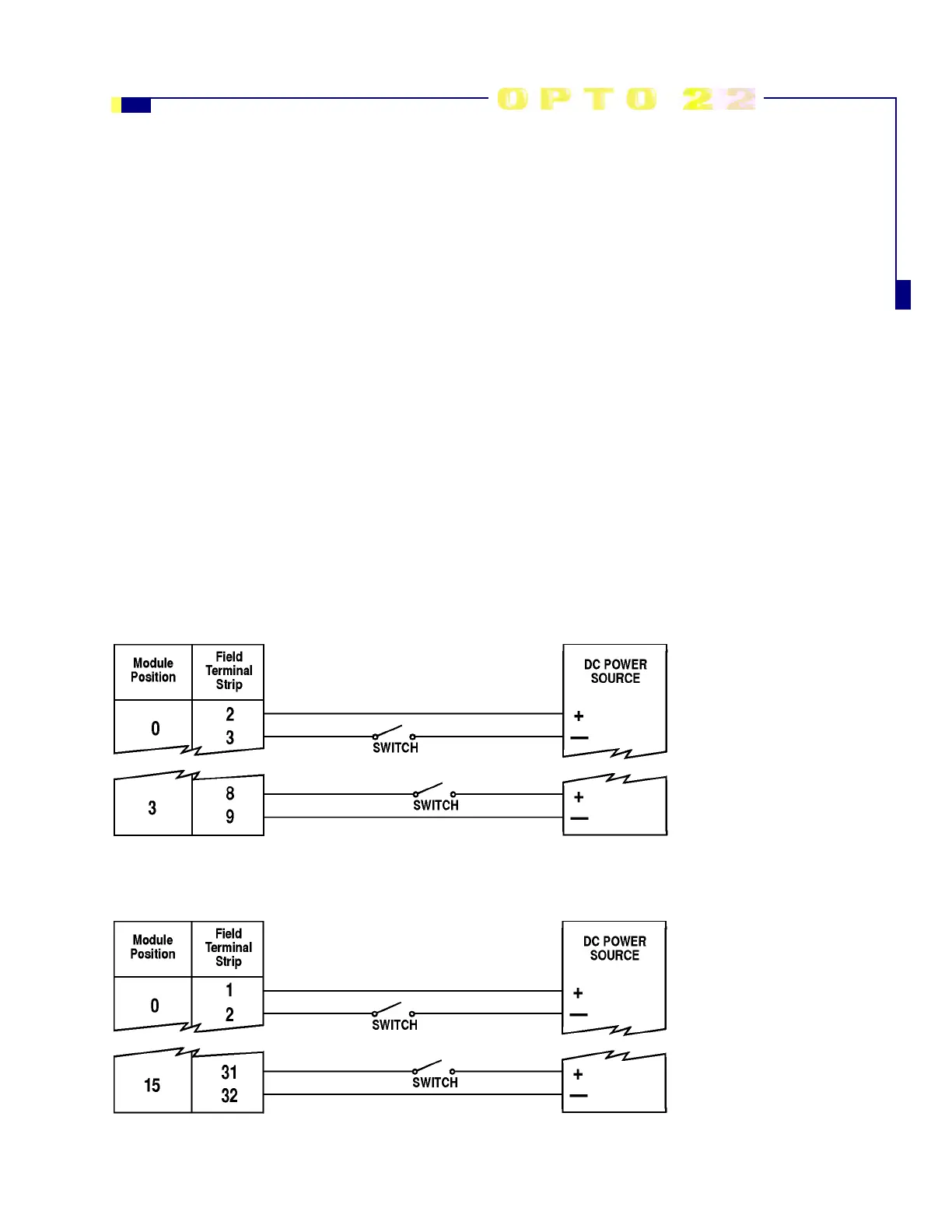

Appendix B: Wiring Diagrams
Input Modules Using DC Field Voltages
2Q )RXU03RVLWLRQ 0RXQWLQJ 5DFNV +*73%7 DQG *73%75,
2Q $OO 2WKHU 0RXQWLQJ 5DFNV
Use the diagrams on this page for the following modules:
G4IDC5
G4IDC5B
G4IDC5D
G4IDC5G
G4IDC5K
G4IDC5MA
G4IAC5
G4IAC5A
G4IC5MA
NOTE: The AC input modules listed at left will work with
either AC or DC field voltages. If you are using them with AC
voltages, see page 58. If you are using them with DC field
voltages, follow the diagrams on this page
ï
To Next Page
