INPUT MODULES USING AC FIELD VOLTAGES
58 G4 Family Data Book
Input Modules Using AC Field Voltages
2Q )RXU03RVLWLRQ 0RXQWLQJ 5DFNV +*73%7 DQG *73%75,
2Q $OO 2WKHU 0RXQWLQJ 5DFNV

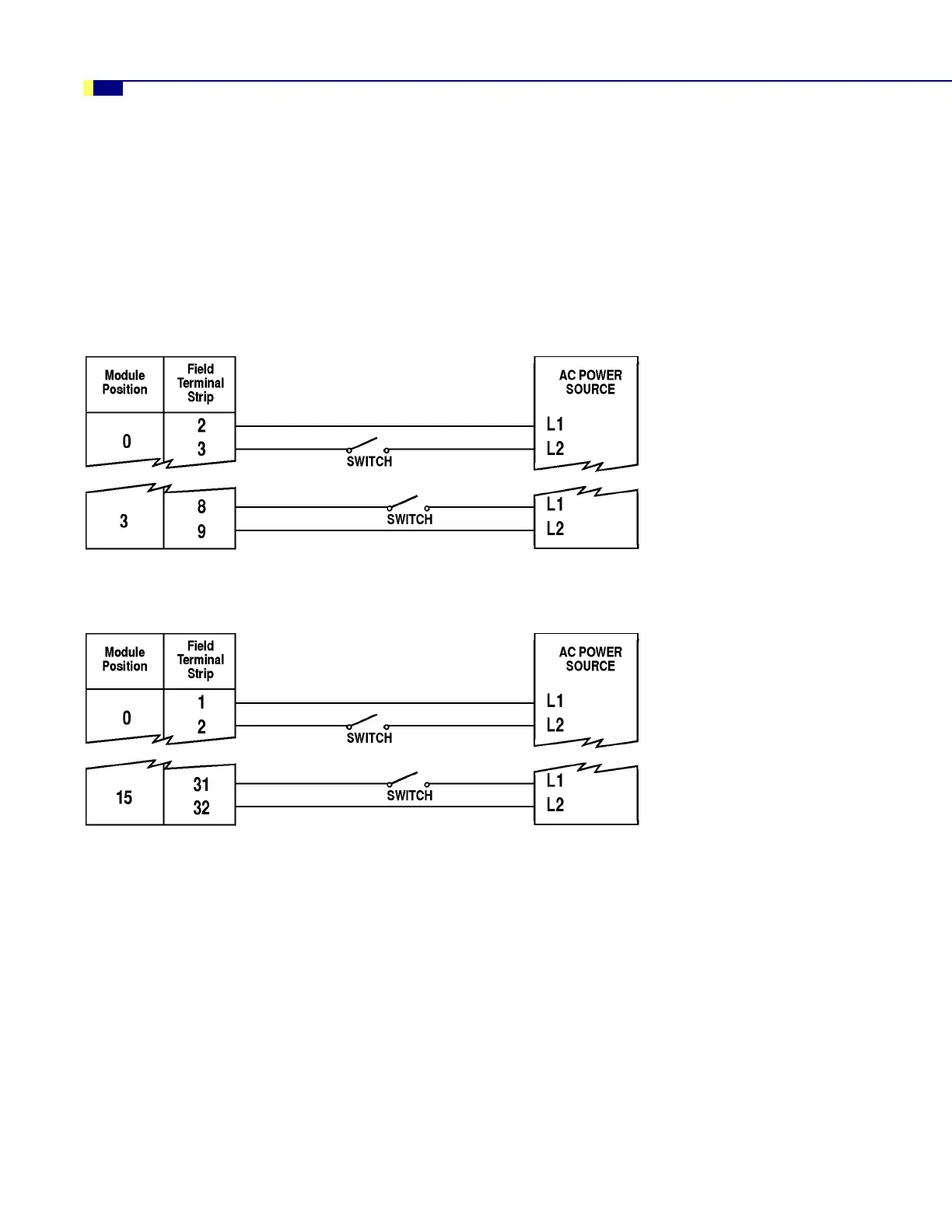

Use the diagrams on this page for the following modules:
G4IAC5
G4IAC5A
G4IAC5MA
G4IDC5
G4IDC5G
G4ID5MA
NOTE: The DC input modules listed at left will work with either DC or AC
field voltages. If you are using them with DC voltages, see page 57. If you
are using them with AC field voltages, follow the diagrams on this page
