DIGITAL AC OUTPUT MODULES
G4 Family Data Book 43

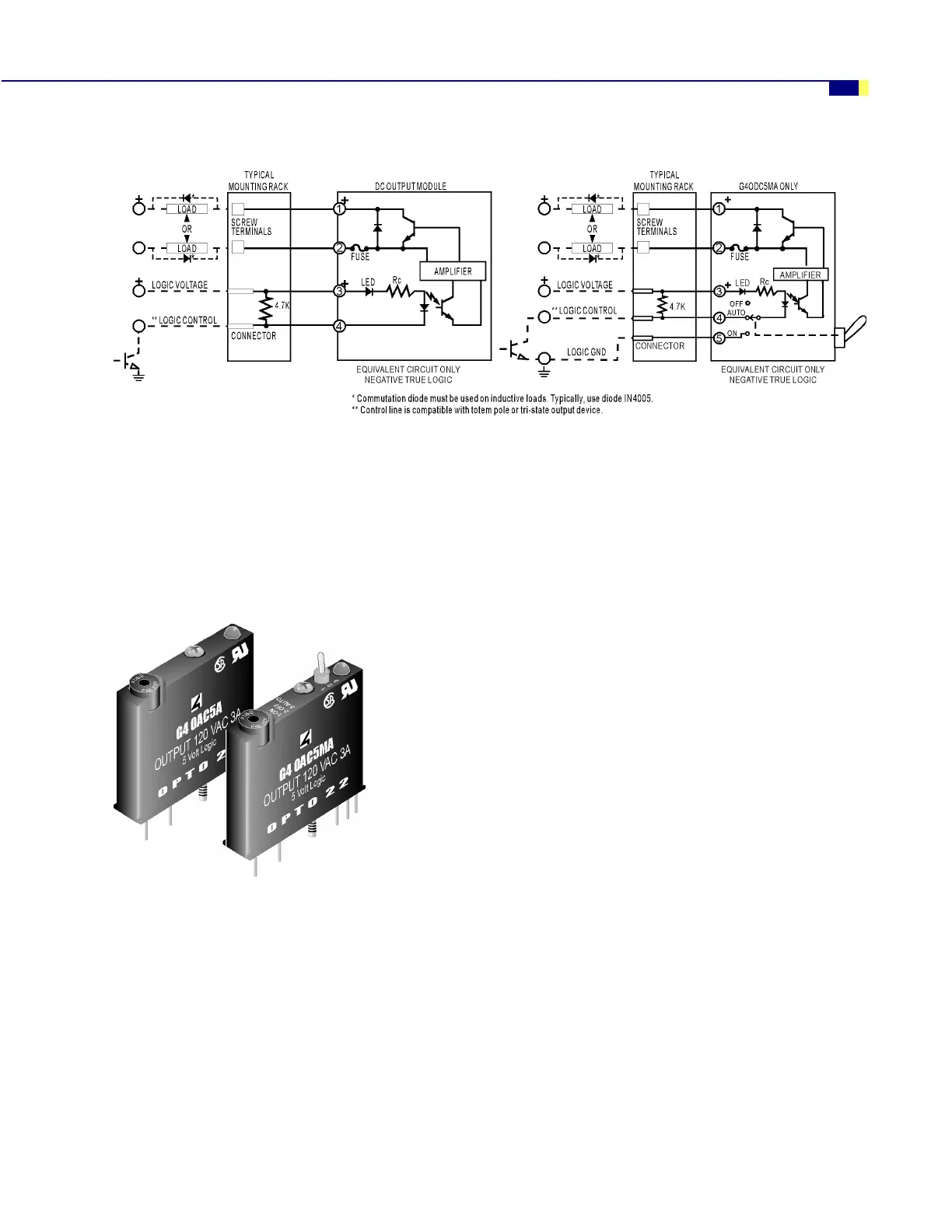

Schematics—DC Output Modules
Digital AC Output Modules
Description
Opto 22’s G4 AC output modules are used to control or switch AC loads.
Each module provides up to 4,000 V
rms
of optical isolation between field
outputs and the control side of the circuit, and each features zero voltage
turn-on and zero current turn-off. All AC output modules are equivalent
to single-pole, single-throw, normally open contacts (Form A, SPST-NO)
except the G4OAC5A5, which is equivalent to a single-pole,
single-throw, normally closed contact (Form B, SPST-NC).
The G4OAC5MA and the G4OAC5AMA are special modules featuring a
manual-on/manual-off/automatic switch, ideal for diagnostic testing of
control applications
Typical applications for AC output modules include switching loads such
as AC relays, solenoids, motor starters, heaters, lamps, and indicators.
All modules include a built-in LED status indicator.
