Operations and Maintenance Manual Mechanical Maintenance Procedures
Version 1.2 - June 2004 11 - 37
5. To make corrections, adjust--either one or both--the upper left spindle side to
side adjusting screw and the upper left spindle front to rear adjusting screw:
Side to Side

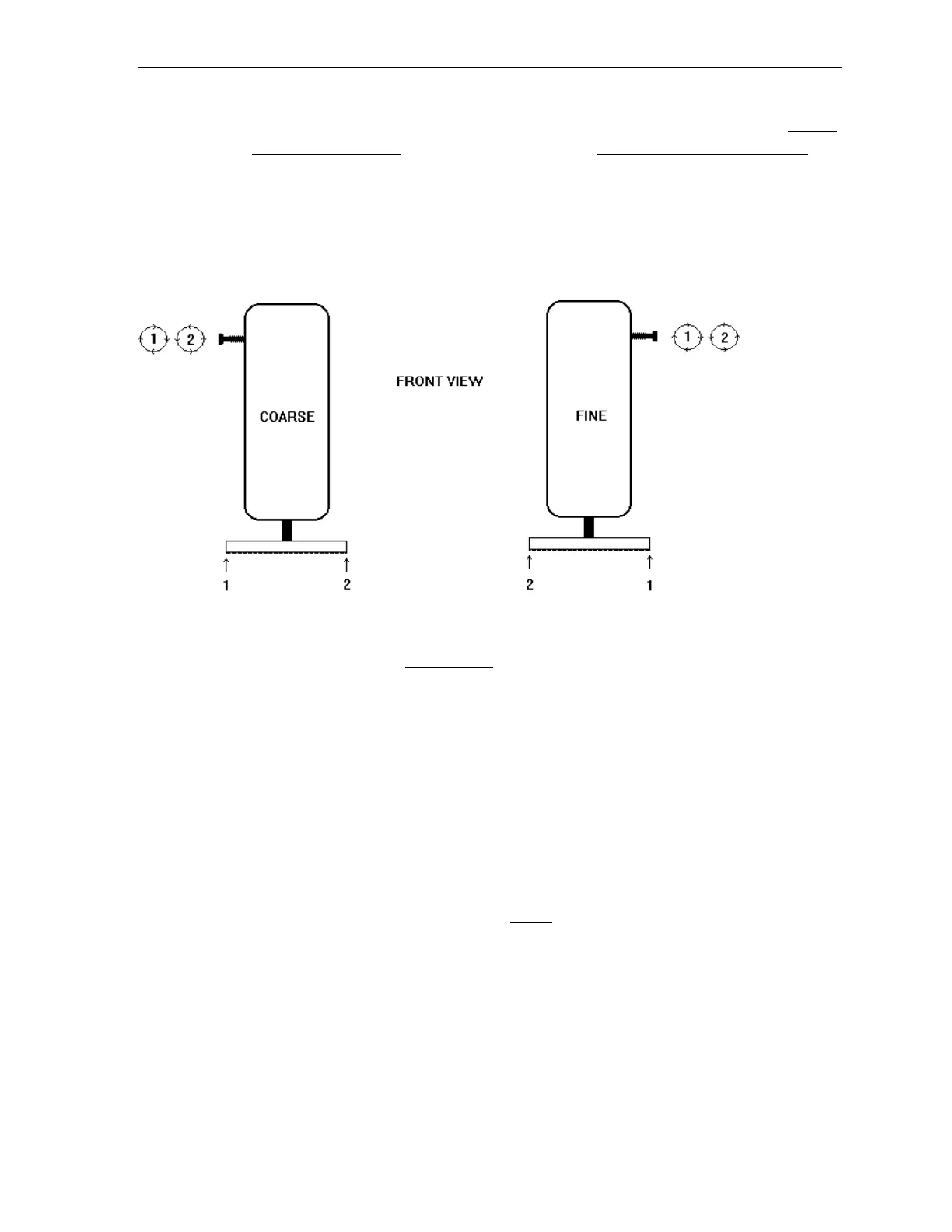

Figure 11-5 Upper Spindle Side to Side Adjustment
a. Locate the upper left spindle side to side adjusting screw, a two-pitch
screw extending horizontally from the side of the upper left spindle
assembly.
Notes:
Access the adjusting screw through the door 12 opening.
The screw is labeled for easy identification.
b. Using a 3/4-in. open end wrench, rotate the screw as needed to meet the
goal.
Rotate the screw clockwise to lower the right side (as viewed from the
front of the machine) of the grind wheel.
