Front to Rear

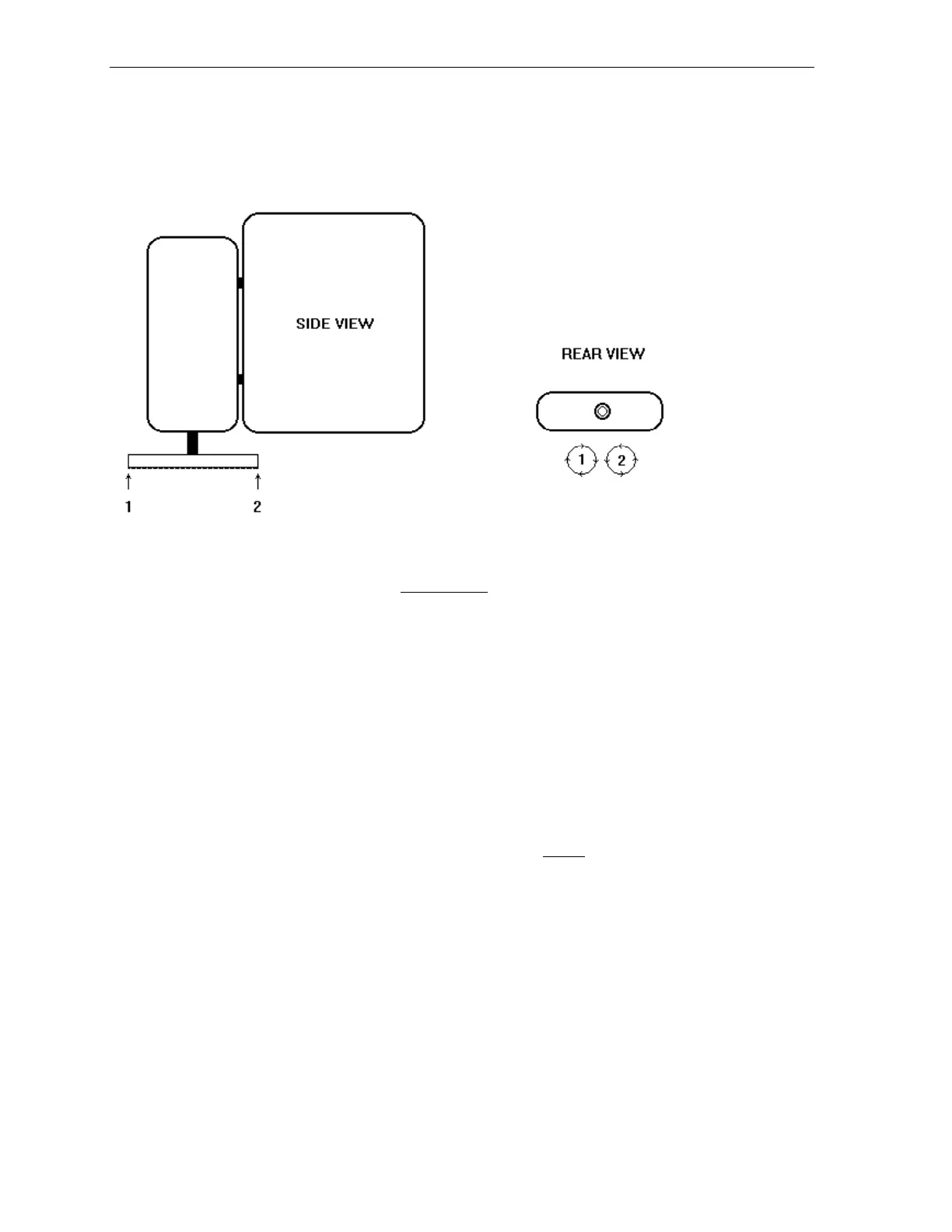

Figure 11-6 Upper Spindle Front to Rear Adjustment
c. Locate the upper left spindle front to rear adjusting screw, a wedge
assembly extending horizontally from the rear of the upper left spindle
assembly.
Notes:
Access the adjusting screw through the door 19 opening.
The screw is labeled for easy identification.
d. Using a 9/16-in. open end wrench or a 1/4-in. hex key, rotate the screw as
needed to meet the goal.
Rotate the screw counterclockwise to lower the front (as viewed from the
front of the machine) of the grind wheel.
