G4PB16HC MOUNTING RACK
14 G4 Digital I/O Family Data Book
G4PB16HC Mounting Rack
Description

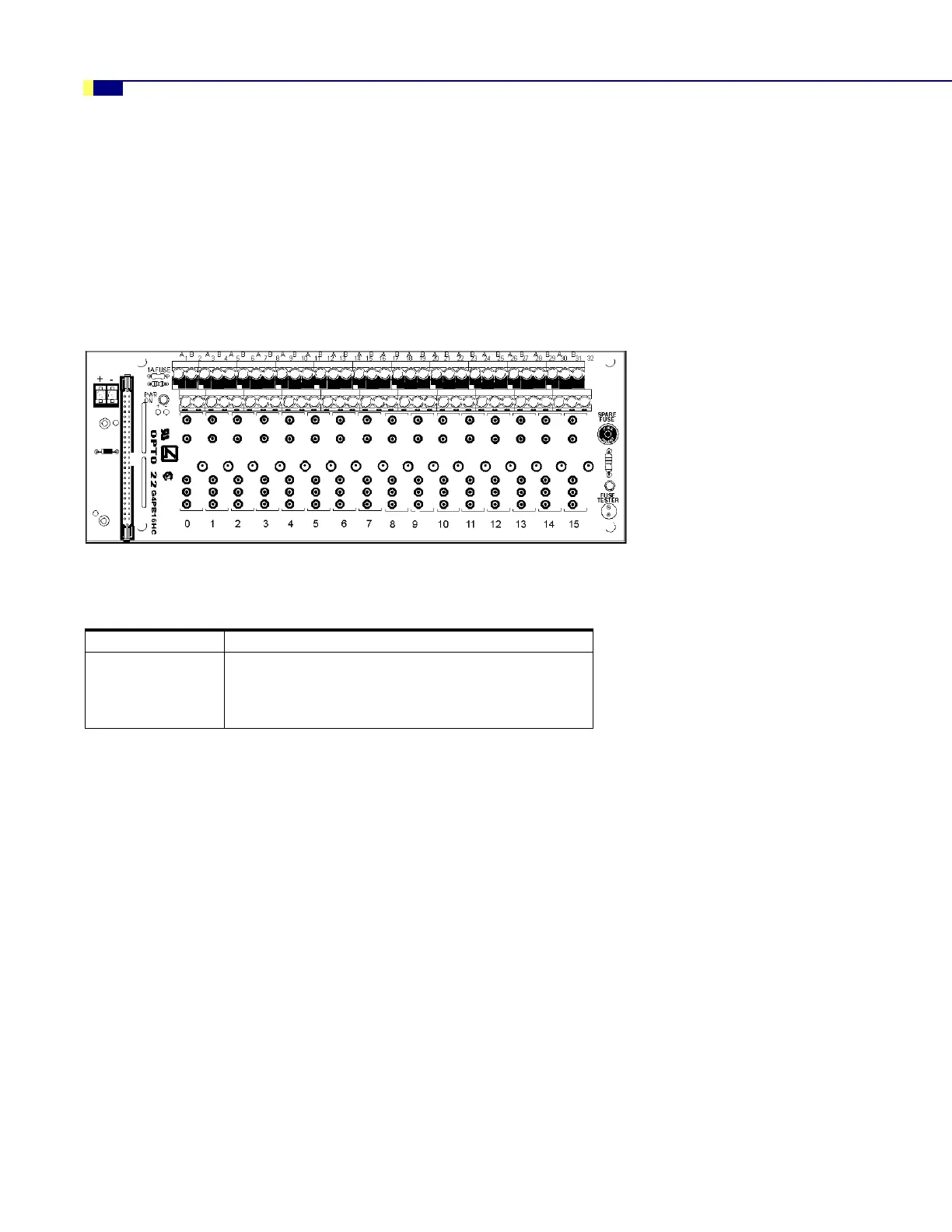

The G4PB16HC I/O mounting rack accommodates up to 16 G4 digital I/O modules and features an extra row of
terminals for field power connections. The rack also includes a power indicator light. This rack is for use with an
Optomux B1, Pamux B5, or Mistic B100 brain board. The logic supply is fused with a 1A fuse.
Barrier strips with screw terminals provide the field and mounting rack power connections.
Specifications
2SHUDWLQJ WHPSHUDWXUH í WR æí
°
&
,QWHUIDFH FRQQHFWRUV
)LHOGã
&RQWUROã
3RZHUã
6FUHZðW\SH EDUULHU VWULS DFFRPPRGDWHV XS WR ìí $:* ZLUH
èíðSLQ KHDGHU FRQQHFWRU
7ZRðSRVLWLRQ VFUHZ WHUPLQDO RU 2SWR ëë 3%6$î%î& SRZHU VXSSO\
