Atmospheric Single-Arm Robot Manual
4000-0016 Rev A
19

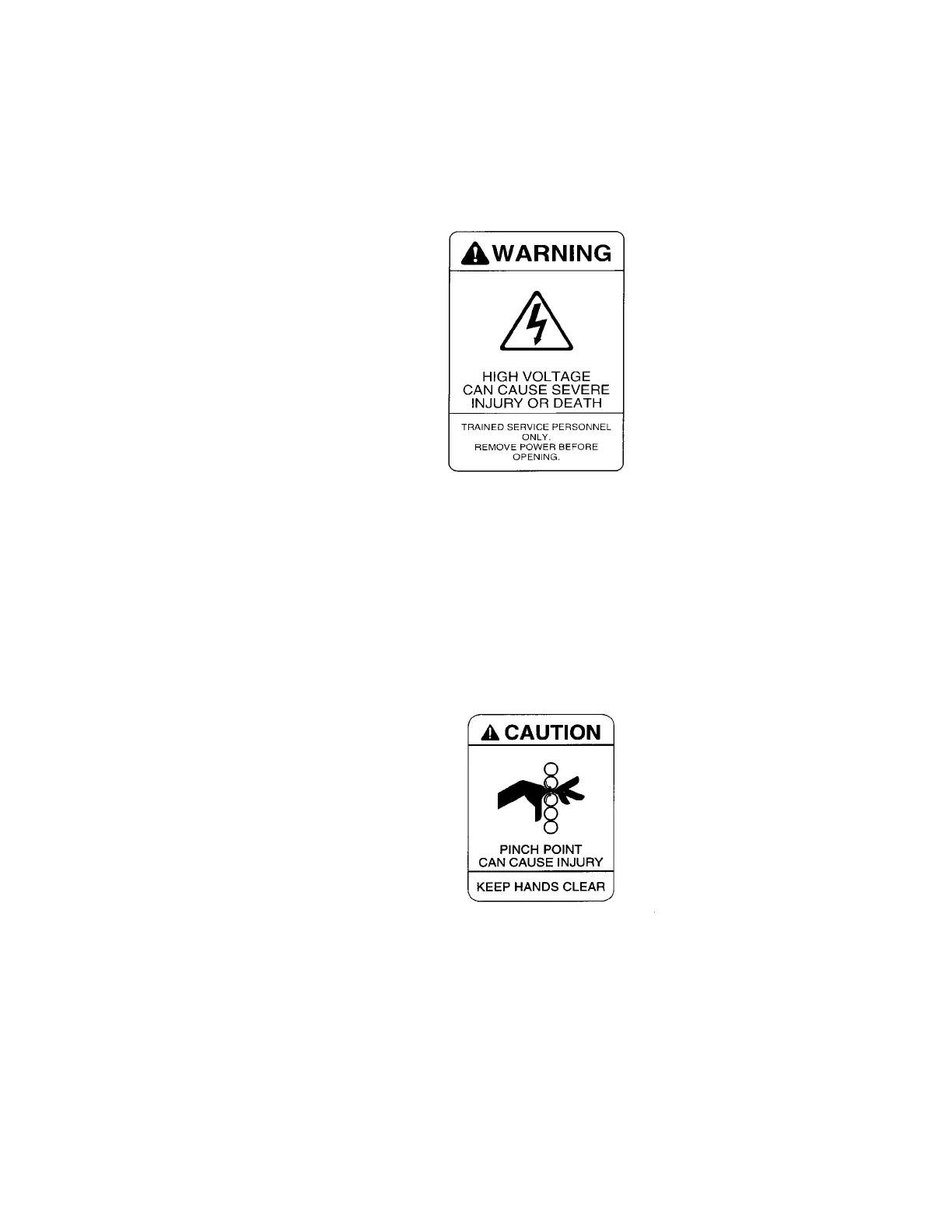

High Voltage Label
The high voltage-warning label is attached to the controller:
Pinch Point Label for S2-93A Systems
The pinch point label is attached to the top of the robot body. Possible
pinch points are located near any moving arm extension or the Z-axis. It
is hazardous to put your hand in the space at either end of the robot.
