Operations and Maintenance Manual Operator Functions
Version 1.2 - June 2004 8 - 9
HOME MACHINE MENU
The Home Machine menu is the location at which the machine is homed and the chucks and
probes are referenced.

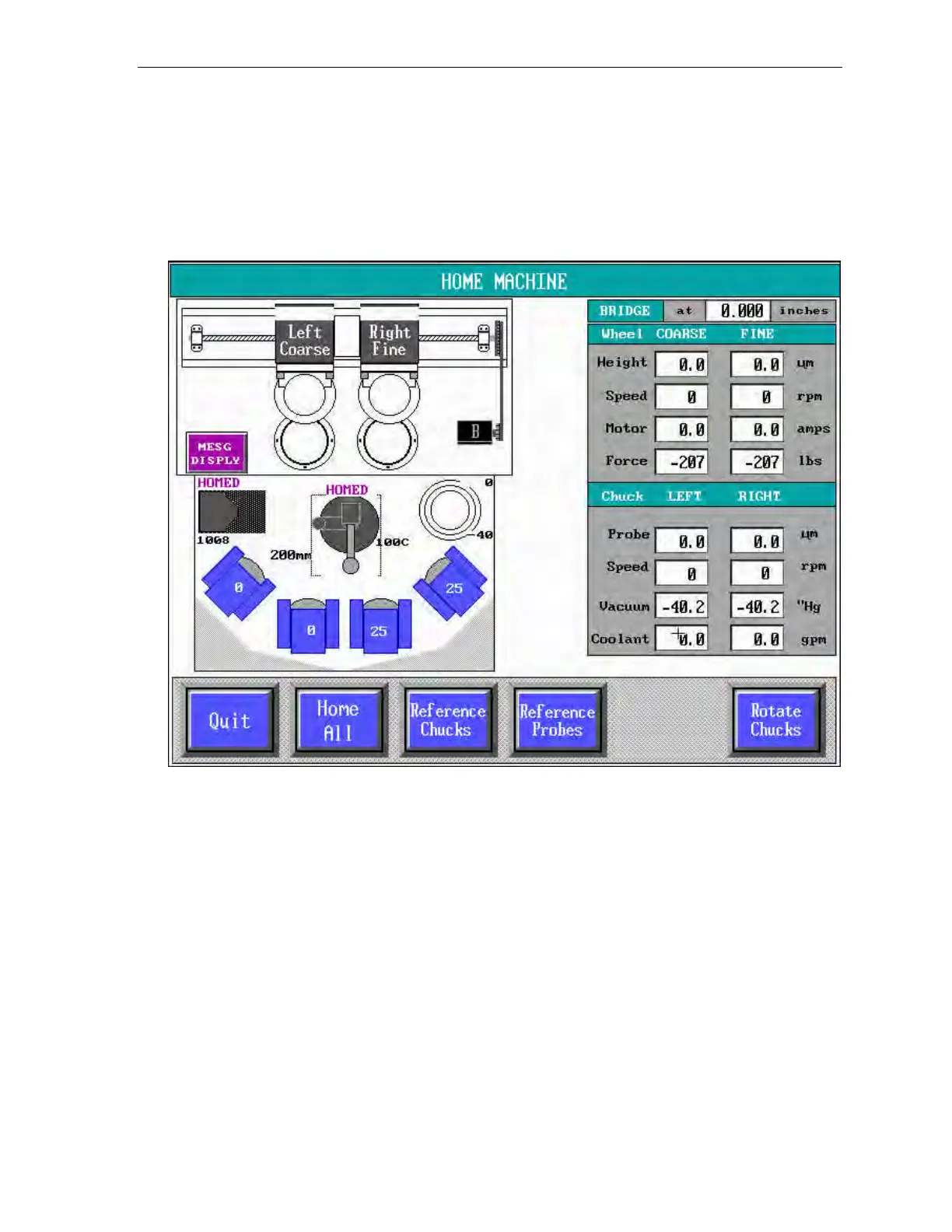

Figure 8-3 Home Machine Menu
The icons (images) displayed at the left side of the Home Machines menu represent the machine
subassemblies. For a detailed top view of machine subassemblies, refer to the Subassemblies
section in the Physical Description chapter of this manual.
