Checking Robot Status
You can check various connections by sending information request
commands from Terminal mode of either a Teach Pendant or EQT 32 to
the controller. Or, use EQT 32 Information Request. The firmware
recognizes the current axes and returns information for those axes.
Command Purpose
STAT Send status word
AST 1 Check error status on communications port 1 (COM1)
AST 2 Check error status on communications port 2 (COM2)
GLST Check status of the Galil motion control board
INPUT G Read input port G
RLS Read limit switches
RNCS Read NVSRAM check-sum
ALST Check Alignment status when STAT bit 7 is set to 1
VER Read firmware version number

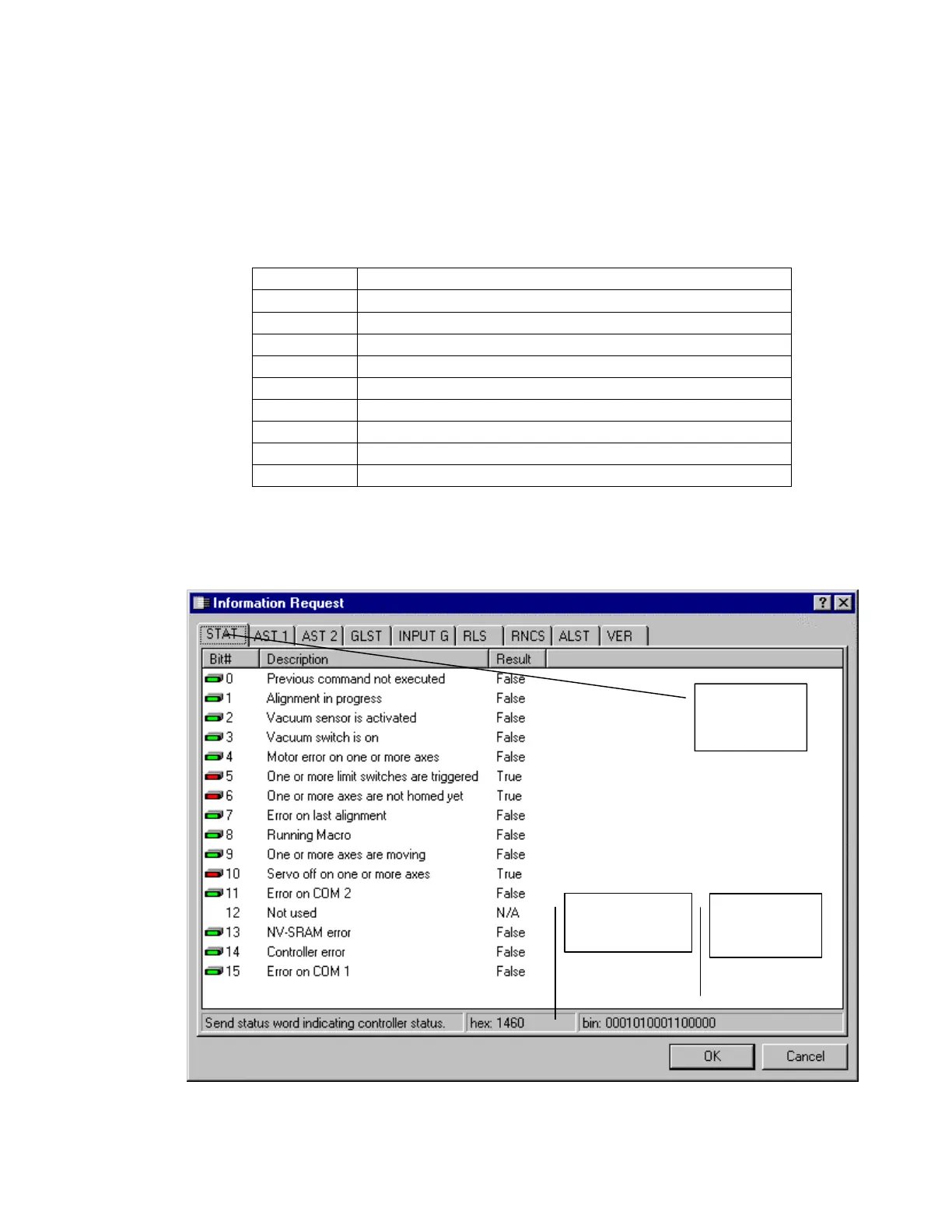

In EQT 32, select the Troubleshooting button. The Troubleshooting
dialog is displayed. Select Information Request and press the Run
button. Nine commands are executed and the results are displayed as text
messages. Problems are highlighted with a red box.
Binary
equivalent
Hexadecimal
status word
STAT tab
is selected.
