Strasbaugh nTellect (Model 7AF) Wafer Grinder
3 - 26 Version 1.2 - June 2004
EDIT RECIPES (WAFER RECIPES) MENU

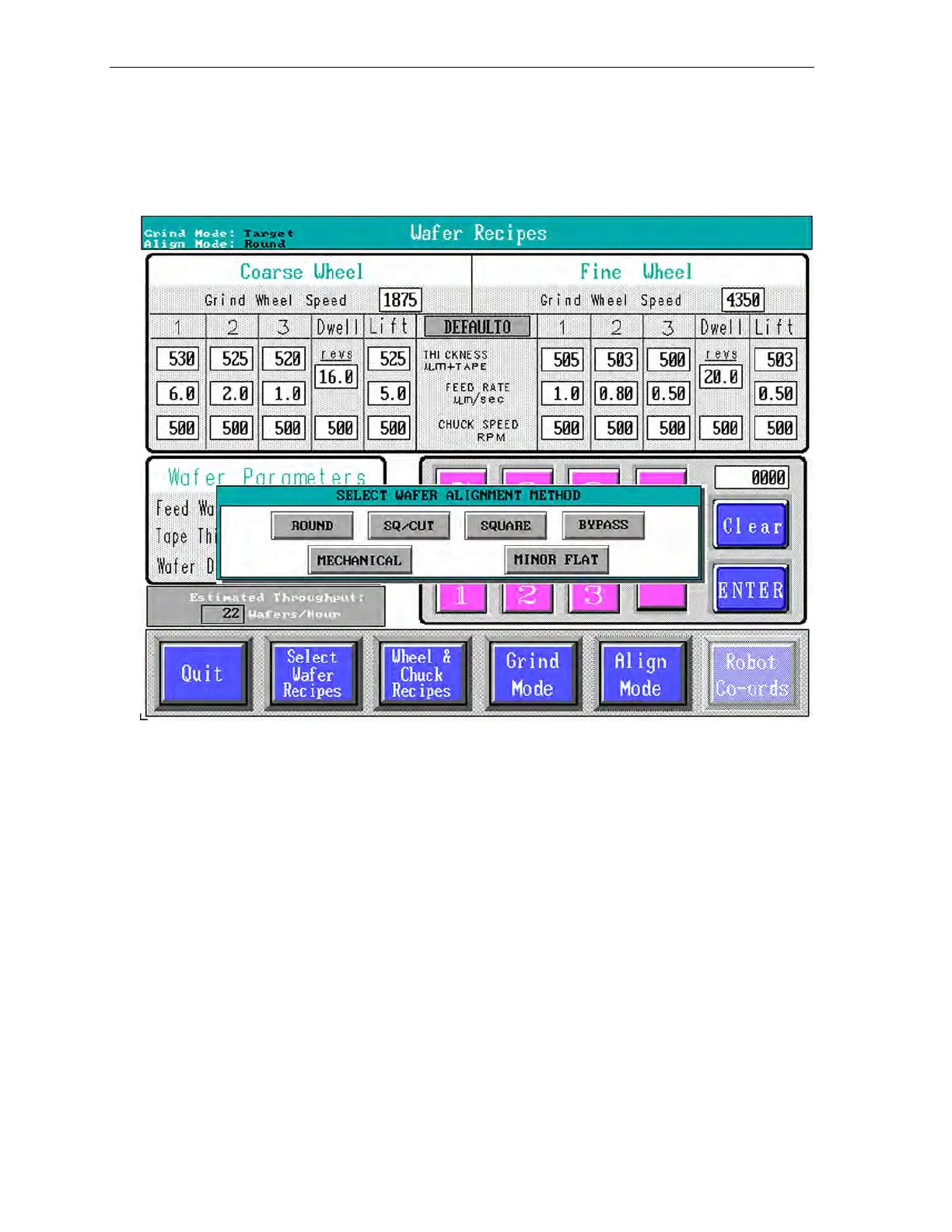

Figure 3-11 Edit Recipes (Wafer Recipes) Menu
At the Wafer Recipes menu, selected by touching the Edit Recipes button on the Main
Menu, you may edit the grind recipe currently in use or select a stored recipe to edit.
You may also select the Wheel and Chuck Recipes menu. For further information, see
the Machine Setup chapter of this manual.
