Studer D950 User Manual

D950 Digital Mixing System
Date printed: 03.09.03 SW V3.3 Desk Operation 3-31
3.3.6 Stereo AUX Section
On the channel strip, the channel signal can be routed to the stereo AUX
busses 1 through 4 without having to access the LACP controls. In other
words, a dedicated set of ON/OFF controls for the stereo AUX sends 1
through 4 are provided at the top of the channel strip. This can also be
done on the Central Assign Unit (CAU).
Routing to the stereo AUX busses 5 and above can only be performed via
the Central Assign Unit (CAU) or via the LACP page keys.
Stereo AUX bus assignment is possible only on mono/stereo input, multi-
track input/monitor channels, and group channels.
The available parameters for stereo AUX are the following:
• Send level for all configured stereo AUX channels (AUX 1 to max.)
• Pre-/after-fader position for all configured stereo AUX channels
• Stereo balance (L/R panning)
Note: The maximum number of stereo AUX channels available via the channel
strip page selectors is 8.

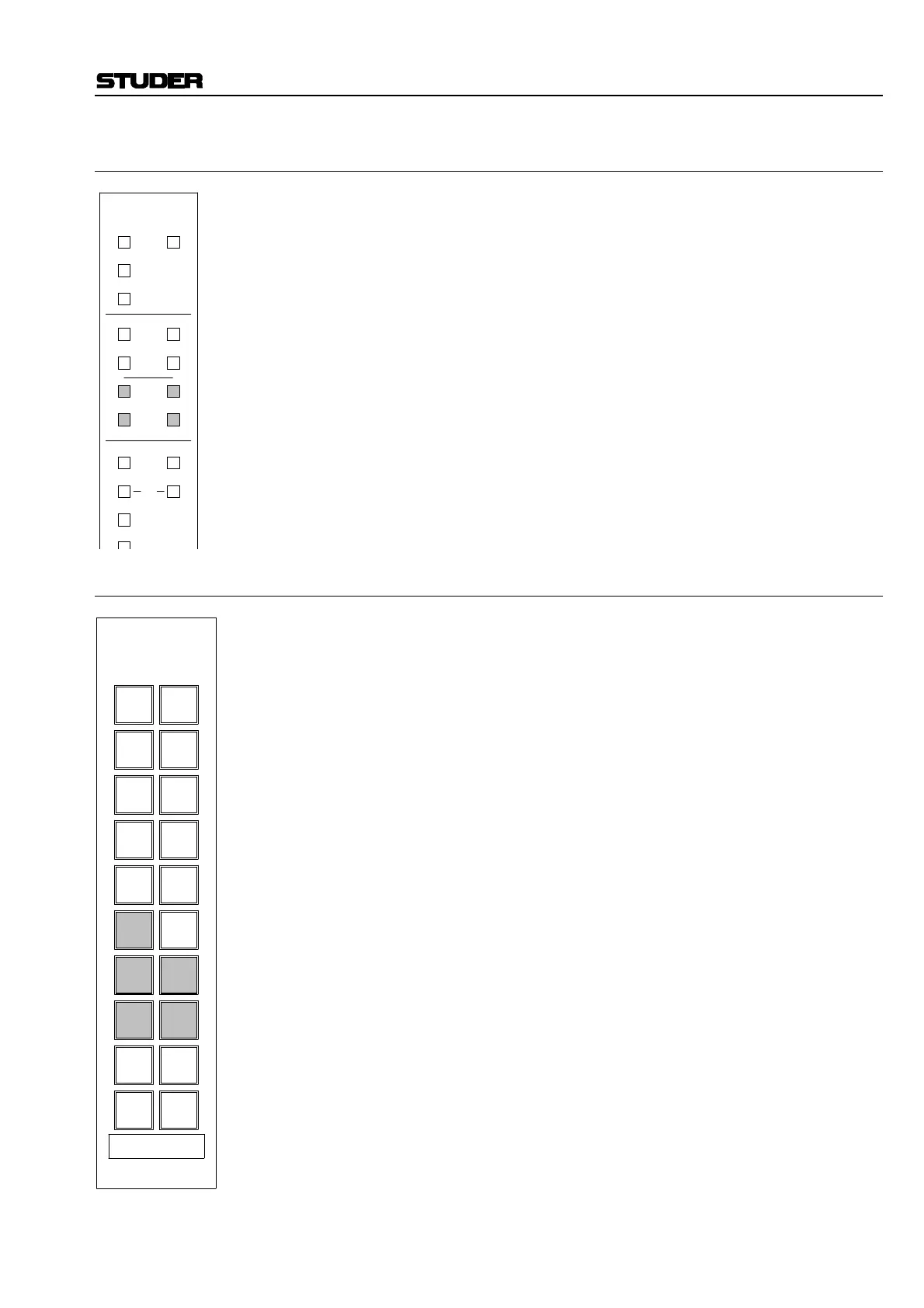

3.3.6.1 Assigning the Stereo AUX Section
A. Global Assignment:
• Press STEREO AUX on the Master Menu Selector.
The displays of all Channel Strips will switch over and indicate the
Stereo AUX control parameters, except those in FREEZE mode; see
chapter 3.3.2.
• Press one of the PAGE 1 through 4 keys on the MMS (PAGE 1 for
Stereo AUX 1 and 2; PAGE 2 for Stereo AUX 3 and 4, and so on).
B. Local Assignment on the channel strip:
• Press ASN SEL; the ASN SEL key will flash.
• Press any AUX STEREO selector key (AUX STEREO 1 through AUX
STEREO 4 ON).
ASN SEL + AUX STEREO 1 or ASN SEL + AUX STEREO 2 ON:
The Stereo AUX 1 and 2 parameters will be displayed on LACP PAGE 1.
ASN SEL + AUX STEREO 3 or ASN SEL + AUX STEREO 4 ON:
The stereo AUX 3 and 4 parameters will be displayed on LACP PAGE 2.
C. Local Assignment affecting all Channel Strips:
• Press LINK ACCESS on the Master Menu Selector.
• Pressing a local AUX STEREO key will now affect all Channel Strips.
The same functions as described in “B” are available.
D. Local Assignment with Auto Assign Modes "In-Only":
• Press AUTO ASSIGN MODES on the Master Menu Selector once
(AUTO ASSIGN MODES is illuminated).
• Pressing one of the AUX STEREO keys on the channel strip will as-
sign the STEREO AUX parameters to the LACP without pressing the
ASN SEL key, provided the function toggles to an IN (or ON) status.
If it toggles to an OUT (or OFF) status, the knob status does not
change.
DLY
INS
CMP/
LIM
EQ
3
ON
1
ON
3
ON
1
ON
4
ON
2
ON
4
ON
2
ON
AUX
MONO
GEN
IN 2
IN 1
INPUT DIR OUT
ON
Input
Busses
Meters
Out
PROCESSING
FILT
EXP/
GTE
DYN
AUX
STEREO
MENU
EQ2
INPUT
OUT/
N-1
EQ FILTER
COMP GATE
EXP/LIM/
INSERT DELAY
MONO
AUX
ADD.
AUX
STEREO
AUX
PAN
PAGE
1
PAGE
3
SHOW
VALUES
FREEZE
OFF
LINK
ACCESS
MODES
ASSIGN
AUTO
4
PAGE
PAGE
2
