D950/Vista Digital Mixing System
4-110 GC Operation SW V3.3 Date printed: 05.08.03

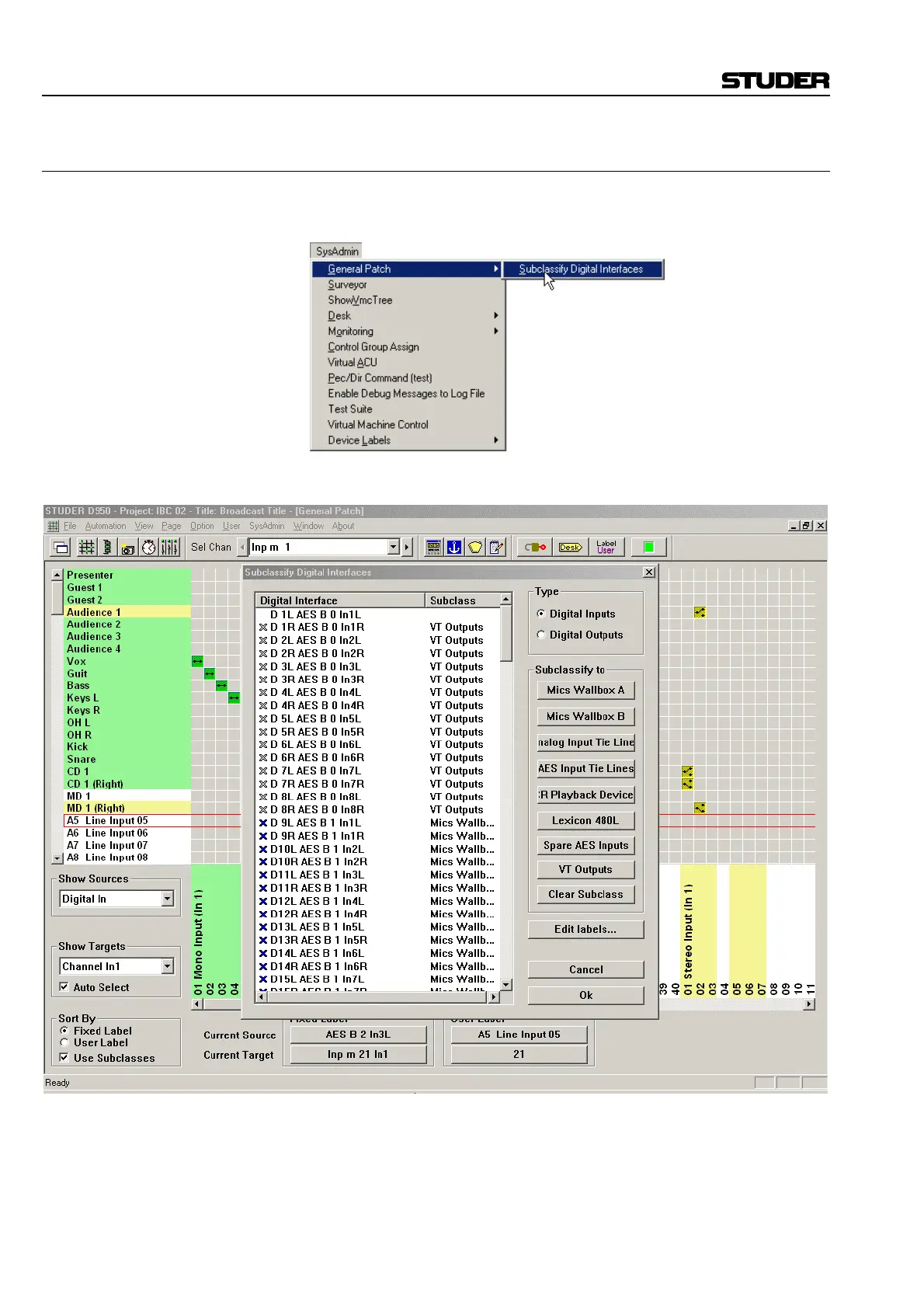

4.7.1 SysAdmin: General Patch/Subclassifying the Digital I/O Sections
There is only one accessible item in this menu: Subclassifying the Digital
In and Digital Out Interface Sections of the Patch.
For more information on Subclasses refer to chapter 4.4.2.3.
The Digital Inputs and Digital Outputs Patch Sections can be subclassified
into eight subclasses each. Subclasses 1 through 8 belong to the Digital In-
puts, and Subclasses 9 through 16 to the Digital Outputs.
The process of Subclassifying is usually done by the facility’s system ad-
ministrator. You need to adapt the Subclass information only if there are
changes in the interfacing due to a system upgrade or rewiring.
