3.3.10.3 Expander/Gate Parameters on the LACP

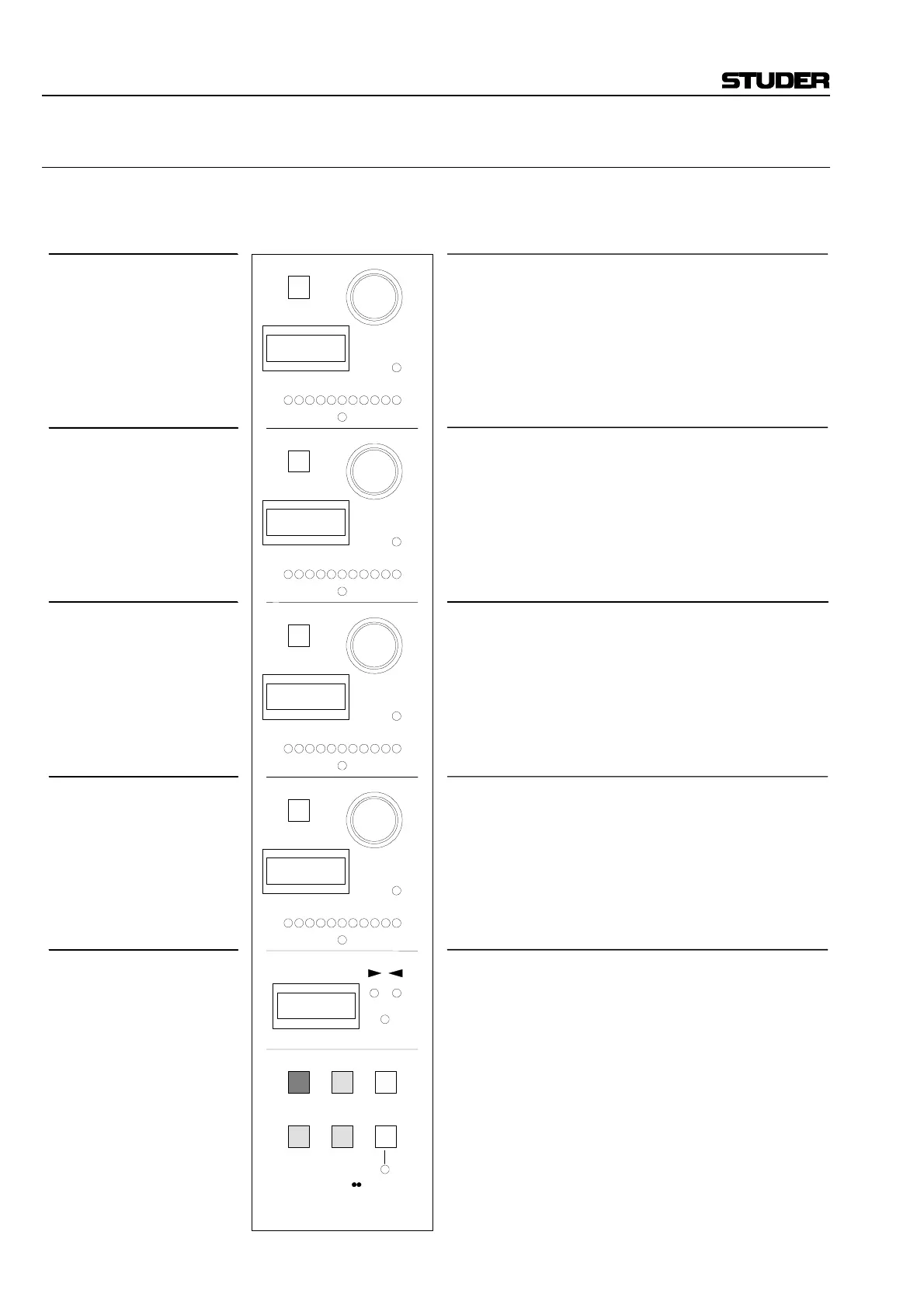

Example 1 (PAGE 1, GATE):
AUTO
SW
1
AUTO
SW
2
AUTO
SW
3
AUTO
SW
4
n–1
TALK
2
1
LAST MODE
4
3
PAGE
FREEZE
Available operating elements and their function
Dynamics control parameter (Expander/Gate)
ATTACK TIME / HYSTERESIS
RELEASE TIME/HOLD
THRESHOLD
SW key
Rotary encoder
LED bar
Center LED
Display
=
=
=
=
=
Hysteresis function ON/OFF
ON: 5 dB hysteresis, OFF: 0 dB hysteresis
Attack time adjustment; 0.2 ms to 1 ms
Dot display, indicates adjusted attack time
no function
ATCK; label of control parameter
0.5; attack time set to 0.5 ms
SW key
Rotary encoder
LED bar
Center LED
Display
=
=
=
=
=
HOLD function ON/OFF; ON=150 ms/OFF=0 ms
Release time adjustment; 10 ms to 10 s
Dot display, indicates adjusted release time
no function
RLSE; label of control parameter
100m; release time set to 100 ms
1s; release time set to 1 s
SW key
Rotary encoder
LED bar
Center LED
Display
=
=
=
=
=
no function
Threshold adjustment; 0 to –96 dBFS, 1 dB steps
Bar display, indicates threshold
Full bar = 0 dB, empty bar = –96 dB
Is ON if threshold is set to 0 dBFS
THRS; label of control parameter
–24; indicates threshold
value –24 dBFS
Display
=
Indication of Expander/Gate selection
GATE; gate parameters (page 1)
EXP; expander parameters (page 2)
LFWD; look
forward time (page 3)
KEY; common parameters for expander and
gate (page 4)
ATTENUATION
SW key
Rotary encoder
LED bar
Center LED
Display
=
=
=
=
=
Gate ON/OFF
Attenuation setting; MAX., –48 dBFS to 0 dBFS
Bar display, indicates current attenuation
On if 0 dBFS is set
ATTN; label of control parameter
MAX; indication of attenuation
value
– 4; attenuation
value –4dBFS
GATE
THRS
RLSE
ATCK
ATTN
