Studer D950 User Manual

D950 Digital Mixing System
3-16 Desk Operation SW V3.3 Date printed: 03.09.03

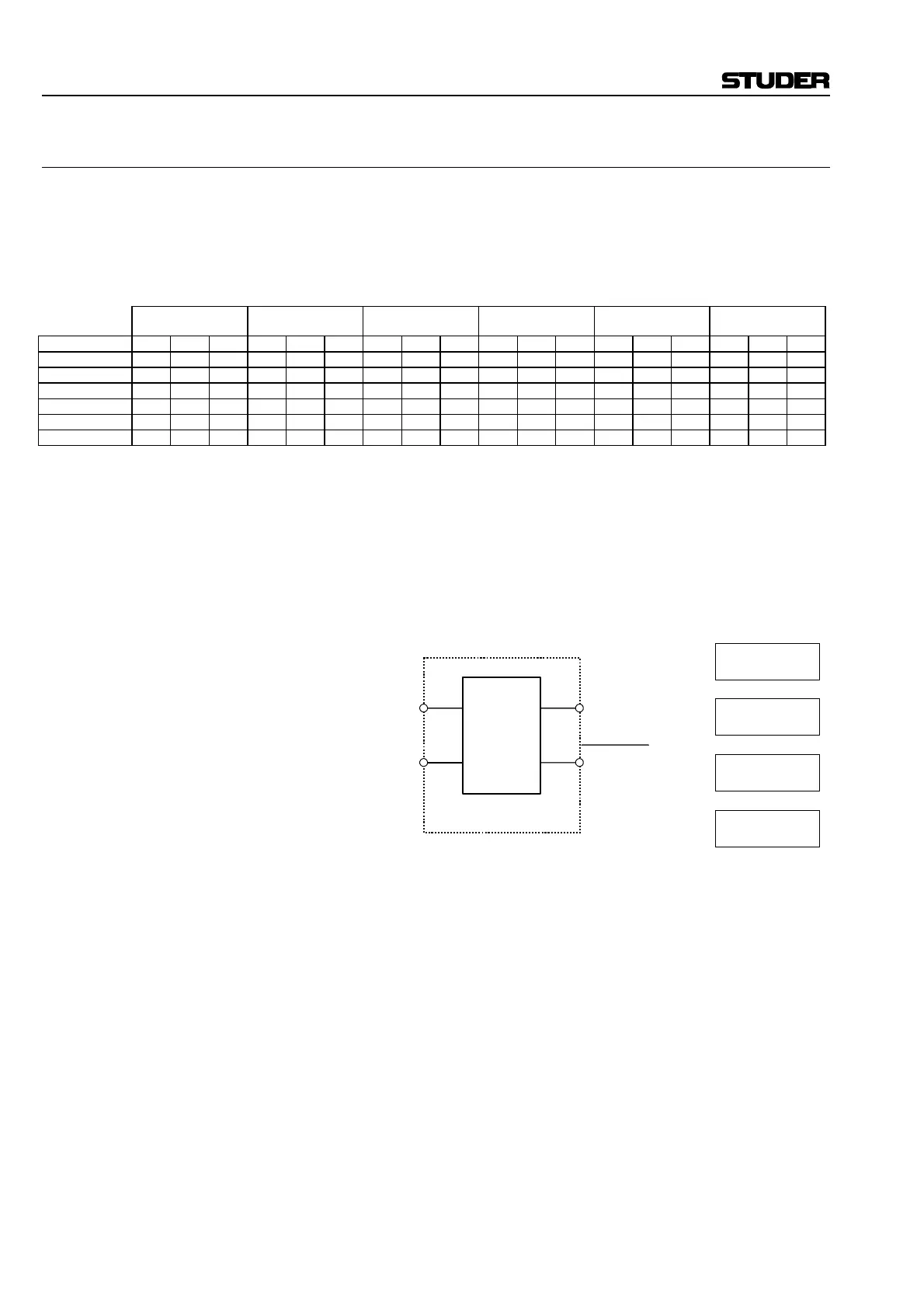

3.3.3.2 Input Parameters
For input sources IN 1, IN 2, and GEN, an input control section is avail-
able. The number of functions available on Input/Output channels, as well
as on Mono or Stereo channels, depends on the active configuration.
For IN/OUT channels, the following parameters are available:
MONO INPUT STEREO INPUT MONO GROUP STEREO GROUP
MONO/STEREO
MASTER
MONO/STEREO AUX
Page
1 2 3 1 2 3 1 2 3 1 2 3 1 2 3 1 2 3
Parameters
IN1 IN2 GEN IN1 IN2 GEN IN1 IN2 GEN IN1 IN2 GEN IN1 IN2 GEN IN1 IN2 GEN
PHASE
X X X X X X X X X X X X – – – – – –
XY/MS-MODE
– – – X X – – – – X X – – – – – – –
INPUT MODE
– – – X X – – – – X X – – – – – – –
INPUT GAIN
X X X X X X X X X X X X – – – – – –
DC REJECT
X X X X X X X X X X X X – – – – – –
PHASE: On MONO channels, two positions are provided:
• NORM, in phase (default setting).
• REV, out-of-phase.
On STEREO channels, four different positions are provided:
• NORM, in phase (default setting).
• PH 1, left channel or input A out-of-phase.
• PH 2, right channel or input B out-of-phase.
• PH12, left and right channels or inputs A and B out-of-phase.
XY/MS MODE: On STEREO channels only.
• XY, (default setting), for coincident XY stereo microphone setups.
• MS, (Mid/Side information), used for decoding MS information from
appropriate coincident stereo-microphone arrays.
X = A
Y = B
Left
Right
Phase
Matrix
Stereo channel
A
B
X
Y
Input source
Normal:
X = –A
Y = –B
X = A
Y = –B
X = –A
Y = B
Phase 1:
Phase 2:
Phase 1+2:
