4.4.7 Vista Strip Setup (for D950 Strip Setup, refer to chapter 4.4.6)
The Strip setup page can be called up in 3 different ways:
• From the Page menu
• Using the Page Icons

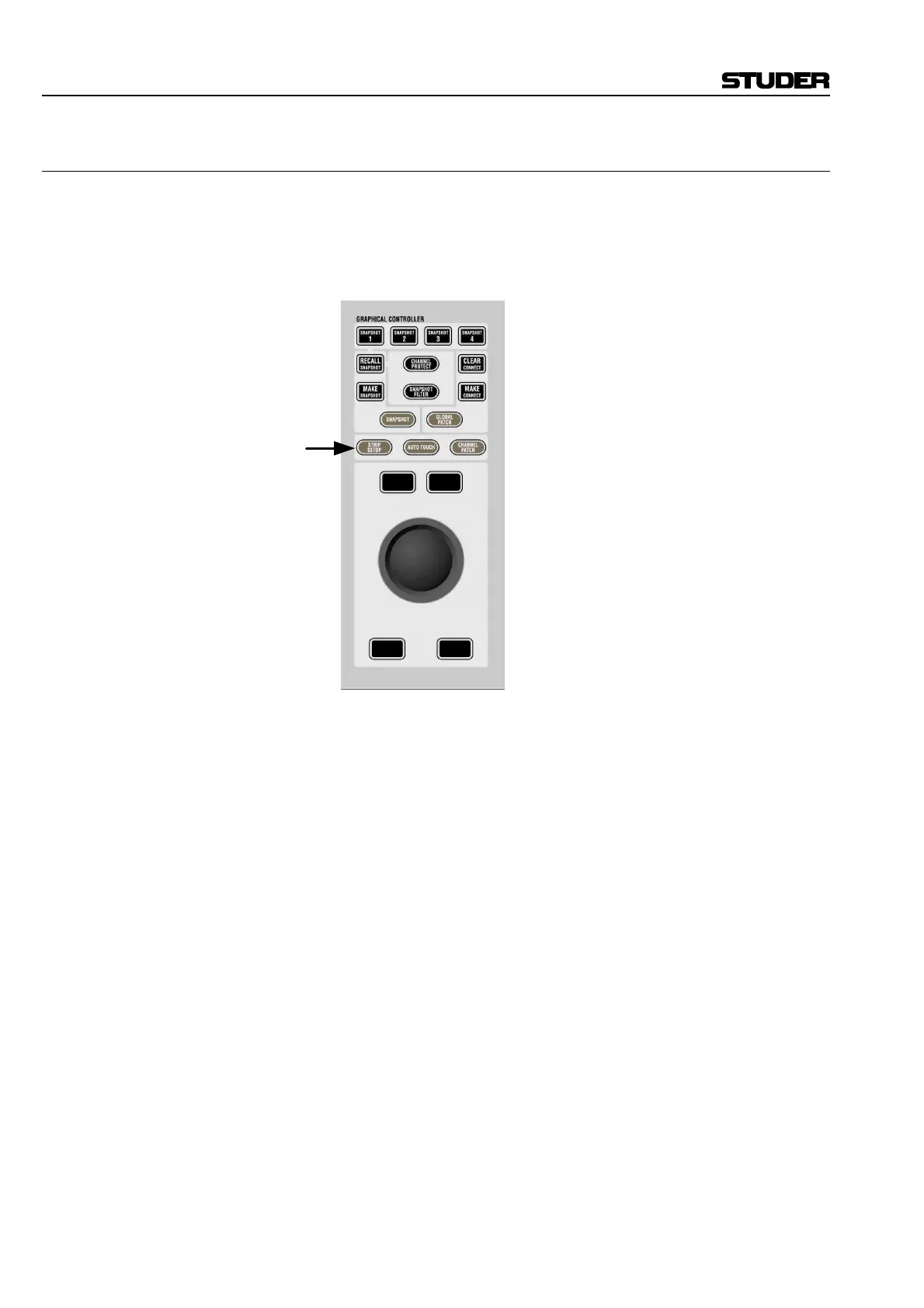

• Using the STRIP SETUP function key in the Control Bay of the Vista
surface.
The Strip Setup page has a number of functions. Primarily, the “Strip
Setup” window allows the user to assign DSP Channels onto the Vista sur-
face. It also, however, gives a very good overview of the console and may
be used during general operation of the console to help the user navigate
around the console.
Please refer to chapter 1.1.5 for information on navigation philosophy.
The “Strip Setup” page (see below) provides a representation of the six
sections of the Vista “virtual surface”. Although the concept of navigation
is based on scrolling in a horizontal plane, the representation of the six
sections is displayed in a vertical plane because of the logistics of screen
space. The navigation system allows the user to decide which area of the
virtual console the Control Surface will represent. The number of bays
within a section will automatically be identical to the number of physical
bays of the control surface. In the example shown below, the Control Sur-
face will have five fader bays – a total of 50 faders. The total number of
virtual channel strips available to represent DSP channels is 6 x 50 = 300
in this example.
