The fader Control Mode is indicated to the right of the fader:
• ISO: Isolate
• READ: Read
• WRT: Write Enable
• WRT + READ: Trim Enable
Null Indicators: Up and down arrow lights indicate the difference between the current fader
value and the Active Pass Read Mix data. When the values match both
lights are extinguished. An exception is to show the offset from the Trim
Null point when in TRIM (this is always the absolute position of the fader
from 0 dB). The fader null indicators are located next to the fader.
Fader Value: The current value of the fader is shown in the unused Layer display.
5.19.1.1.3 D950 Channel Strip Mute Controls
ON Key: The channel mute key (ON key) is the primary on/off control for the chan-
nel’s audio output.
Control Modes: The mute Control Mode may be selected locally by pressing the AUTO /
MODE key. Repeated pressed will cycle the available control modes <Op-
tion>.
MUTE STAT Key: The MUTE STAT key is the primary control for automating the channel
mute.
Single Press Functions: • A single press punches the channel mute in or out of RECORD if it is
enabled.
Status Indication: The MUTE STAT key provides information on the automation status of the
channel mute:
• Steady Illumination: The mute is in WRITE or TRIM enable.
• Flashing: The mute is in RECORD.

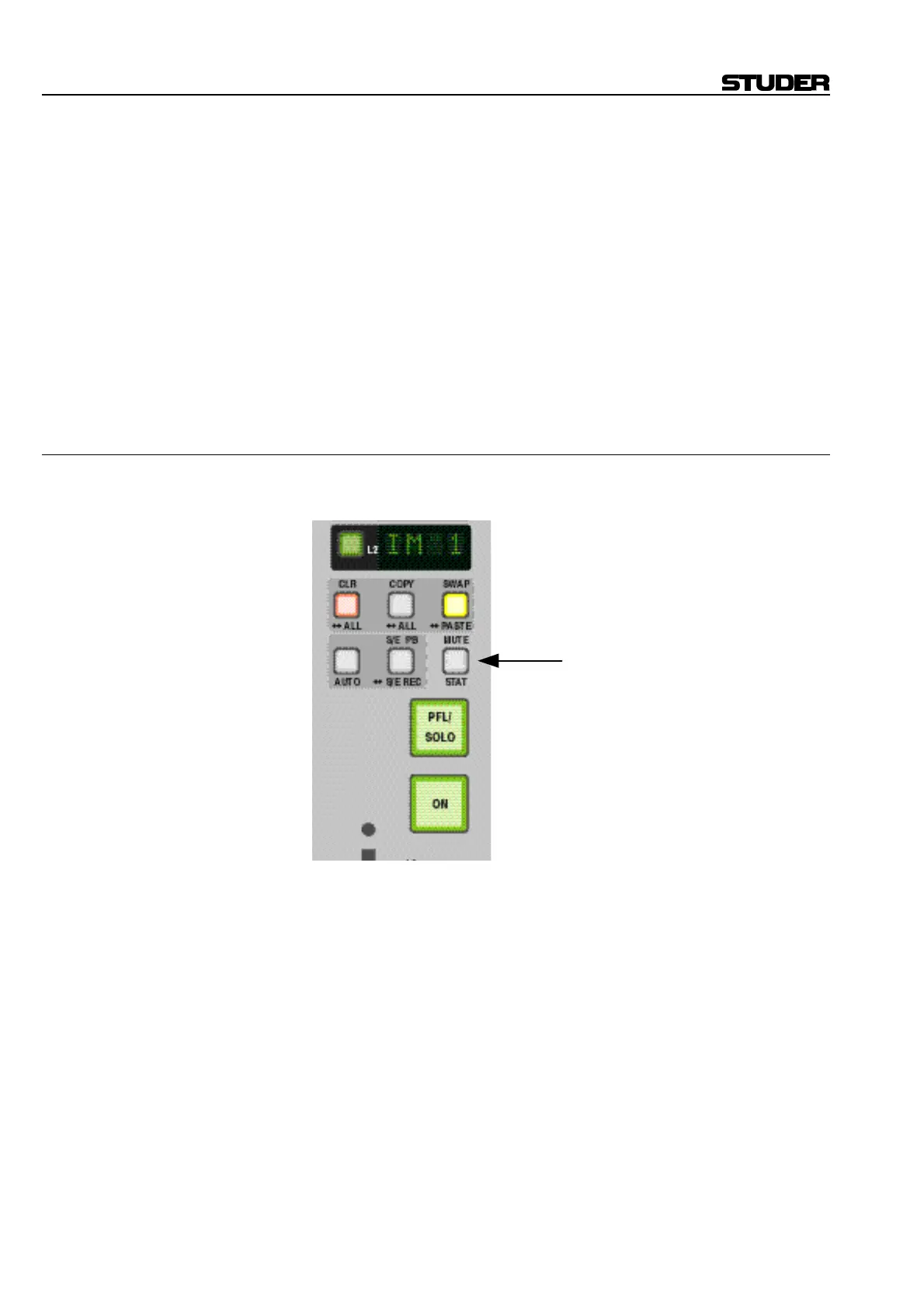

Lights constantly when the Mute is
enabled in either WRITE or TRIM. Flashes
when the Mute is in Record. Pressing the
key punches the Mute in and out of
Record, if enabled.
