D950/Vista Digital Mixing System
Date printed: 05.08.03 SW V3.3 GC Operation 4-95
Generator/Level: This action sets the test signal generator’s level to the desired value. Lev-
els can be set to off and, in 1 dB steps, from –90 to +10 dB
FS
. The Gen-
erator Level can be turned off by moving the Level slider all the way to the
left.
Generator/Frequency: This action sets the test signal generator’s frequency (sine wave only) to
the desired value. The generator frequency can be set in 1/12
th
octave steps
from 19.95 Hz to 19.95 kHz.
Generator/Signal: This action selects the waveform of the test signal generator, from Sine
Wave, White Noise, and Pink Noise.
Generator/Defaults: This action sets the test signal Generator’s level and frequency defaults by
using the arrow buttons to adjust the default values.
To quickly apply a level or frequency default, rather than to adjust it
manually, click on the appropriate Defaults button. Default levels can be
set in 1 dB steps, from –90 to +10 dB
FS
. The Generator Level cannot be
turned off from the Defaults controls. Default frequencies can be set in
1/12
th
octave steps from 19.95 Hz to 19.95 kHz.
F Tip By default, the Test Signal Generator is patched to GEN (third channel
input) of all channels. It also appears as a signal source in the General
Patch and can be patched to any target from there.
4.6.5.2 Option: TC Reader / Gen.
The TC (Timecode) Reader/Generator Setup page is only available in two
cases:
• If the full AutoTouch+ Dynamic Automation system is installed, or
• If the TC2 or TC3 Reader/Generator option is installed.

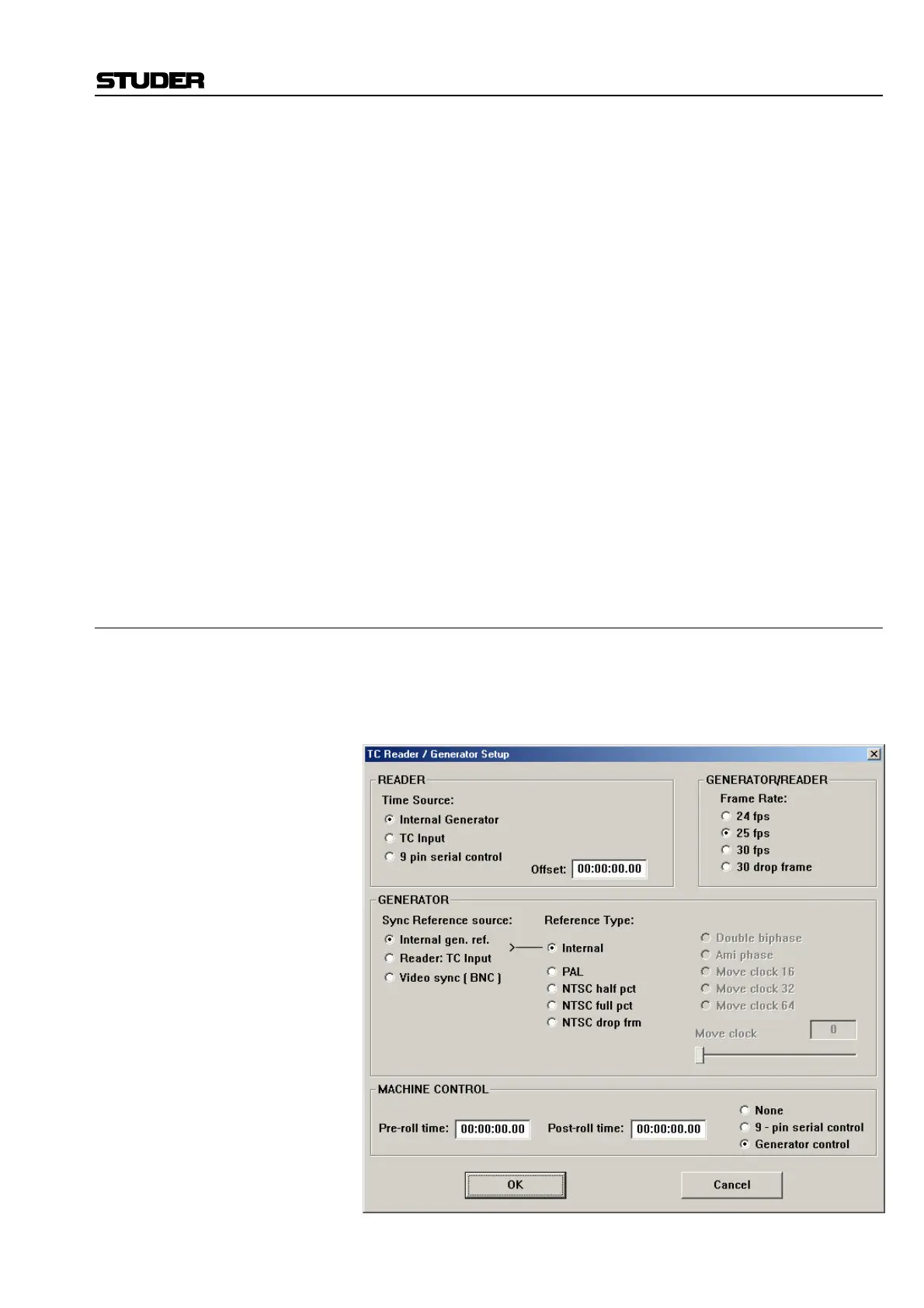

TC2 Setup Window:
