Studer D950 User Manual

D950 Digital Mixing System
3-6 Desk Operation SW V3.3 Date printed: 03.09.03
PATCH
DIGITAL DIGITAL
PATCH
L
R
MULTITRACK Buses
DIR OUT
AF PF
AINP
TB
DIRECT OUTPUT
TB
METER
SELECT
DO
AF
AINP
METER
DATA
N-1 Buses
TALKBACK
PREAMP
CTRL
EQU
INSERT
PHASE
(Mono)
IN 1 IN 2
GEN (Generator)
INSERT RETURN
INP
SEL
CHANNEL
INPUTS
G.R. Meter
SC LINK INPUT
Input Mode Section
FILTER
DC
REJECT
GAIN
Input Process Section
SIDECHAIN IN
DIGITAL
PATCH
DIGITAL
PATCH
DIGITAL
PATCH
DIGITAL
PATCH
DIGITAL
PATCH
MULTI
FMT PAN
L/R
PAN
1
8
1
8
1
8
1
8
INP
EQ
INS
SCF
DYN
PFL
L
R
STEREO AUX Buses
GROUP Buses MASTER Buses
MONO AUX Buses
INSERT SEND
CHANNEL
OUTPUTS
IPL
PFL BUS SOLO BUS
SC LINK OUTPUT
L
R
L
R
DYN
FADER
MUTE
DELAY
RES
PAN
PF
AF PF
AF
PF
AF
MONO AUX
STEREO AUX
CHANNEL SWITCH MATRIX
Exp. Meter
PF
AF

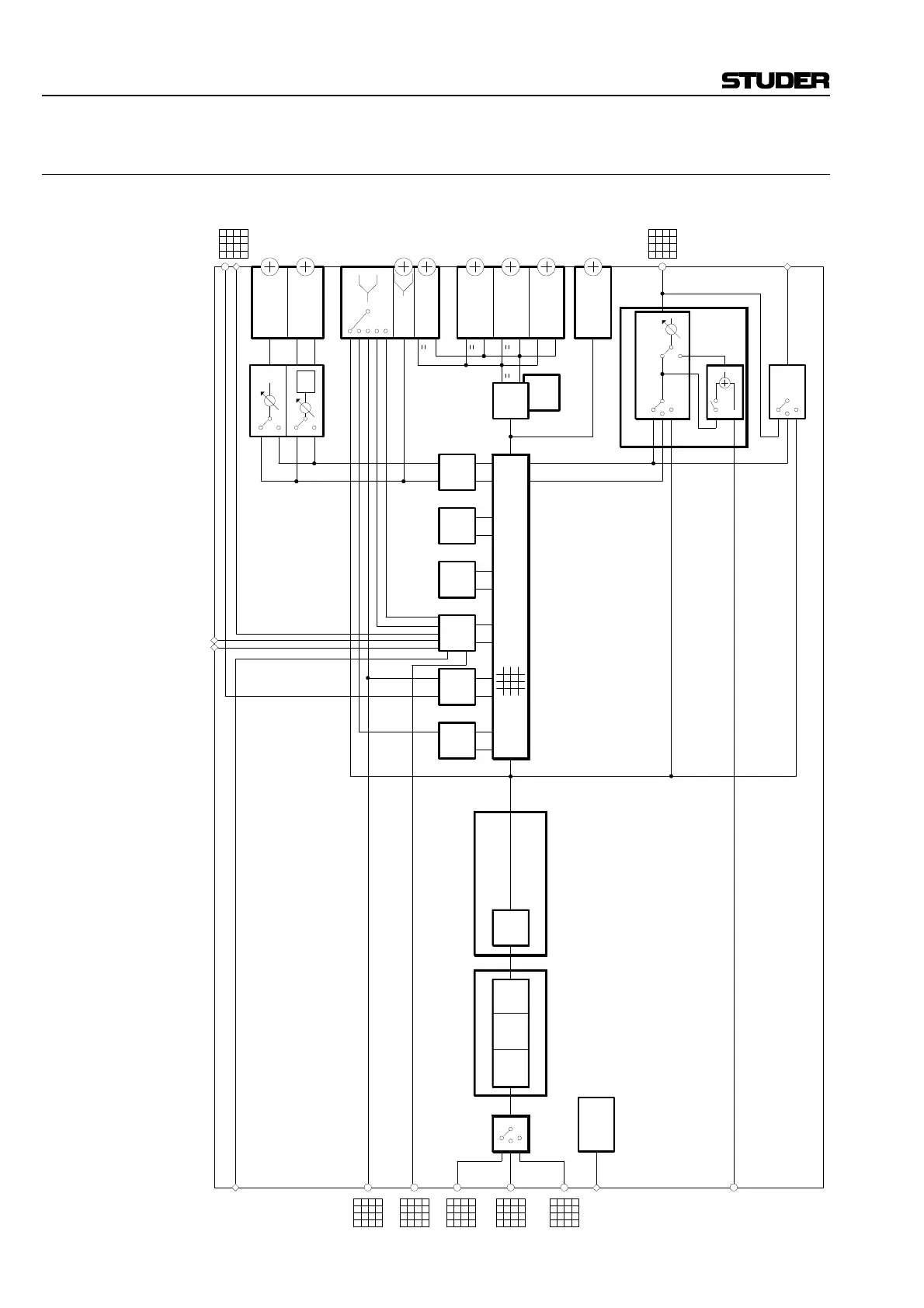

3.2 Channel Audio Block Diagram
Typical mono input channel:
Please note that, essentially,
all channel types have the
same structure, regardless
of the type (input, AUX,
group, master, etc.)
