Studer D950 User Manual

D950/Vista Digital Mixing System
Date printed: 05.08.03 SW V3.3 GC Operation 4-115
4.7.5 SysAdmin: Monitoring
The Monitoring menu item contains several functions regarding the
D950/Vista loudspeaker control:

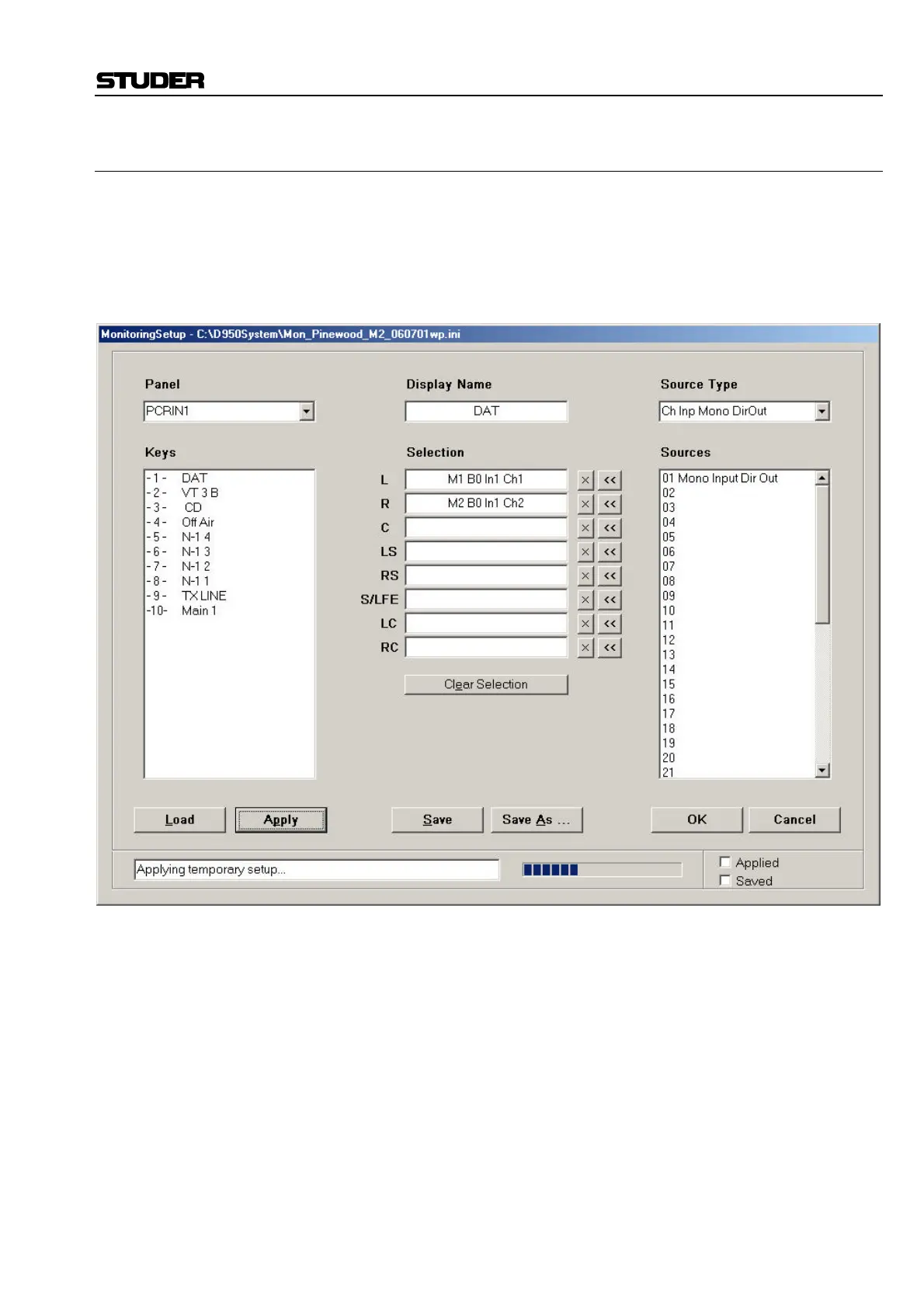

Edit Monitor File: This action brings up the Monitoring Setup editing utility. The title bar
will display the name and location of the currently loaded Monitor Con-
figuration file.
The Monitoring Setup page contains the following fields and controls:
Panel Selection box: This box provides a pop-up menu used to select a control room or studio
Assignable Source Selector panel installed in the control surface for edit-
ing. The Source Selector keys for the selected panel will be displayed in
the Keys box, where they can be selected for editing. The name of the
panel may also be edited using this box.
Note (Vista only): The four subpanels popping up on the screen upon activated option (ex-
perts only!) show up as individual panels with 12 source selectors each.
Key Selection box: This box is used to select a specific Monitor Source Selector key for edit-
ing.
Display Name entry box: This is a name entry box for the selected Source Selector key. It will dis-
play the name of the selected key, which can be edited. The name that ap-
pears in this box will be shown on the D950 Monitor Source Selection
