D950 Digital Mixing System
Date printed: 03.09.03 SW V3.3 Getting started 2-13
2.4.5 Channels, Routing, and Buses
Processing blocks, such as equalizer, dynamics, delay, etc., can be config-
ured for all channel types.
Input Channels The D950’s digital routing matrix is located between the console’s physi-
cal inputs and the actual DSP channels. This topology means that the
physical analog and digital inputs can be assigned to any channel of the
console via the General Patch page on the Graphic Controller. The patch
setup forms part of each individual snapshot, and can be saved, updated
and recalled within the Snapshot/Preset system.
Output Channels The same concept applies to the outputs. On the General Patch page, each
channel’s output can be selected and sent to any analog or digital output
destination.
Auxiliaries The number of stereo or mono AUX sends is fully configurable. The users
can establish the number and type of AUX sends they would like to use.
The AUX master channel can be equipped with the same selection of
processing blocks such as equalizer, dynamics, delay, and more.
Clean-Feeds/Mix-Minus (N–1) Clean-Feeds/Mix-Minus or N–1 buses can be set up in stereo or mono, and
are configurable in number.
Multitrack and Group Routing Full multitrack and group routing can be configured, with selected desti-
nations being displayed via back-lit numerical readouts located below each
channel’s bar graph level meter. This arrangement provides a continuous
overview of the D950’s entire console routing.

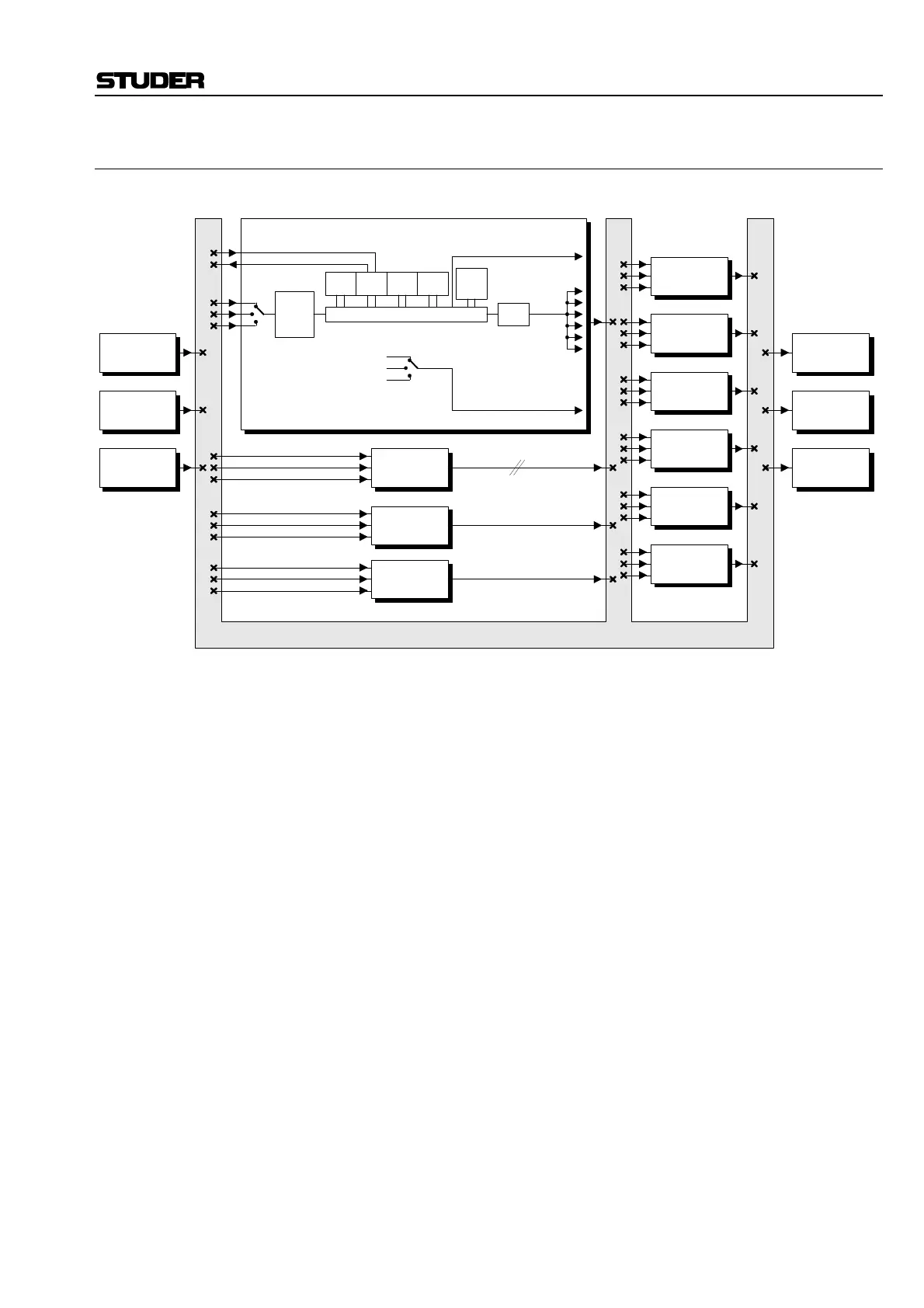

D19m MUX
AES/EBU
MADI
Input stereo
1...n
MTRK monitor
1...n
MTRK input
1...n
AUX mono
1...n
AUX stereo
1...4
GRP mono
1...n
GRP stereo
1...n
Master mono
1...n
Master stereo
1...n
D19m DEMUX
AES/EBU
MADI
D950 DSP router
Input channels Output channels
Audio outputsAudio sources
Direct out
AF
PF
INP
Gain
HP/LP
Phase
EQ DYN DLY
Fader
Mute
PANCH switching matrix
Configurable processing
L/R or
surround
Master, group,
PFL, SOLO,
MCH, N–1
Input mono 1...n
Busses
INS
