D950/Vista7 Digital Mixing System
5-158 AutoTouch+ SW V3.3 Date printed: 27.08.03

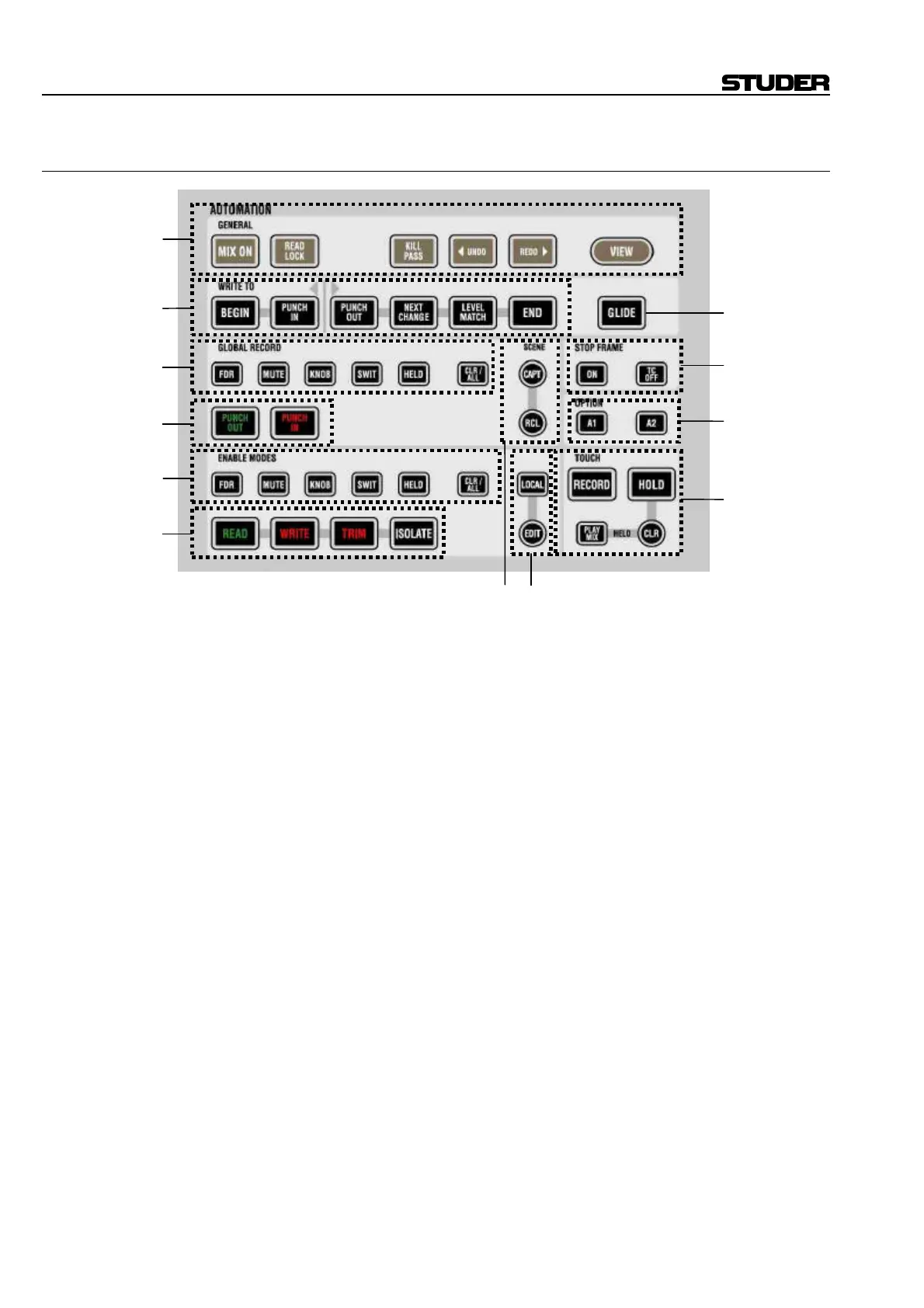

5.18.2 Vista
[1] Global CONTROL MODES (see also chapter 5.6).
READ – Sets selected objects (depending on the Pre-Selector setting) into
Read mode.
WRITE ENABLE – Sets selected objects (depending on the Pre-Selector
setting) into Write Enable mode. These parameters are “armed” and can be
put into write (record).
TRIM ENABLE – Sets selected objects (depending on the Pre-Selector set-
ting) into Trim Enable mode. These parameters are “armed” and can be put
into trim (record).
ISOLATE: Isolates selected objects (depending on the Pre-Selector setting).
These objects will not be affected by the automation.
[2] Global Pre-Selectors for Control Modes (see also chapter 5.6.5.1).
Before globally any control mode (Read, Write Enable, Trim Enable and
Isolate) can activated, the Pre-Selectors for the desired objects must be ac-
tivated. These are:
FDR (Fader) – all Faders
MUTE – all Mutes
KNOB (Encoders) – all continuous controller type encoders (knobs or rota-
ries)
SWIT (Switches) – all switches
HELD (Held controls) – all controls that are currently in a “Held” state.
This can be any combination of faders, mutes, encoders and switches. Re-
fer to chapter 5.7.3.
CLR / ALL (Clear/All) – Permits the changing of all Pre-Selectors at once.
If one ore more pre-selectors are active, pressing CLR / ALL will clear all
pre-selectors.
If none of the pre-selectors are active, pressing CLR / ALL will activate all
pre-selectors.
If CLR / ALL and a global Mode (e.g. WRITE ENABLE) is pressed, will se-
lect all controls into Write Enable (this is like Pre-Selectors are bypassed).
[11][10]
[9]
[6]
[5]
[4]
[2]
[1]
[3]
[12]
[8]
[7]
