Studer D950 User Manual

D950 Digital Mixing System
Date printed: 03.09.03 SW V3.3 Desk Operation 3-69

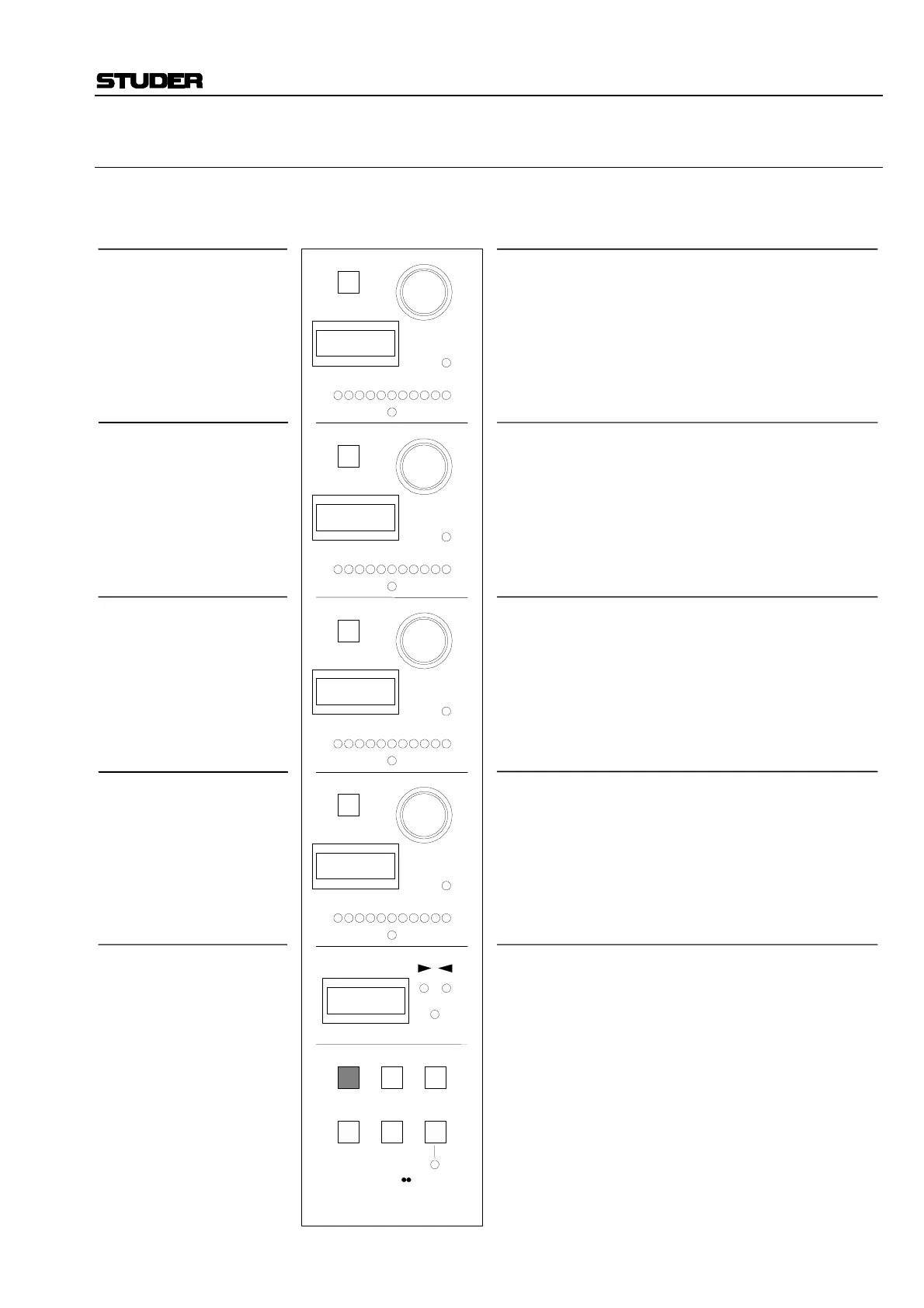

3.3.11.3 Insert Parameters on the LACP
Example:
Available operating elements and their function
Insert control parameters
INSERT ON/OFF
MIX ON/OFF
MIX RATIO
SW key
Rotary encoder
LED bar
Center LED
Display
=
=
=
=
=
Insert function ON/OFF
no function
no function
no function
ON / OFF
SW key
Rotary encoder
LED bar
Center LED
Display
=
=
=
=
=
Mix function ON/OFF
If touched, the display indicates ON or OFF
no function
no function
MIX; label of control parameter
SW key
Rotary encoder
LED bar
Center LED
Display
=
=
=
=
=
no function
Signal ratio setting; dry (insert send) signal: 0%,
wet (insert return) signal: 100%
Dot display, indicates mix ratio (dry: left, wet: right)
ON if 50% is set
MIX%; label of control parameter
0%; insert send signal only (dry)
100%; insert return signal only (wet)
Display
=
Indication of Insert selection
(Pages 2 to 4 not used)
not used
not used
AUTO
SW
1
AUTO
SW
2
AUTO
SW
3
AUTO
SW
4
n–1
TALK
2
1
LAST MODE
4
3
PAGE
FREEZE
INS
MIX%
MIX_
ON
