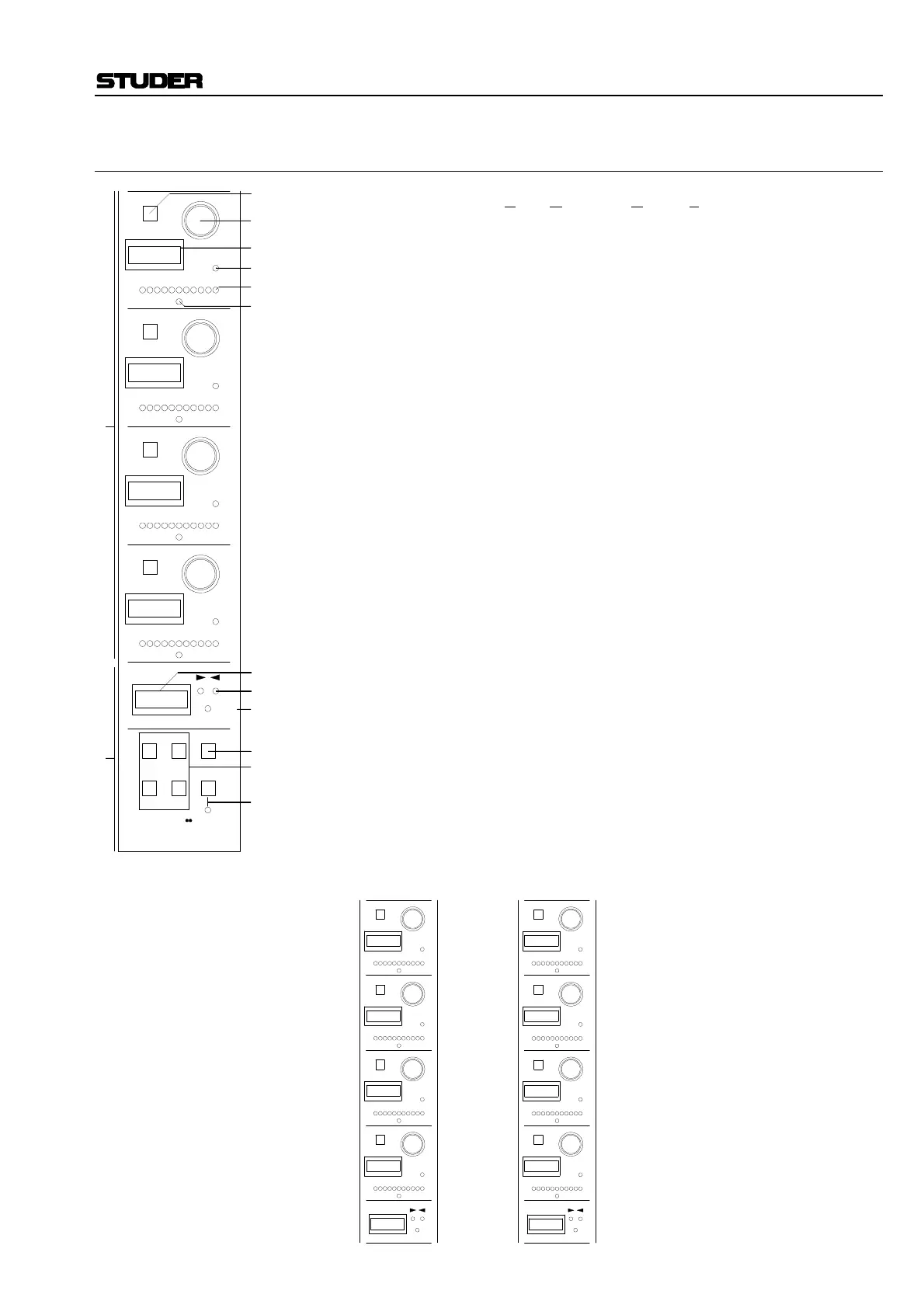

3.3.2 The LACP section
The LACP section (Local Assignable Control Panel) of a channel strip is
used to set or to adjust the parameters of the available processing func-
tions, such as “EQ”, “Filter”, “Dynamics”, etc.
The LACP consists of four identical Control Sections 1 through 4 [A], and
a common area for overall control and display [B].
Note: Because the D950 is fully configurable, the user may have programmed it
in such a way that not all functions are available to all channels. The dis-
plays will not light up if a function is unavailable on a particular channel.
Descriptions in this manual always assume that all functions are available.
[1] SW
The SW key is used to switch functions ON/OFF (for example, EQ HI on;
high- or low-pass filter, etc.), or to change a mode belonging to this section
(for example, PHASE, from in-phase to out-of-phase).
[2] Rotary encoder
The rotary encoder is used to adjust parameters, as with INPUT GAIN, or
to change a mode, for example, PHASE, from in-phase to out-of-phase.
The rotary encoder is touch sensitive.
If SHOW VALUES on the Master Menu Selector is not activated, touch-
ing or turning a rotary encoder will change the information in the four-
character display from parameter name to parameter value.
[3] Four-character alphanumeric display
• If SHOW VALUES on the Master Menu Selector (MMS) is not se-
lected, the display indicates the label of the available function within
the corresponding LACP section (e.g. PHAS = phase, GAIN = input
gain, etc.)
• If the corresponding rotary encoder has been touched or turned, the
display indicates the value (e.g. –40) or a selected mode (e.g. PH 1).
• If SHOW VALUES on the MMS is activated, the values or the mode
are displayed continuously.
AUTO
SW
1
AUTO
SW
2
AUTO
SW
3
AUTO
SW
4
n–1
TALK
21
LAST MODE43
PAGE
FREEZE
[8]
[B]
[A]
[7]
[10]
[12]
[11]
[9]
[5]
[4]
[2]
[1]
[3]
[6]
AUTO
SW
1
AUTO
SW
2
AUTO
SW
3
AUTO
SW
4
n–1
AUTO
SW
1
AUTO
SW
2
AUTO
SW
3
AUTO
SW
4
n–1
Example: Stereo channel (input control)
Display indicates the
parameter mode or value:
PHAS
MS
MODE
GAIN
IN 1
NORM
XY
ST
–10
IN 1
Display indicates the
parameter name:
