Studer D950 User Manual

D950 Digital Mixing System
Date printed: 03.09.03 SW V3.3 Desk Operation 3-45
E. Local Assignment with Auto Assign Modes "In and Out":
• Press AUTO ASSIGN MODES on the Master Menu Selector twice
(the AUTO ASSIGN MODES key and the ASN SEL keys on all the
channel strips are illuminated).
• Every time the FILT key on the channel strip is pressed (regardless of
what status it toggles to), the FILTER parameters are assigned to the
knobs on the LACP).
Notes: AUTO ASSIGN MODES and LINK ACCESS may be engaged at the same
time.

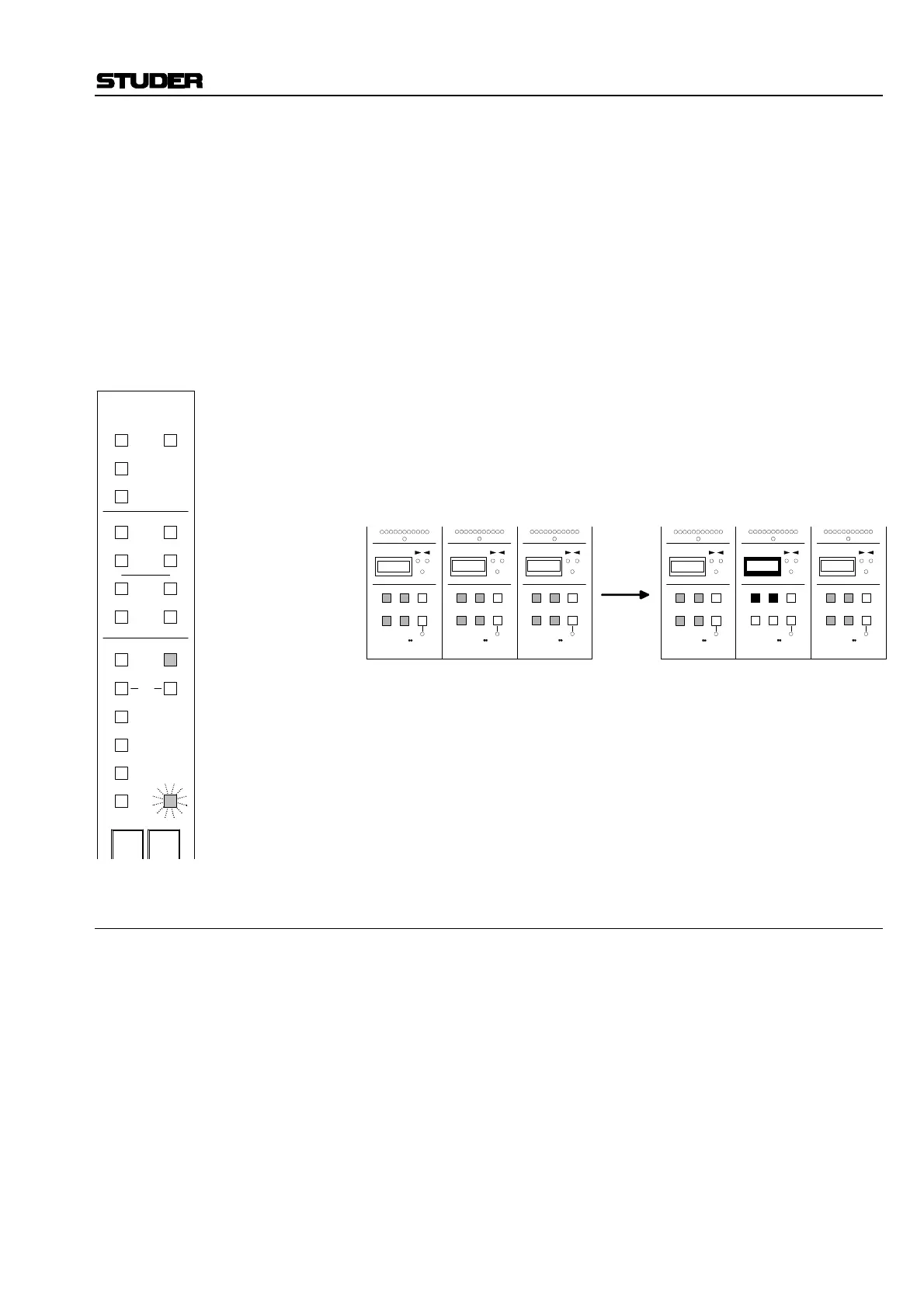

Example: Local Assignment
• Press ASN SEL on the channel strip; the ASN SEL key will flash. The
flashing ASN SEL key indicates Select Assignment Mode.
• Press FILT on the Channel Strip followed by one of the PAGE 1 or
PAGE 2 keys (or PAGE 3 for the notch filter, if configured) to control
the parameters of the required filter.
3.3.8.2 Filter Parameters
High- and Low-pass filters are available on PAGE 1 and 2 (PAGE 1 =
HPF, PAGE 2 = LPF, PAGE 3 = notch filter, if configured). Each filter has
three parameters: ON/OFF, slope, and frequency. The Notch filter has two
selectable Q values instead of adjustable slope.
ON/OFF: ON/OFF function for the selected filter (high- and low-pass, notch).
SLOPE: Filter slope (high- and low-pass filters), selectable from 12 dB/octave,
18 dB/octave, and 24 dB/octave, or
Q: The notch filter’s Q (if configured) is selectable from two fixed values; 2
and 10.
FREQUENCY: Cutoff frequency adjustment for both HP and LP filters, as well as the
notch frequency for the notch filter (if configured): 20 Hz through 20 kHz,
in 120 steps.
PAN
OPT
DLY
INS
CMP/
LIM
EQ
3
ON
1
ON
3
ON
1
ON
4
ON
2
ON
4
ON
2
ON
AUX
MONO
GEN
IN 2
IN 1
INPUT DIR OUT
ON
Input
Busses
Meters
Out
PROCESSING
FILT
EXP/
GTE
DYN
ASN
SEL
Processing
USER
1
USER
2
AUX
STEREO
n–1
TALK21
LAST MODE43
PAGE
FREEZE
n–1
TALK21
LAST MODE43
PAGE
FREEZE
n–1
TALK21
LAST MODE43
PAGE
FREEZE
n–1
TALK21
LAST MODE43
PAGE
FREEZE
n–1
TALK21
LAST MODE43
PAGE
FREEZE
n–1
TALK21
LAST MODE43
PAGE
FREEZE
EQHI EQHI EQHI EQHI HPF EQHI
