Studer D950 User Manual

D950 Digital Mixing System
Date printed: 03.09.03 SW V3.3 Desk Operation 3-25
3.3.4.4 Direct Output Parameters on the LACP
Example:

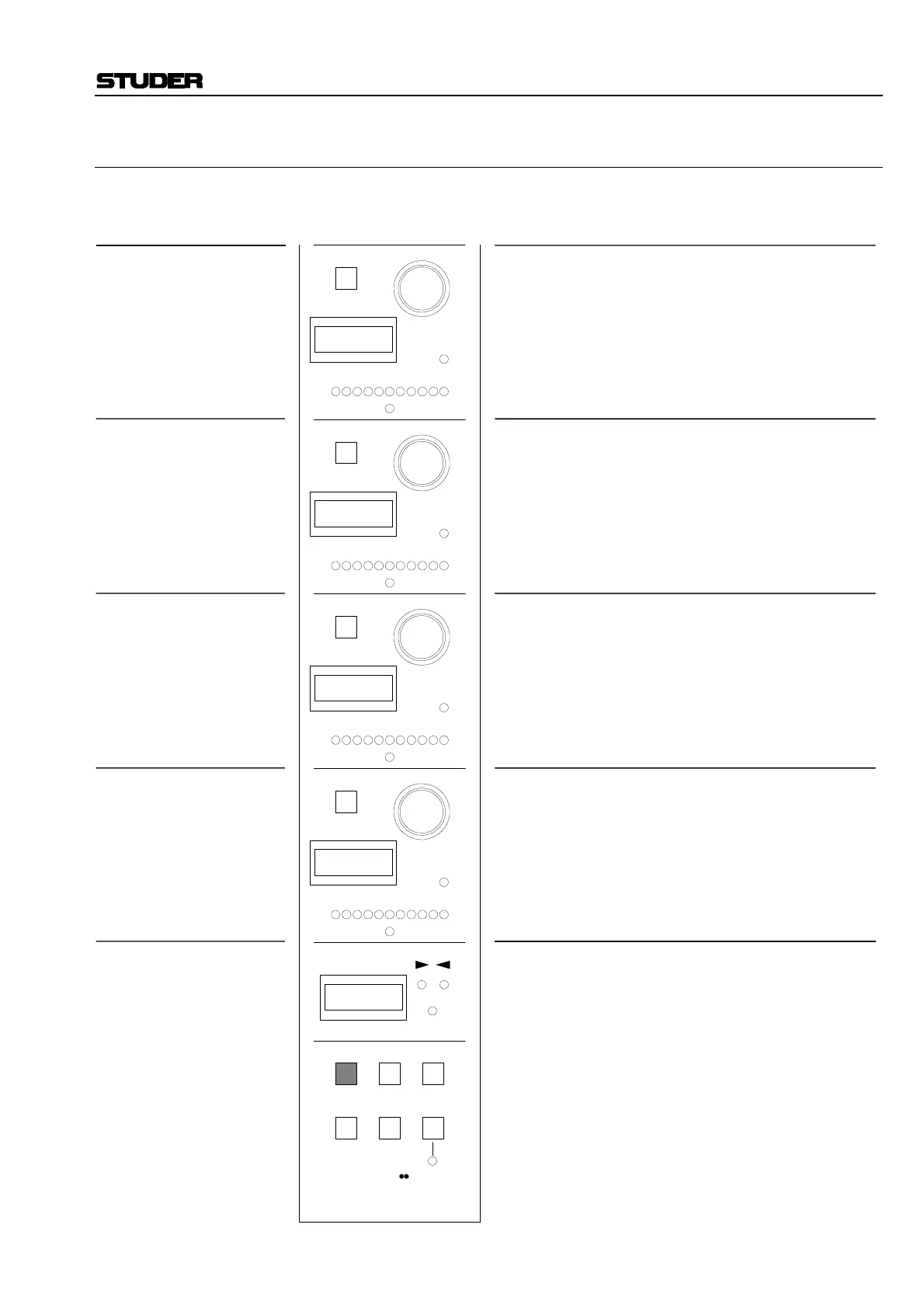

Available operating elements and their function
OUTP
LEVL
AUTO
SW
1
AUTO
SW
2
AUTO
SW
3
AUTO
SW
4
n–1
TALK
21
LAST MODE43
PAGE
FREEZE
Direct output control parameters
not used
not used
LEVEL
not used
STAT key
Rotary encoder
LED bar
Center LED
Display
=
=
=
=
=
Dir Out ON/OFF
Dir Out level
Bar display,
indicates current level
ON if level is set to 0 dB
LEVL; label of control parameter;
–20; indication of current level;
MUTE; indication of current level
SIGNAL TAP POINT
(not in V1.0)
not used
not used
Display = Indication of selected parameter
(Pages 2 to 4 not used)
