D950/Vista Digital Mixing System
Date printed: 05.08.03 SW V3.3 GC Operation 4-73
4.4.7.1.6 Meters

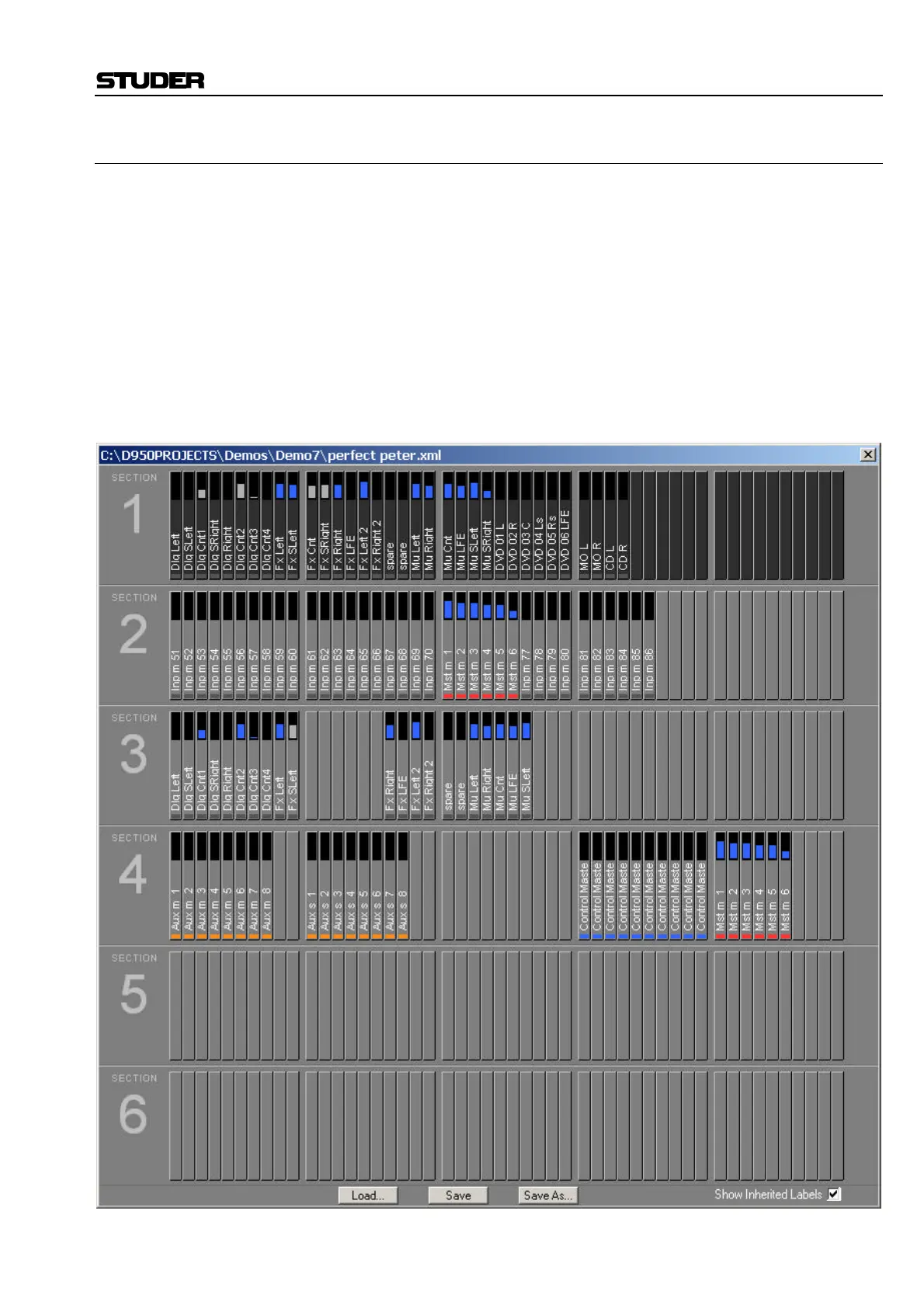

The Strip Setup page provides an excellent overview of the meter activity
of the channels on the virtual console.
Every channel displayed on the virtual console surface has a slow meter
which is a slow indication of signal activity at this channel’s input. Fur-
thermore, by use of color the user can identify whether the channel fader is
open and whether the channel is switched on. If the meter signal shown in
the Strip Setup window is blue, this means that the DSP channel has its
fader open and channel on. If the meter signal is gray, then the channel has
a signal associated with it, but either the channel fader is closed or the
channel is muted. If the meters are red, they are currently in Overload
status.
