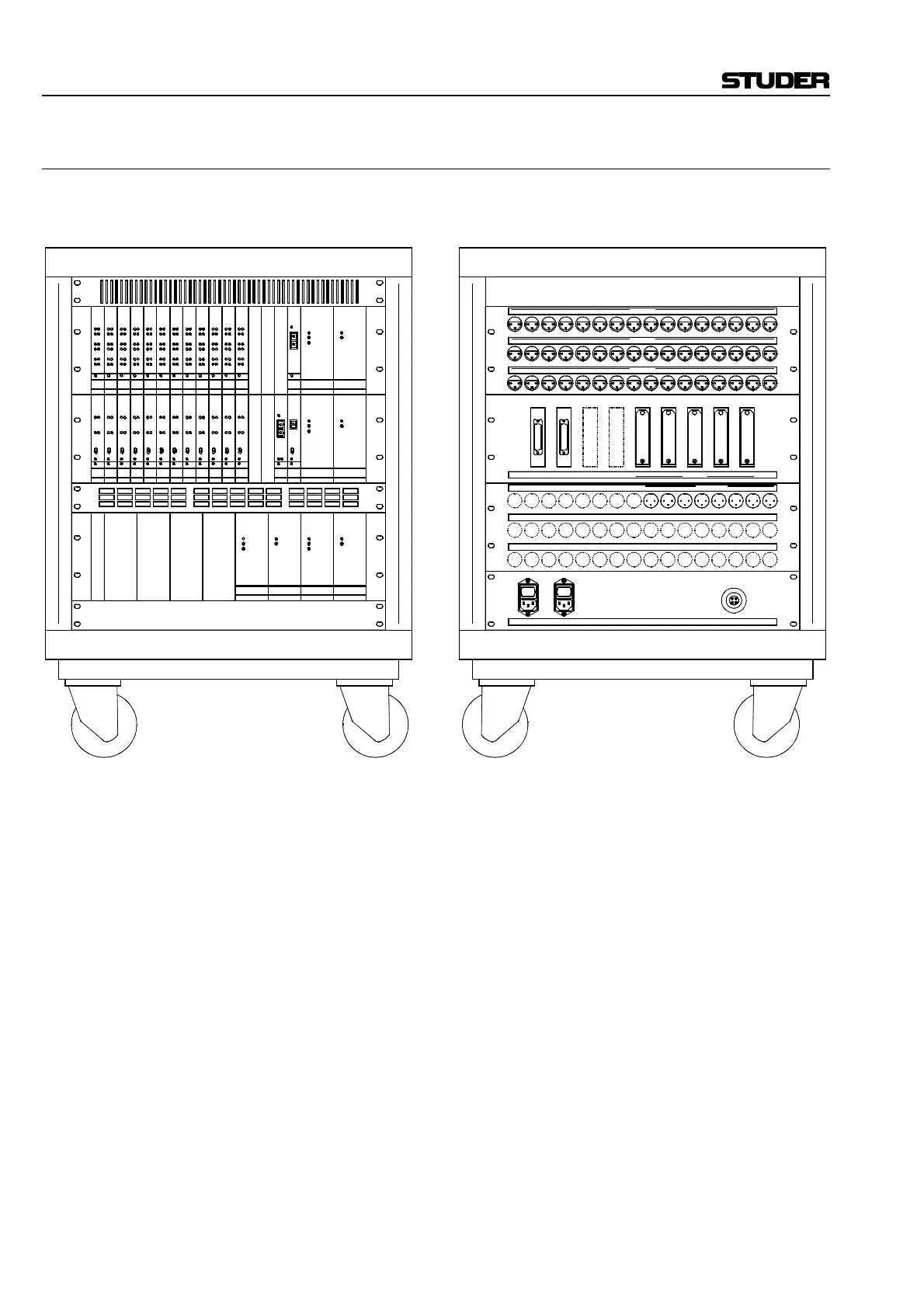

8.4.3 D19m Series Stagebox
(only one of the many possible variations shown)
A transportable stagebox can be ordered as an option for the system. It
typically consists of one or several Studer D19m frames in a flightcase.
The number of frames and cards is variable and is usually done to
customer specification. The following are some of the characteristics of
the Studer D950 Stagebox system:
• A D19m frame can hold input and output cards (mixed arrangement).
• The connection to the D950 is typically via a single, robust, four-core
optical fibre cable for MADI in/out, control receive/transmit signals, as
well as the sync. This cable can cover distances of up to several hundred
meters.
• The control signals are standard RS232/RS422 connections.
• A low-noise fan is required for large stageboxes.
• Optional redundant power supply is available (as shown in the example
above).
