2-40 Getting started SW V3.3 Date printed: 03.09.03

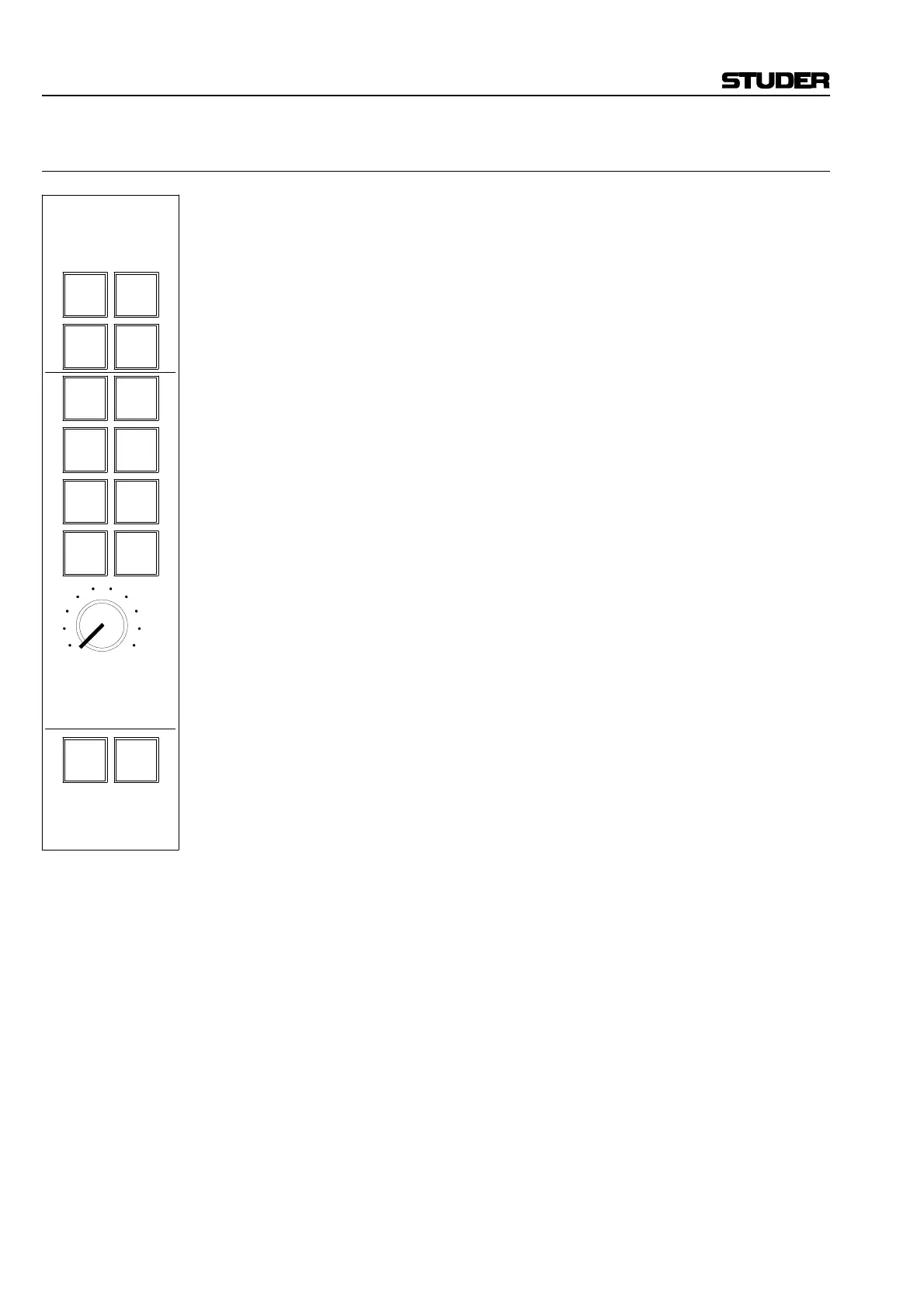

2.5.13 Studio Monitor Unit
The Studio Monitor Unit houses controls for the studio monitors, talkback
controls, and the studio signaling system. It is usually located within the
center section. Depending upon the studio configuration, a Studer D950
can be outfitted with one or several Studio Monitor Units, or none at all.
Dimensions: 40.6 mm × 190 mm (2U).
This unit offers the following functions:
SIGNAL (Signaling):
RED L. MAN., RED LIGHT
These keys provide red-light control (manual or automatic).
CALL
This key provides Call function with optical feedback.
READY
This key provides a switchable READY signal.
STUDIO MONITORing functions:
PFL/SOLO
This key routes the PFL/Solo signal to the studio monitors.
CR SEL
This routes the control room monitor input selection to the Studio Moni-
tors.
REIN
This key is used for the re-injection function that deactivates the automatic
muting.
CUT, DIM
These keys provide muting or 20 dB attenuation of the studio speakers.
LEVEL
This is the master Studio Monitor Level control.
STUDIO TALKBACK:
TB MON.
This key provides talkback to the studio monitor output.
TB SPKR
This key provides talkback to a separate output (for example, a studio
communication speaker, etc.)
STUDIO TALKBACK
LEVEL
STUDIO MONITOR
1
0 10
9
3
2
4
5
6
7
8
SIGNAL
SOLO
PFL/
CUT DIM
REIN
CALL READY
RED L.
MAN. LIGHT
RED
TB
MON.
TB
SPKR
SEL
CR
OUT 2
PF
OUT 2
CUT
REMOTE
LEVEL
