7.4.4 The Interface Page
The interface page allows viewing and editing of the audio interfacing to
the DSP core. It is important to assign enough audio input and output inter-
faces so that the configured system can work satisfactorily. There are eight
types of interfaces that can be edited here:
• AES/EBU Stereo inputs
• AES/EBU 2 Mono inputs
• AES/EBU Stereo outputs
• AES/EBU 2 Mono inputs
• MADI inputs
• MADI outputs
• D21m inputs
• D21m outputs
All those require a little DSP power and, obviously, the right DSP board
type and quantity. Only the direct-to-core interfaces are relevant for the
core load. Any mic preamps, A/D or D/A converters or other digital format
converters must be connected to the above four direct-to-core interface
types.

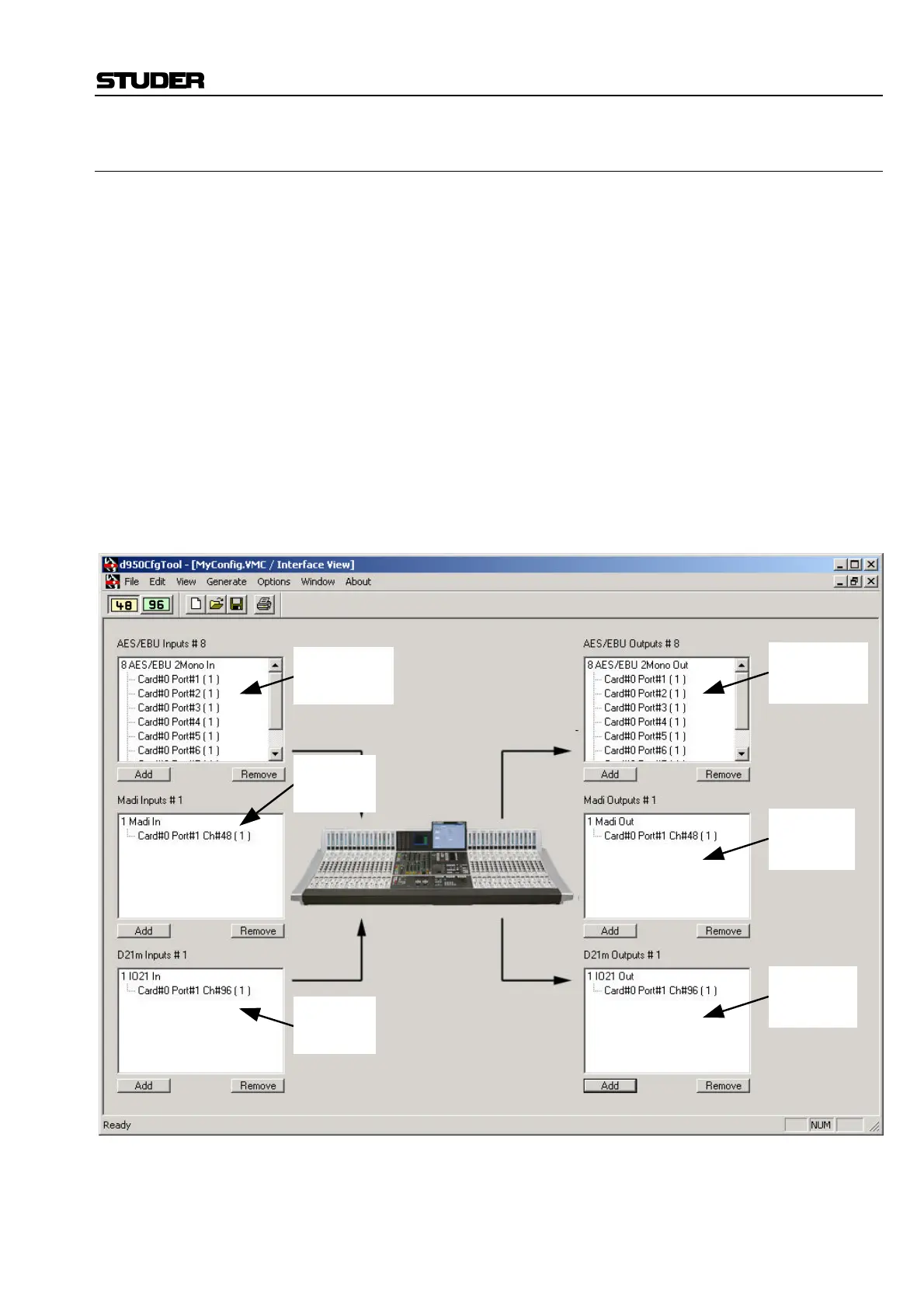

Show & Edit
AES/EBU out-
put interfaces
Show & Edit
AES/EBU input
interfaces
Show & Edit
MADI input
interfaces
Show & Edit
D21m input
interfaces
Show & Edit
MADI output
interfaces
Show & Edit
D21m output
interfaces
