3.3.13.4 Panning Parameters on the LACP
Example: Mono Channel Panning, Page 1

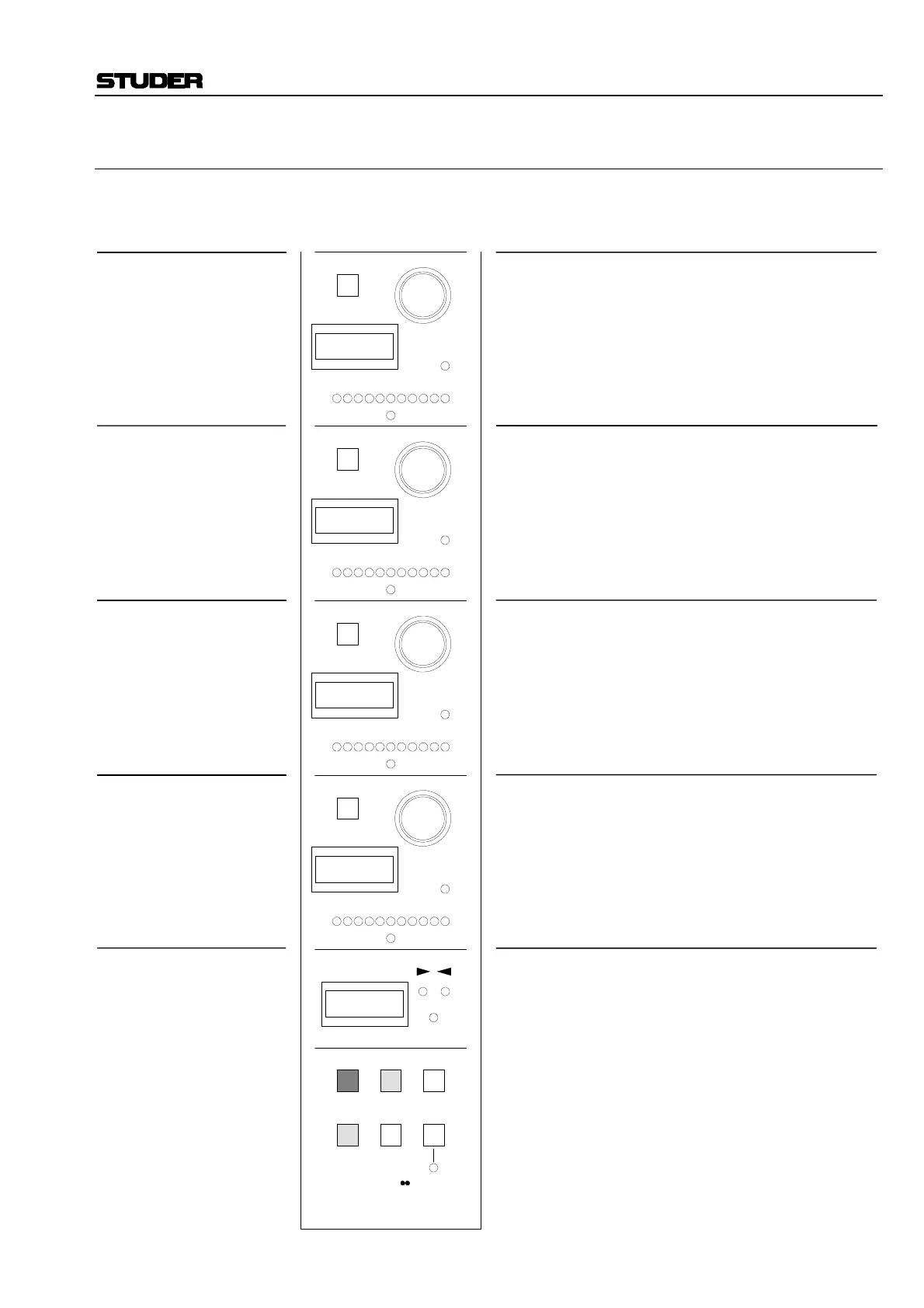

Available operating elements and their function
MPAN
2CH
AUTO
SW
1
AUTO
SW
2
AUTO
SW
3
AUTO
SW
4
n–1
TALK
21
LAST MODE43
PAGE
FREEZE
Mono 2-channel panning control parameters
Display
= Indication of panning selection (Page 1)
FEED indication (Page 2)
MODE indication (Page 3)
(Page 4 not used)
PAN
SW key
Rotary encoder
LED bar
Center LED
Display
=
=
=
=
=
PAN function ON/OFF
PAN setting
Dot display, indicates current panning setting
ON if PAN in center position
2CH; label of control parameter
L30_; fully left
L00R; center
_30R; fully right
not used
not used
not used
not used
not used
not used
