D950 Digital Mixing System
3-14 Desk Operation SW V3.3 Date printed: 03.09.03
3.3.3.1 Assigning the Input Section
A. Global Assignment (LACPs on all Channel strips are affected):
• Press INPUT on the Master Menu Selector.
The displays on all channel strips supporting the input parameters will
indicate the input control parameters, except those in FREEZE mode,
see chapter 3.3.2.
• Press one of the PAGE 1 through 4 keys on the MMS for global selec-
tion of the corresponding input parameters for the required input
source (PAGE 1 = IN1, PAGE 2 = IN2, PAGE 3 = GEN; PAGE 4 =
input control for pre-amplifier).
B. Local Assignment on the channel strip:
• Press ASN SEL, and the ASN SEL key will flash.
• Press any source selector key (IN1, IN2, or GEN).
ASN SEL + IN1: The INPUT 1 parameters will be displayed on the LACP
(= PAGE 1)
ASN SEL + IN2: The INPUT 2 parameters will be displayed on the LACP
(= PAGE 2)
ASN SEL + GEN: The GEN input parameters will be displayed on the
LACP (= PAGE 3).
C. Local Assignment affecting all channel strips:
• Press LINK ACCESS on the Master Menu Selector.
• Pressing a local assignment key will now affect all Channel Strips ex-
cept for those in FREEZE mode. The same functions as described in
“B” are available.
D. Local Assignment with Auto Assign Modes "In-Only":
• Press AUTO ASSIGN MODES on the Master Menu Selector once
(AUTO ASSIGN MODES is illuminated).
• Pressing a channel INPUT key on the channel strip will assign the IN-
PUT parameters to the LACP without pressing the ASN SEL key, pro-
vided the function toggles to an IN (or ON) status. If it toggles to an
OUT (or OFF) status, the knob status does not change.
E. Local Assignment with Auto Assign Modes "In and Out":
• Press AUTO ASSIGN MODES on the Master Menu Selector twice
(the AUTO ASSIGN MODES key and the ASN SEL keys on all the
channel strips are illuminated).
• Every time a channel INPUT key on the channel strip is pressed (re-
gardless of what status it toggles to), the INPUT parameters are as-
signed to the knobs on the LACP).
Note: AUTO ASSIGN MODES and LINK ACCESS may be engaged at the same
time.

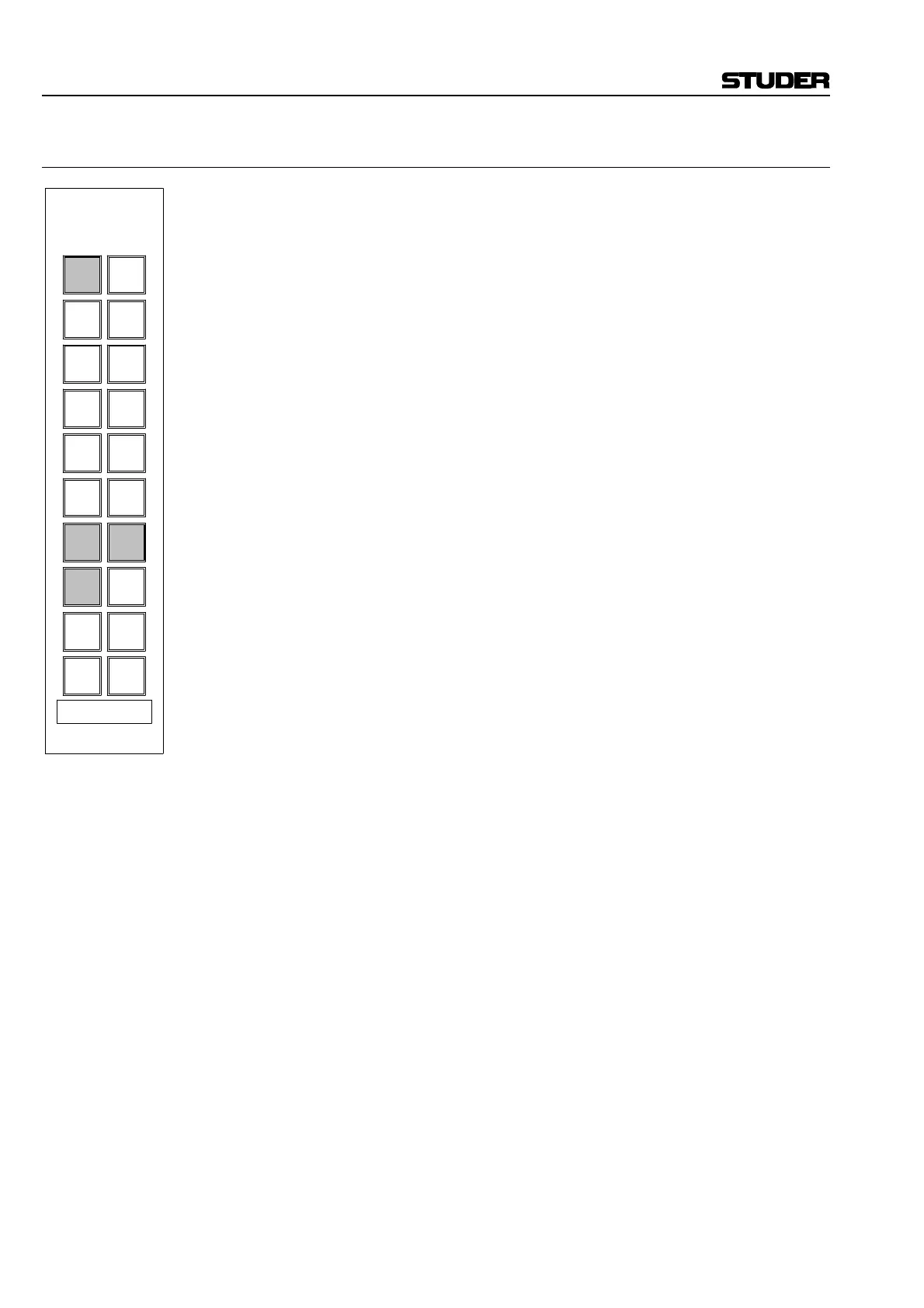

MENU
EQ2
INPUT
OUT/
N-1
EQ FILTER
COMP GATE
EXP/LIM/
INSERT DELAY
MONO
AUX
ADD.
AUX
STEREO
AUX
PAN
PAGE
1
PAGE
3
SHOW
VALUES
FREEZE
OFF
LINK
ACCESS
MODES
ASSIGN
AUTO
4
PAGE
PAGE
2
