D950 Digital Mixing System
Date printed: 03.09.03 SW V3.3 Getting started 2-37

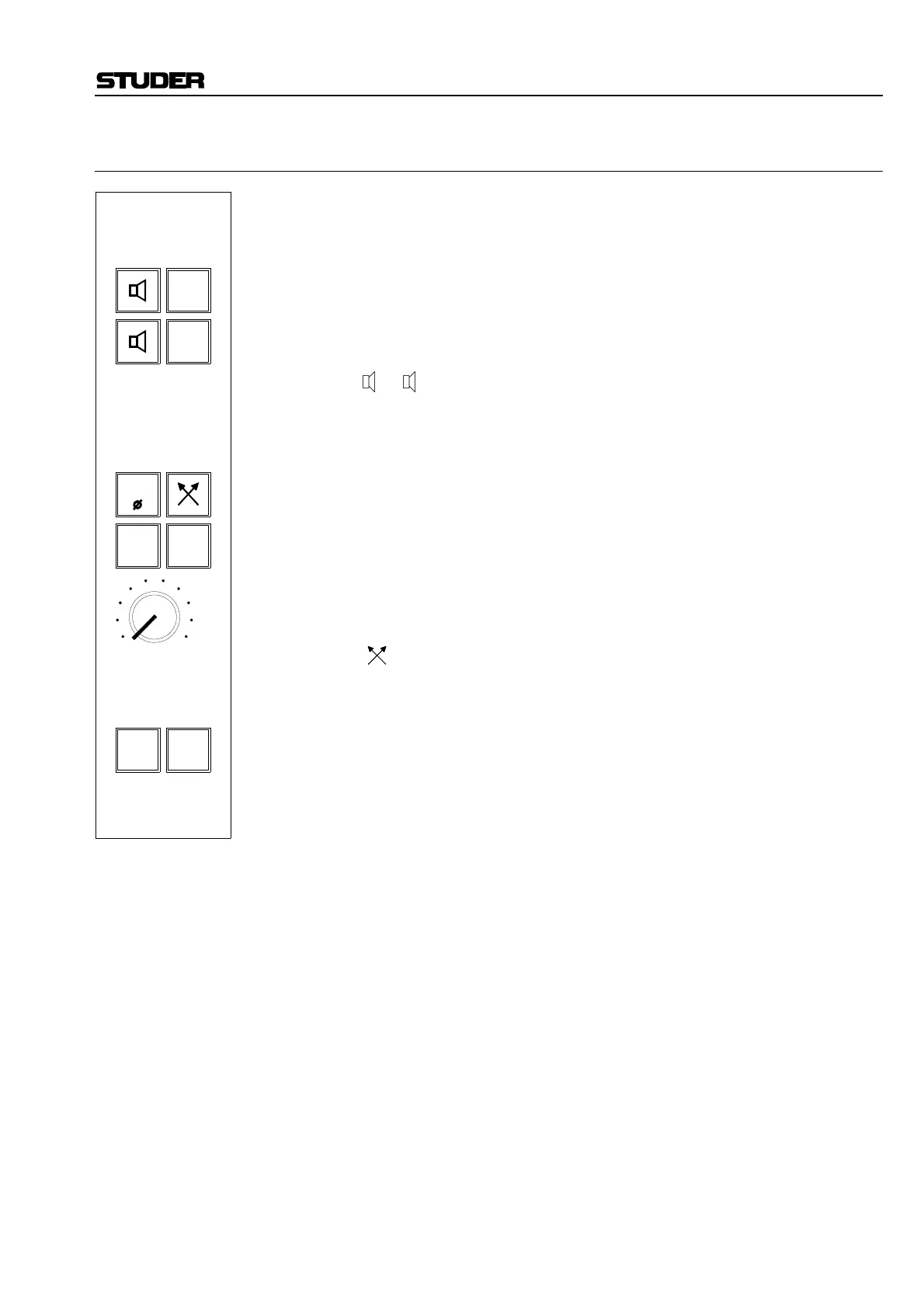

2.5.11 Control Room Monitor Unit
The Control Room Monitor Unit is used with the Studer D950B for stereo
applications. It features controls for adjusting the monitor signal selected
by means of 20-pushbutton source selectors, and is installed next to the
source selectors in the center section, usually within the upper part. All
monitoring outputs are electronically balanced.
Dimensions: 40.6 mm × 190 mm (2U).
This unit provides the following functions:
1, 2
These keys provide selection from two speaker pairs.
METER MON
This key routes the signal connected to the external meter input of the
monitoring rack to the level meter.
MON INSERT
This key allows a separate signal processor to be inserted into the monitor
signal path.
LEFT Ø
This key provides phase inversion for the left monitor channel.
X ((KRZPFL))
This key provides Channel flip L/R for just the monitor path.
DIM –20 dB
This key provides attenuation of the monitoring signal by 20 dB.
MONO
This key sums left and right channel signals and routes the result to both
monitor speakers.
CH 1 CUT (left)
CH 2 CUT (right)
These keys provide muting of the monitoring signal, separate for both
channels.
LEVEL
This key provides an MDAC level control for the monitoring level.
All monitoring outputs are electronically balanced.
LEVEL
CONTROL ROOM
MONITOR
0
1
10
9
2
3
4
5
6
7
8
MONO
METER
MON
INSERT
MON
DIM
–20dB
CH 1
CUT
CH 2
CUT
1
2
LEFT
