Studer D950 User Manual

D950 Digital Mixing System
3-30 Desk Operation SW V3.3 Date printed: 03.09.03

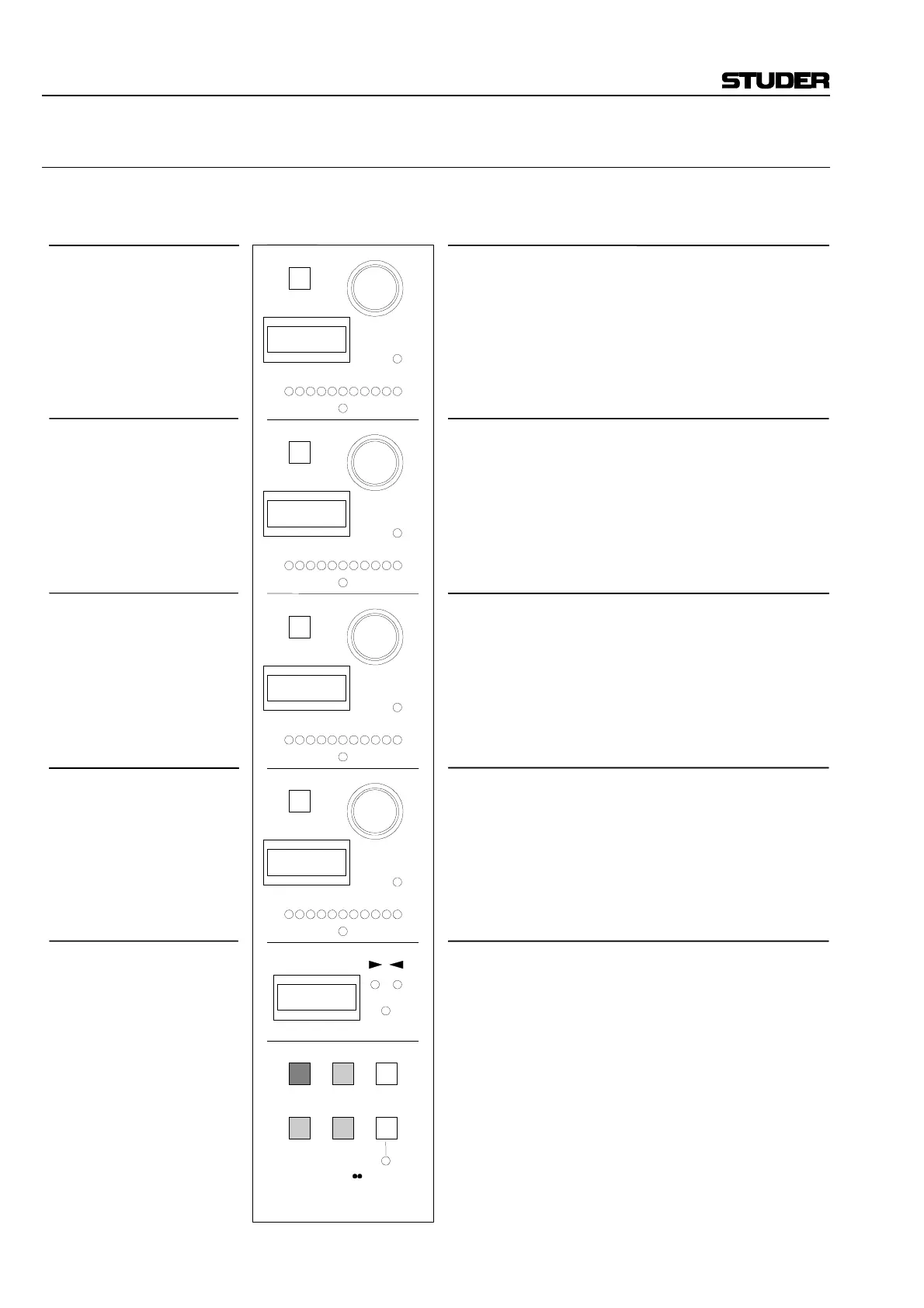

3.3.5.3 Mono AUX Parameters on the LACP
Example:
Available operating elements and their function
PHASE
Display
=
Indication of mono AUX bus selection
AM 1; mono AUX bus 1/2/3/4 (page 1)
AM 2; mono AUX bus 5/6/7/8 (page 2)
AM 3; mono AUX bus 9/10/11/12 (page 3)
AM 4; mono AUX bus 13/14/15/16 (page 4)
Mono AUX control parameter
AUX 3 / 7 / 11 / 15 SEND LEVEL
AUX 4 / 8 / 12 / 16 SEND LEVEL
SW key
Rotary encoder
LED bar
Center LED
Display
=
=
=
=
=
SW key
Rotary encoder
LED bar
Center LED
Display
=
=
=
=
=
AUX 1 / 5 / 9 / 13 SEND LEVEL
AUX 2 / 6 / 10 / 14 SEND LEVEL
SW key
Rotary encoder
LED bar
Center LED
Display
=
=
=
=
=
Pre-/post fader switchover
Mono AUX send level
Bar display, indicates AUX send level
On at 0 dB
AM 1/AM 5/AM 9/AM13; label of control parameter
– 20, indicates AUX send level (MUTE to +10 dB)
AUTO
SW
1
AUTO
SW
2
AUTO
SW
3
AUTO
SW
4
n–1
2
1
LAST MODE
4
3
PAGE
FREEZE
TALK
AM 1
AM 4
AM 3
AM 2
AM 1
SW key
Rotary encoder
LED bar
Center LED
Display
=
=
=
=
=
Pre-/post fader switchover
M
ono
AUX send level
Bar display, indicates AUX send level
On at 0 dB
AM 2/AM 6/AM10/AM14; label of control parameter
– 20, indicates AUX send level (MUTE to +10 dB)
Pre-/post fader switchover
Mono AUX send level
Bar display, indicates AUX send level
On at 0 dB
AM 3/AM 7/AM11/AM15; label of control parameter
– 20, indicates AUX send level (MUTE to +10 dB)
Pre-/post fader switchover
Mono AUX send level
Bar display, indicates AUX send level
On at 0 dB
AM 4/AM 8/AM12/AM16; label of control parameter
– 20, indicates AUX send level (MUTE to +10 dB)
