Studer D950 User Manual

D950 Digital Mixing System
Date printed: 03.09.03 SW V3.3 Desk Operation 3-93
3.3.13.6 Multi-format LCRS Panning Parameters on the LACP

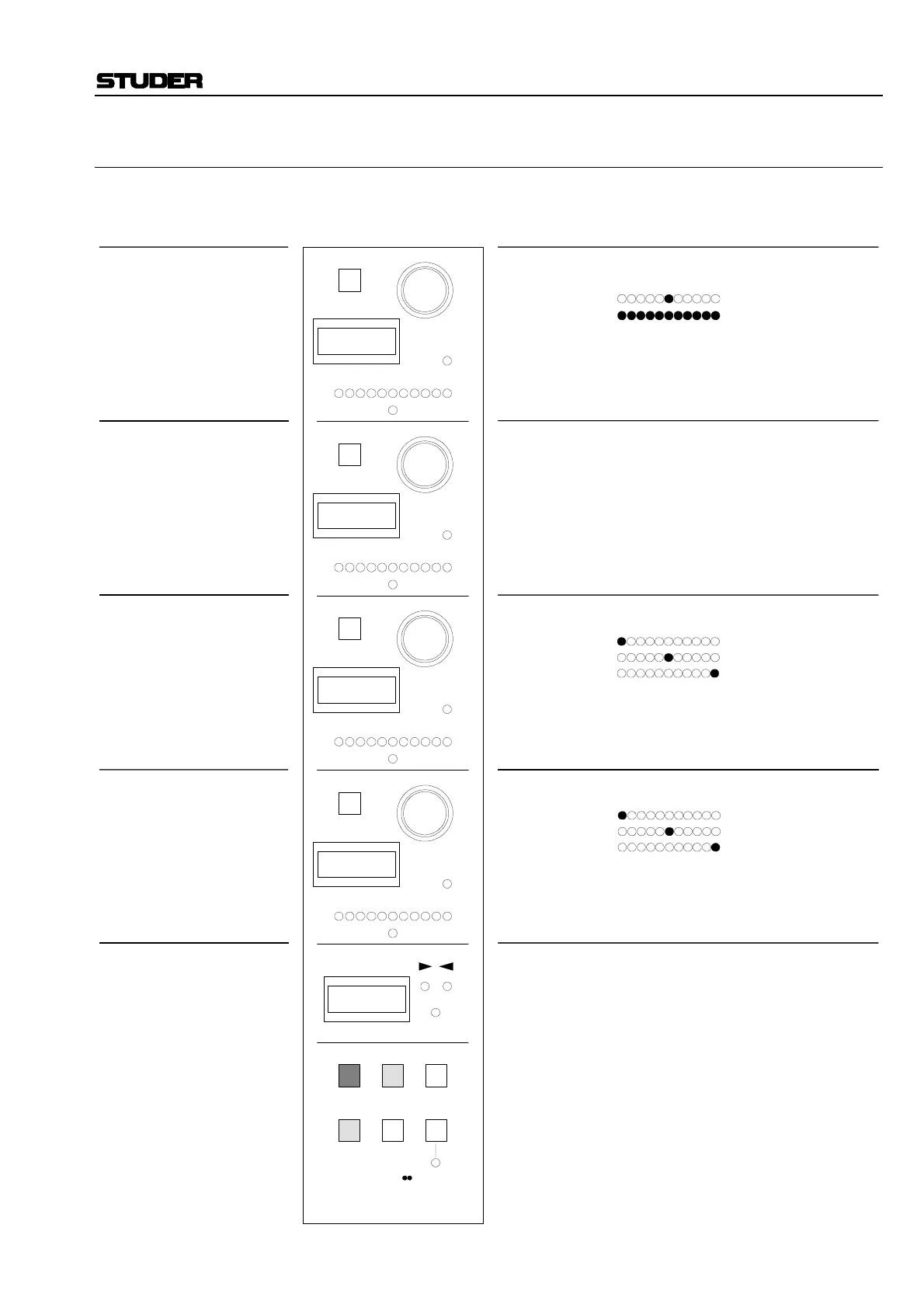

Example: Multi-Format LCRS Panning, Page 1
F/S panning function ON/OFF
F/S panning setting
fully front
middle between front and back
fully back (surround)
ON if F/S panning in middle position
F/S ; label of control parameter
_F30; fully front
__C_ ; center (middle) between front and back
_B30; fully back
SW key
Rotary encoder
LED bar
Center LED
Display
=
=
=
=
=
F/S PANNING
(FRONT/SURROUND)
SW key
Rotary encoder
LED bar
Center LED
Display
=
=
=
=
=
CENT function ON/OFF
0 to 100% setting (0% = phantom center)
Phantom center
Center fully active
no function
CENT; label of control parameter
0%; Phantom center
100%; Center fully active
Available operating elements and their function
MPAN
LCRS
F/S
CENT
AUTO
SW
1
AUTO
SW
2
AUTO
SW
3
AUTO
SW
4
n–1
TALK
2
1
LAST MODE
4
3
PAGE
FREEZE
Mono LCRS panning control parameters
Display
=
Indication of panning selection (Page 1)
FEED indication (Page 2)
MODE indication (Page 3)
(Page 4 not used)
SW key
Rotary encoder
LED bar
Center LED
Display
=
=
=
=
=
not used
not used
CENT
LCRS PANNING
LCRS panning function ON/OFF
LCRS panning setting
fully left
center
fully right
ON if LCRS panning in center position
LCRS; label of control parameter
L30_; fully left
__C_ ; center
_30R; fully right
