D950 Digital Mixing System
3-92 Desk Operation SW V3.3 Date printed: 03.09.03
Example: Multi-Format LCR Panning, Page 3

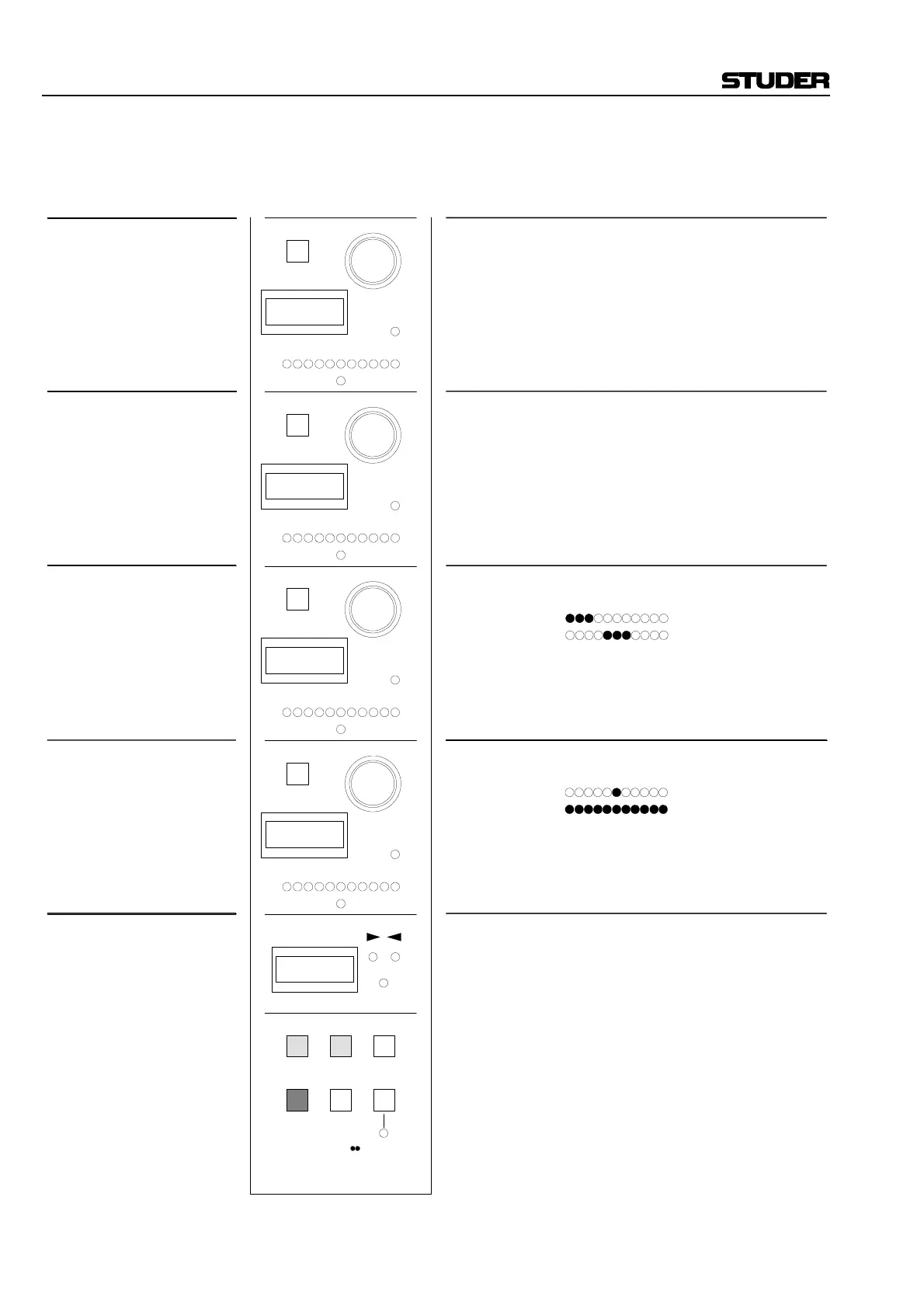

Available operating elements and their function
MODE
DIVM
DIVG
AUTO
SW
1
AUTO
SW
2
AUTO
SW
3
AUTO
SW
4
n–1
TALK
21
LAST MODE43
PAGE
FREEZE
Mono LCR panning control parameters
Display =
DIVG
not used
not used
DIVM
not used
not used
Indication of panning selection (Page 1)
FEED indication (Page 2)
MODE indication (Page 3)
(Page 4 not used)
SW key
Rotary encoder
LED bar
Center LED
Display
=
=
=
=
=
no function
Divergence setting 1% to 100%
Divergence setting 100%
Divergence setting 1%
no function
DIVG; label of control parameter
1% to 100%; Divergence setting
SW key
Rotary encoder
LED bar
Center LED
Display
=
=
=
=
=
Divergence mode FRNT/OFF
Divergence mode FRNT/OFF selection
Divergence OFF
Divergence FRNT
no function
DIVM; label of control parameter
OFF ; Divergence mode off
FRNT; Divergence mode for LCR front channels
