Studer D950 User Manual

D950 Digital Mixing System
2-42 Getting started SW V3.3 Date printed: 03.09.03
TB INT
1
SEND
0
8
9
5
RETURN
4
3
2
1
0
6
7
8
9
TALKBACK
5
BUS
3
2
4
TO:
DIRECT
6
7
5
LEVEL
PFL/SOLO
2
0
1
3
4
7
9
8
6
GROUPAUX
Σ
HEADPHONES
5
LEVEL/BALANCE
2
1
0
3
L
4
7
9
8
6
R
CR
INJ.
INTER
LOCK
SEL
SAFE
BROAD
30Hz
AUTO
TB
CUE
TB
PFL/
RET.
TB
INTERN
EXT. 1
TB
1
2
RET.
AIR
ON
PLACE
IN
SOLO
RESET
SOLO
PFL/
SEL
CR
SEL
STUDIO
SOLO
PFL/
CUT
LOCK
TB
EXT. 2 EXT. 3
OMNI
SOLO
PFL

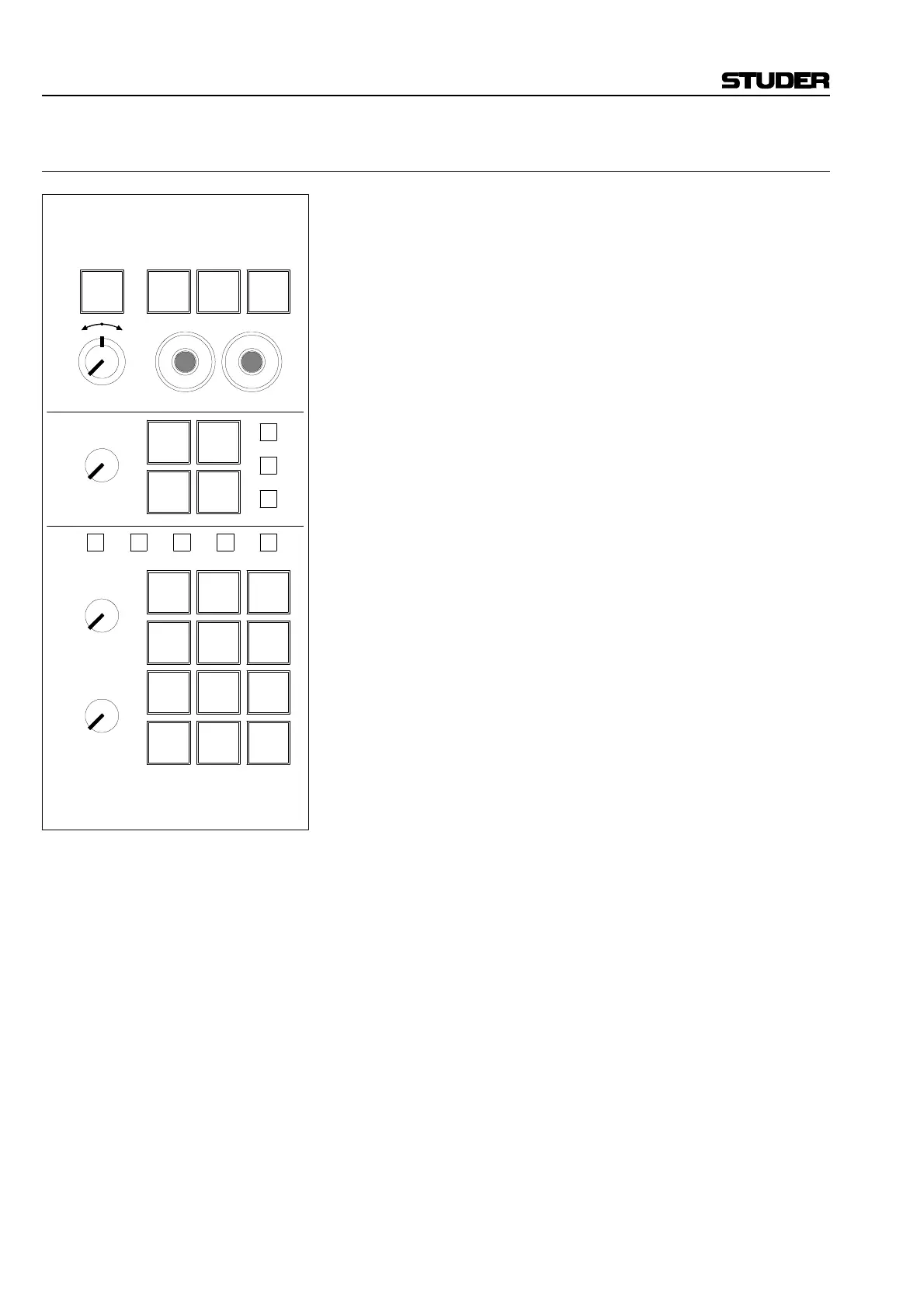

2.5.16 PFL, Talkback, Headphones
The PFL, Talkback, and Headphones unit houses all controls necessary
for central operation of the pre-listening, communication, and control
room headphones functions. This unit is located within the center
section. Dimensions: 80 mm × 190 mm (2U).
This unit offers the following functions:
HEADPHONES:
CR SEL, STUDIO SEL, PFL/SOLO
These keys provide source selection for the CR headphones.
LEVEL/BALANCE, CUT, jacks
Level and Balance control, muting key (CUT), and two 6.35 mm (¼”)
TRS jacks for headphones.
PFL/SOLO (Pre-listening functions):
SOLO
This key activates Solo Mode for the entire console.
SOLO IN PLACE
This key activates Solo-In-Place mode for the entire console. Channels
being not in SOLO mode, or which are not solo-protected (SOLO
SAFE), will be muted.
PFL
This key activates PFL mode for the entire console.
PFL/SOLO RESET
This key indicates the PFL/SOLO or SOLO-IN-Place mode (illuminated
if active), and is used to cancel the mode on a global basis.
SAFE SEL
This is a programming key for the SOLO SAFE function. Pressing CH
SEL keys while the SAFE SEL key is illuminated will place the selected
channels in the solo-protected mode. This will disable muting of these
channels when other channels are soloed (very handy for effect returns).
INTERLOCK
This key allows several channel PFL/SOLO keys to be active simulta-
neously.
CR INJ.
This key routes the PFL and SOLO signals to the CR monitor speakers.
