Studer D950 User Manual

D950 Digital Mixing System
3-66 Desk Operation SW V3.3 Date printed: 03.09.03

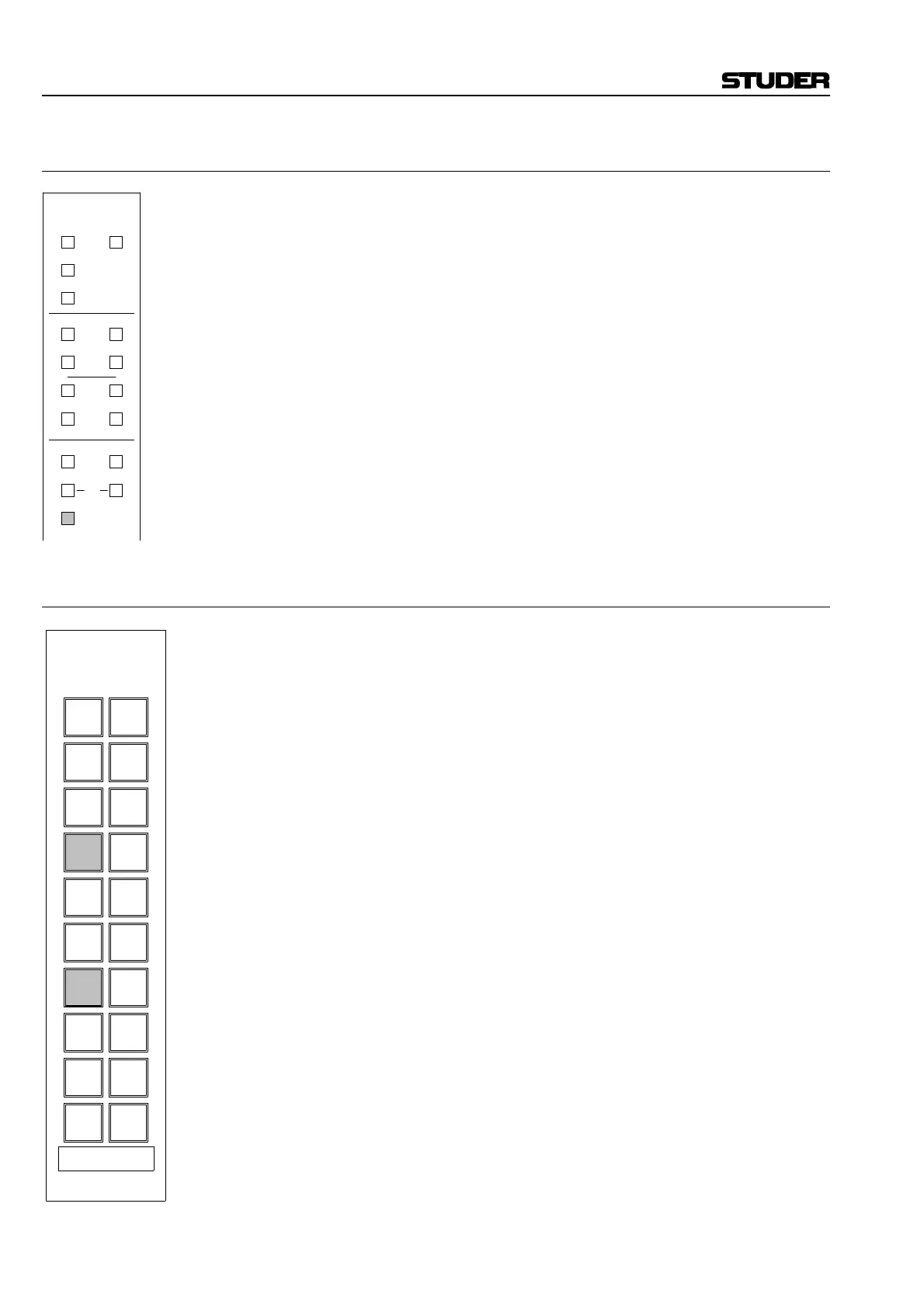

3.3.11 Insert Section
Insert points are available for all channels. Adjustable parameters are:
• INS ON/OFF (same function as the INS key on the Channel Strip),
• MIX function ON/OFF,
• MIX percentage level setting (send-to-return ratio).
Note: Pressing the INS key can interrupt the signal path if no signal is connected
to the Insert Return.
3.3.11.1 Assigning the Insert Section
A. Global Assignment:
• Press INSERT on the Master Menu Selector.
The displays of all Channel Strips will switch over and indicate the in-
sert control parameters, except those in FREEZE mode; see chapter
3.3.2.
• PAGE 1 is the only page available.
B. Local Assignment on the Channel Strip:
• Press ASN SEL; the ASN SEL key will flash.
• Press the INS key. The Insert parameters will be displayed on the
LACP
(= PAGE 1 only)
C. Local Assignment affecting all channel strips:
• Press LINK ACCESS on the Master Menu Selector.
• Pressing a local assignment key will now affect all Channel Strips. The
same functions as described in “B” are available.
D. Local Assignment with Auto Assign Modes "In-Only":
• Press AUTO ASSIGN MODES on the Master Menu Selector once
(AUTO ASSIGN MODES is illuminated).
• Pressing the INS key on the channel strip will assign the Insert pa-
rameters to the LACP without pressing the ASN SEL key, provided
the function toggles to an IN (or ON) status. If it toggles to an OUT (or
OFF) status, the knob status does not change.
INS
CMP/
LIM
EQ
3
ON
1
ON
3
ON
1
ON
4
ON
2
ON
4
ON
2
ON
AUX
MONO
GEN
IN 2
IN 1
INPUT DIR OUT
ON
Input
Busses
Meters
Out
PROCESSING
FILT
EXP/
GTE
DYN
AUX
STEREO
MENU
EQ2
INPUT
OUT/
N-1
EQ FILTER
COMP GATE
EXP/LIM/
INSERT DELAY
MONO
AUX
ADD.
AUX
STEREO
AUX
PAN
PAGE
1
PAGE
3
SHOW
VALUES
FREEZE
OFF
LINK
ACCESS
MODES
ASSIGN
AUTO
4
PAGE
PAGE
2
