5.6.6 Control Mode Indicators (D950)
Control Mode Display: Control modes are displayed on the D950 desk on the channel strips and
the CAS in the following manner:

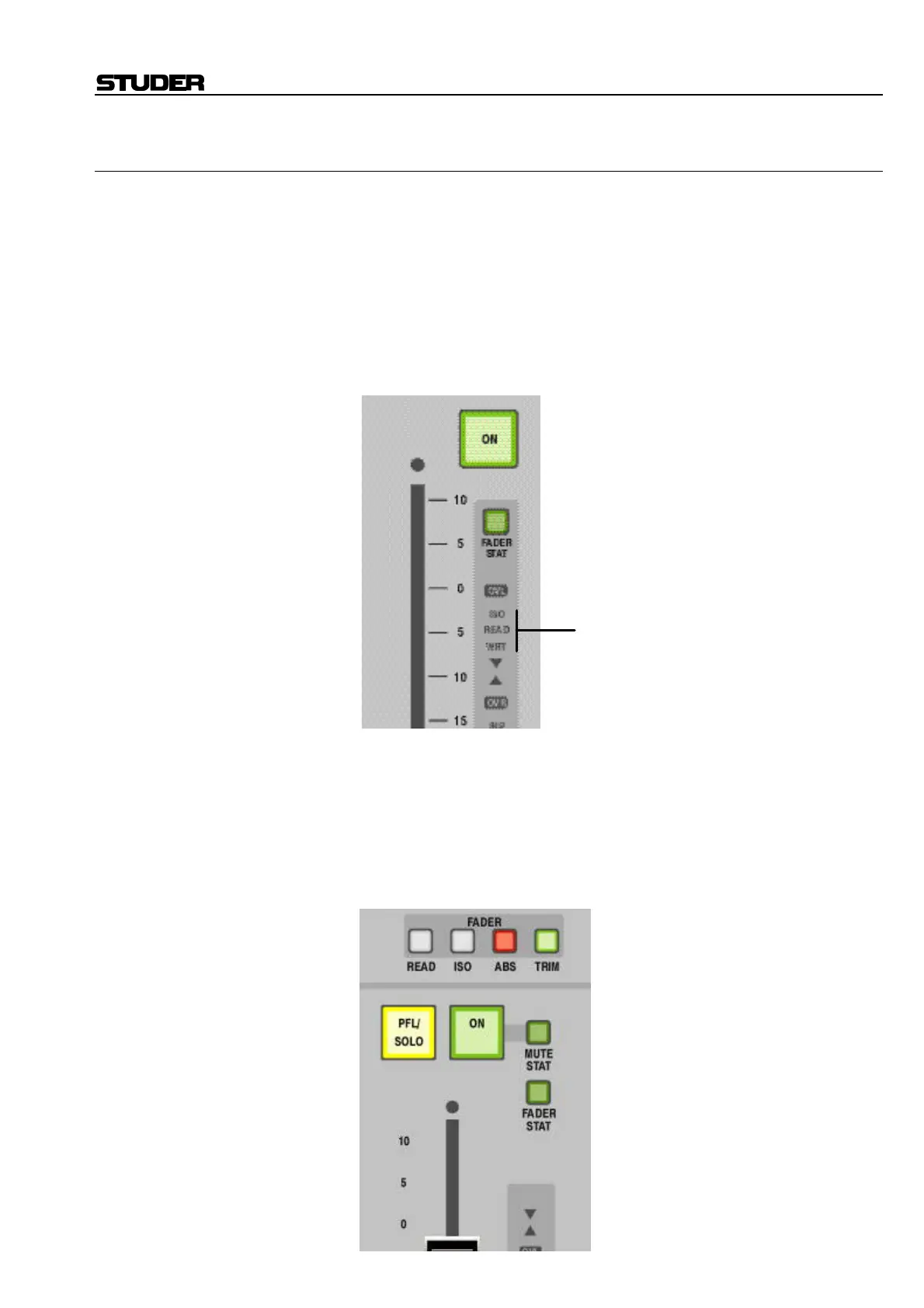

Fader: Channel Strip:
• READ: READ is lit next to the fader
• WRITE ENABLE: WRT is lit next to the fader. The FADER STAT key
lights (flashes when in RECORD).
• TRIM ENABLE: READ and WRT are lit next to the fader strip. The
FADER STAT key lights (flashes when in RECORD).
• ISOLATE: ISO is lit next to the fader strip.
CAS:
• READ: The FADER READ Control Mode Activator is lit.
• WRITE ENABLE: The FADER ABS Control Mode Activator is lit. The
FADER STAT key lights (flashes when in RECORD).
• TRIM ENABLE: The FADER TRIM Control Mode Activator is lit. The
FADER STAT key lights (flashes when in RECORD).
• ISOLATE: The FADER ISO Control Mode Activator is lit.
Displays for Fader Automation
Enable Status:
ISO = Isolate
READ = Read
WRT = Absolute Enable
WRT + READ = Trim Enable
