Studer D950 User Manual

D950 Digital Mixing System
Date printed: 03.09.03 SW V3.3 Desk Operation 3-39

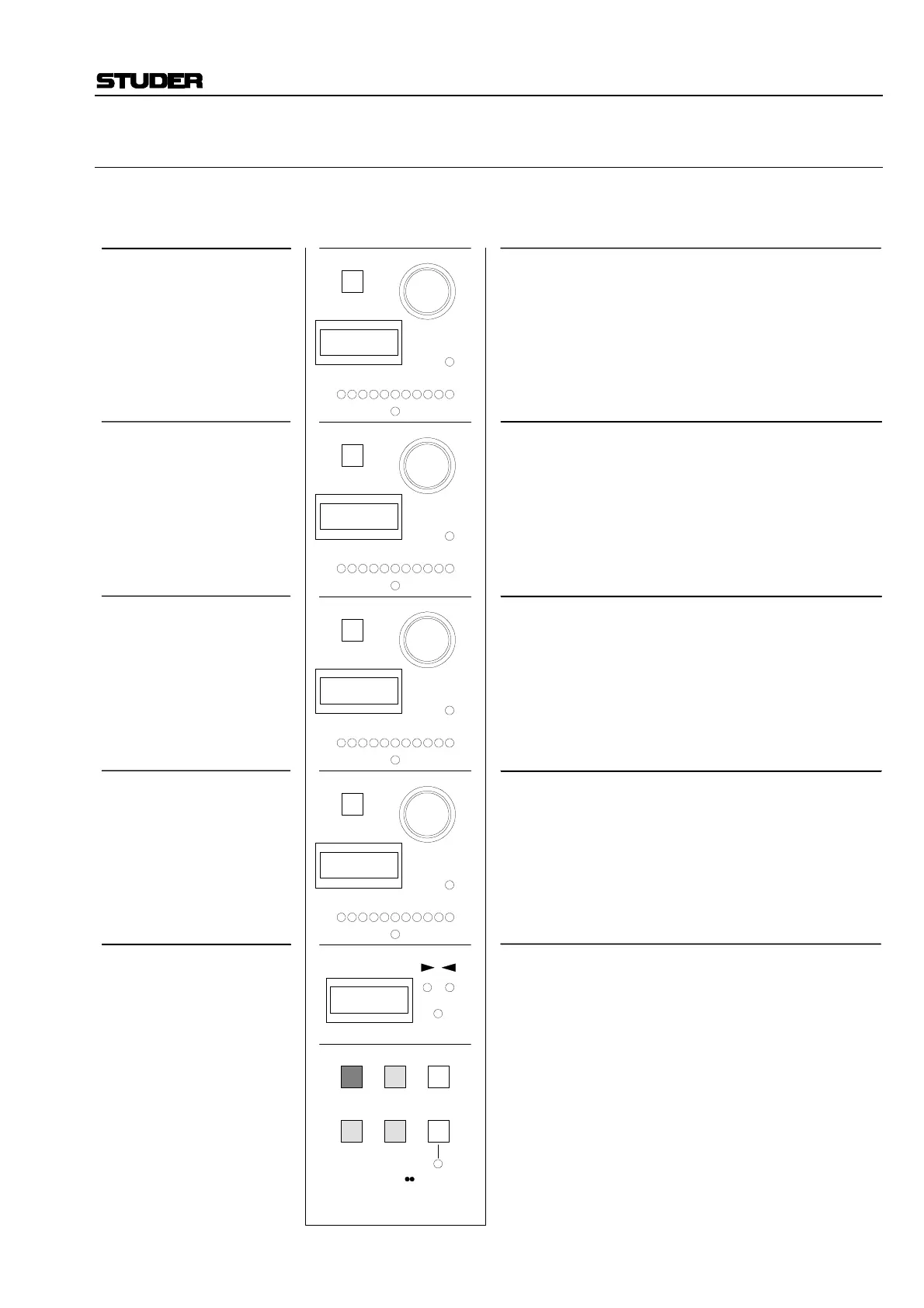

3.3.7.3 EQ1 Mode Parameters on the LACP
Example EQ1 Mode:
Available operating elements and their function
PHASE
Display = Indication of EQ selection
EQHI; high frequency band (page 1)
EQHM; high/mid frequency band (page 2)
EQLM; low/mid frequency band (page 3)
EQLO; low frequency band (page 4)
EQ1 mode control parameter
EQ BAND ON/OFF
Q/FILTER TYPE
SW key
Rotary encoder
LED bar
Center LED
Display
=
=
=
=
=
Band ON/OFF (key is illuminated when ON)
no function
no function
no function
OFF: band off
ON: band on
AUTO
SW
1
AUTO
SW
2
AUTO
SW
3
AUTO
SW
4
n–1
TALK21
LAST MODE43
PAGE
FREEZE
EQHI
FREQ
GAIN
BELL
_OFF
SW key
Rotary encoder
LED bar
Center LED
Display
=
=
=
=
=
Selects SHELVE/BELL or ConQ/ConR
Selects SHELVE/BELL or ConQ/ConR
Dot display, indicates Q
no function
SHLV; shelving filter (for EQHI and EQLO only)
BELL; bell filter (for EQHI and EQLO only)
ConQ; constant-Q (for EQHM and EQLM only)
ConR; constant-range (for EQHM and EQLM only)
Q0.2; Q value indication
GAIN
SW key
Rotary encoder
LED bar
Center LED
Display
=
=
=
=
=
no function
EQ gain adjustment
Dot display, indicates gain setting
On if gain = 0 dB (no boost/cut)
GAIN; label of control parameter
–13. ; gain = –13.5 dB (i.e. cut)
6.5 ; gain = +6.5 dB (i.e. boost)
FREQUENCY SW key
Rotary encoder
LED bar
Center LED
Display
=
=
=
=
=
no function
Frequency adjustment
Dot display, indicates frequency setting
no function
FREQ; label of control parameter
141; frequency in Hz
2k51; frequency in kHz
