7.4.7.6 The Generate Menu
Detailed This menu opens up an interactive dialog box that allows to start step-by-
step manual Load Balancing and generation of the DSP core file. It allows
the expert user to see more details of the current configuration as if Gener-
ate/All would be used.
I For Specialists Only! It is not necessary to go to this menu item to do the whole generate proc-
ess. The main reason for looking at this page is to see the load distribution
to various DSP boards and individual PE processors. There is a lot of other
information here that does not mean much to the “ordinary humans” (uhm,
sorry, ordinary humans).
This menu becomes available when you are in the expert mode. The expert
mode is activated by double-clicking the right trackball button with the
trackball pointer on the “About” dialog while holding the Ctrl/Shift keys.
If a Generate process has already been done, the “CORE” area will show
the results of load balancing and distribution of the load to DSP boards.
Click on one of the buttons to see the load distribution on one DSP board
in detail. If the Generate process has not yet been done, the “CORE” area
is empty.
To do the Generate process from here, all seven boxes in the “VMC” area
have to be clicked in turn, always waiting for the result of the previous ac-
tion to appear before the next box is clicked. The order of the individual
processes is as follows:

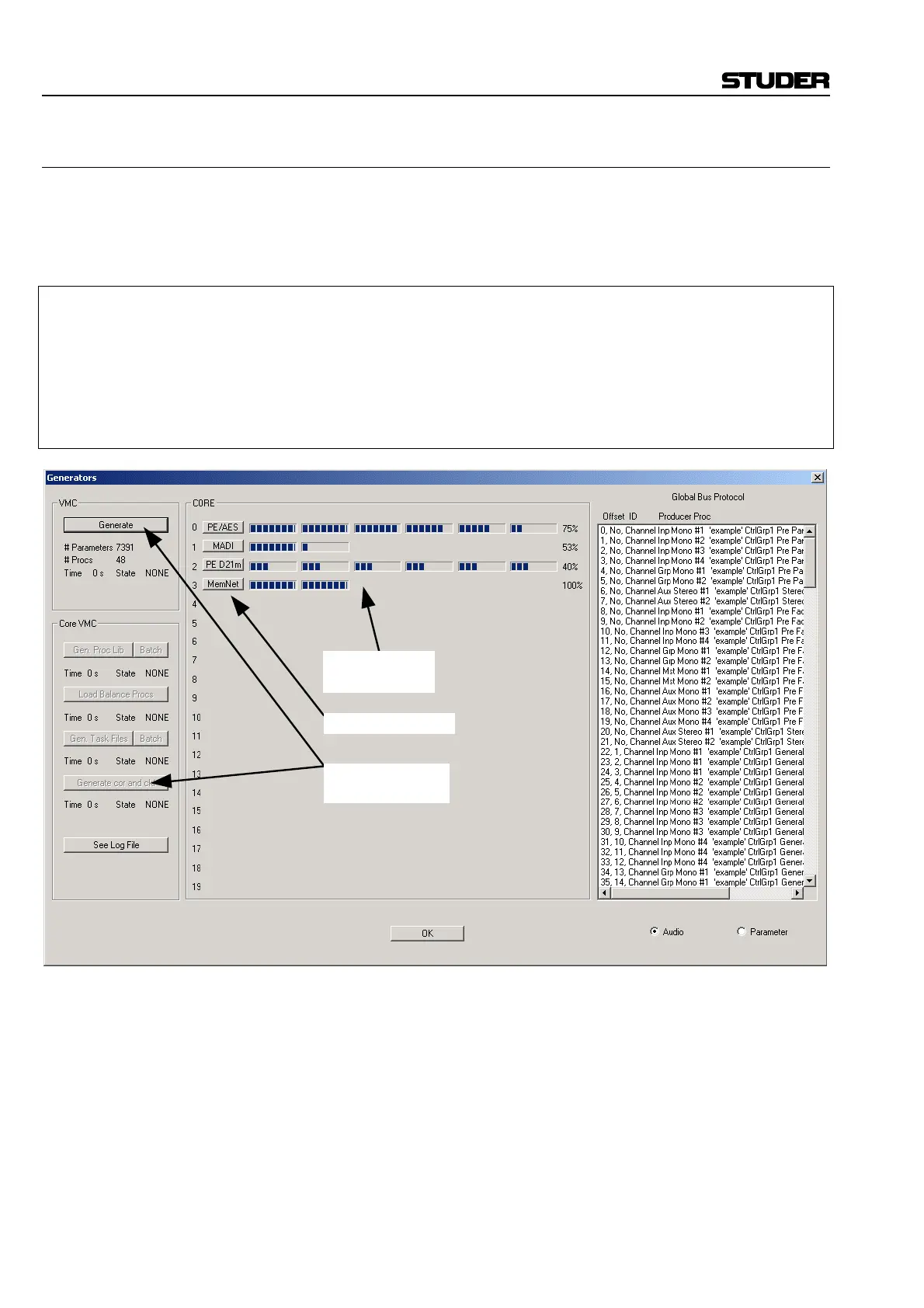

Shows results of
Load Balancing
Step-by-Step
Core file Generator
To Next Page
