3.3.9.3 Limiter/Compressor Parameters on the LACP

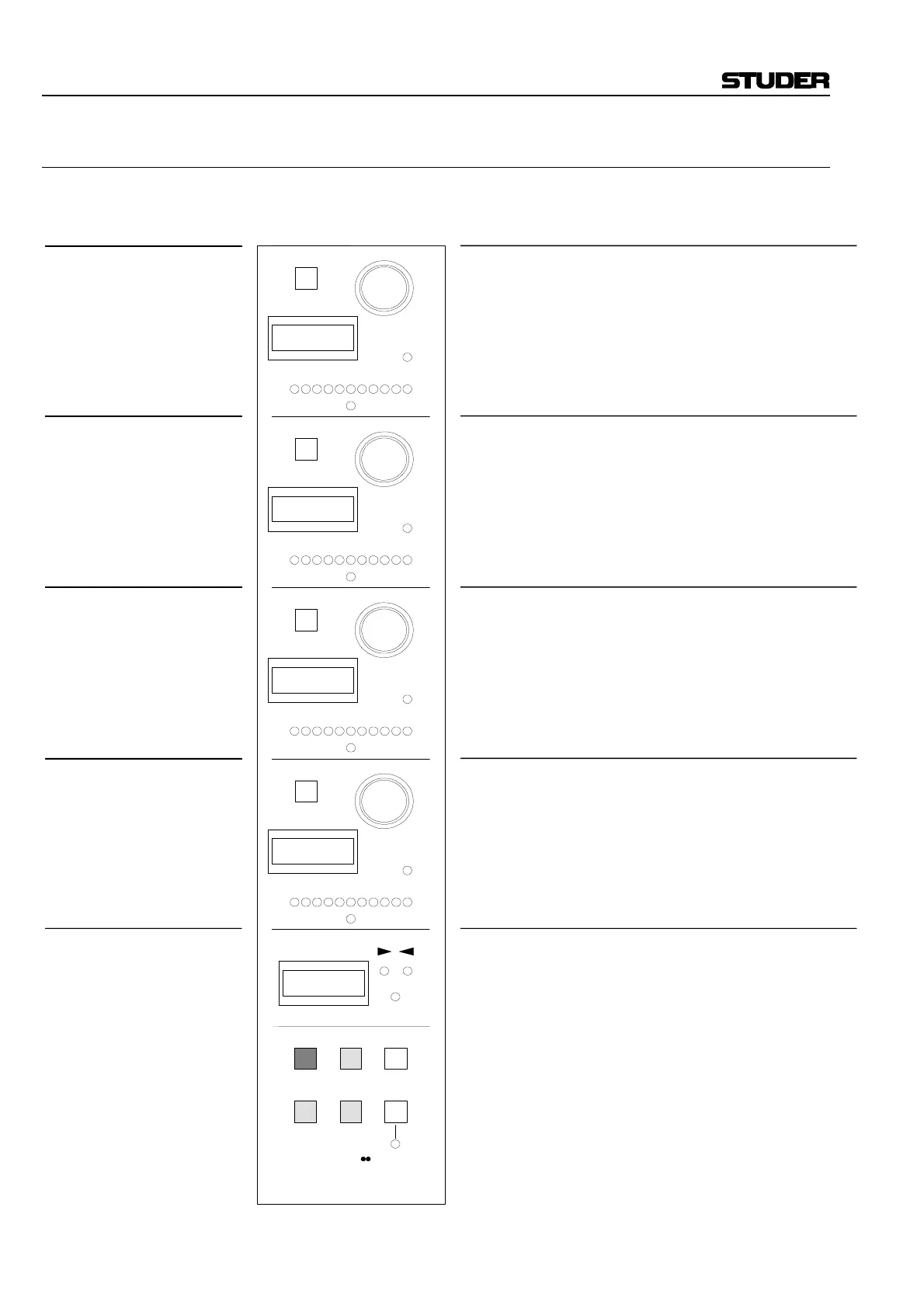

Example 1 (PAGE 1, LIM):
Available operating elements and their function
Dynamics control parameter (Limiter/Compressor)
ATTACK TIME
RELEASE TIME/HOLD
THRESHOLD
SW key
Rotary encoder
LED bar
Center LED
Display
=
=
=
=
=
no function
Attack time adjustment; 0.2 to 1 ms
Dot display, indicates adjusted attack time
no function
ATCK; label of control parameter
0.5; attack time set to 0.5 ms
SW key
Rotary encoder
LED bar
Center LED
Display
=
=
=
=
=
HOLD function ON/OFF; ON = 150 ms / OFF = 0 ms
Release time adjustment; 10 ms to 10 s
Dot display, indicates adjusted release time
no function
RLSE; label of control parameter
100m; release time set to 100 ms
1s; release time set to 1 s
SW key
Rotary encoder
LED bar
Center LED
Display
=
=
=
=
=
no function
Threshold adjustment; 0 to –48 dBFS in 1 dB steps
Bar display, indicates threshold
Full bar = 0, empty bar = –48 dB
Is ON if threshold is set to 0 dBFS
THRS; label of control parameter
–
24; indicates threshold
value –24 dBFS
Display
=
Indication of Limiter/Compressor selection
LIM; limiter parameters (page 1)
COMP; compressor parameters (page 2)
CLVL; level/gain parameters (page 3)
KEY; common parameters for limiter and
compressor (page 4)
LIMITER ON/OFF
SW key
Rotary encoder
LED bar
Center LED
Display
=
=
=
=
=
Limiter ON/OFF
no function
no function
no function
ON/OFF
AUTO
SW
1
AUTO
SW
2
AUTO
SW
3
AUTO
SW
4
n–1
TALK
2
1
LAST MODE
4
3
PAGE
FREEZE
LIM
THRS
RLSE
ATCK
ON
